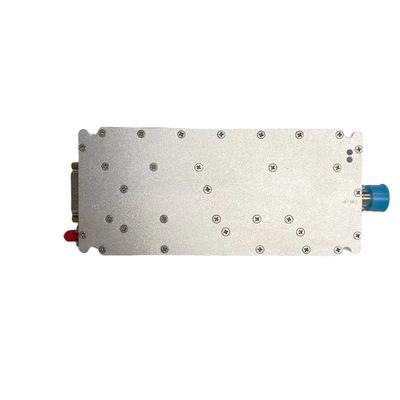

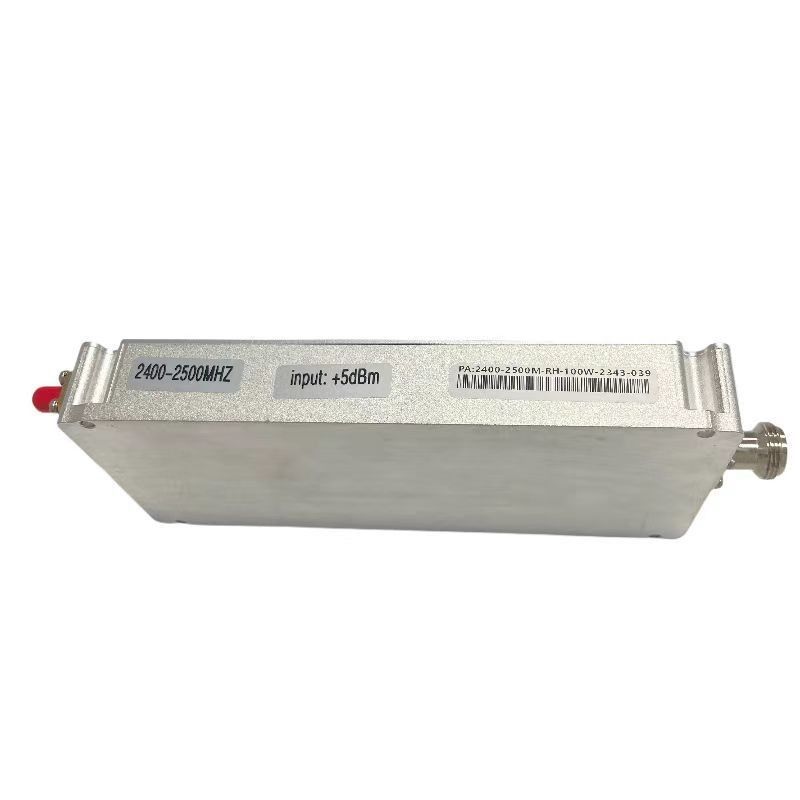

Counter Drone 100W RF Power Amplifier Module 2400-2500mhz Uav Jamming

Detail Information

Place of Origin:

Guangdong, China

Frequency:

2400-2500mhz

Power Supply:

100W

Power Flatness:

5 DBi

VSWR:

Supply Current:

≤8.5A

Input Connect:

SMA

Output Connect:

N-Type

Size:

170*77*24.5mm

Weight:

350g

Operating Temperature:

-20℃-55℃

Supply Ability:

5000pcs per month

Highlight:

Counter Drone RF Power Amplifier Module

Product Description

Specification

Frequency	2400-2500mhz
Power supply	100W
Saturated output power	50±1dBm @input=5dbm
Gain	50±2dB
In-band fluctuation	≤2.0dB
Out-of-band spurious	9kHz～1GHz:≤-36dBm/30kHz 1GHz～12.75GHz:≤-30dBm/30KHz
Input VSWR/Out VSWR	≤2
Gain temperature stability	≤±1.5dB
Working voltage	DC+32V
Protection	Temperature protection 90 degrees,Reverse Power 30W protection
Working current	≤8.5A

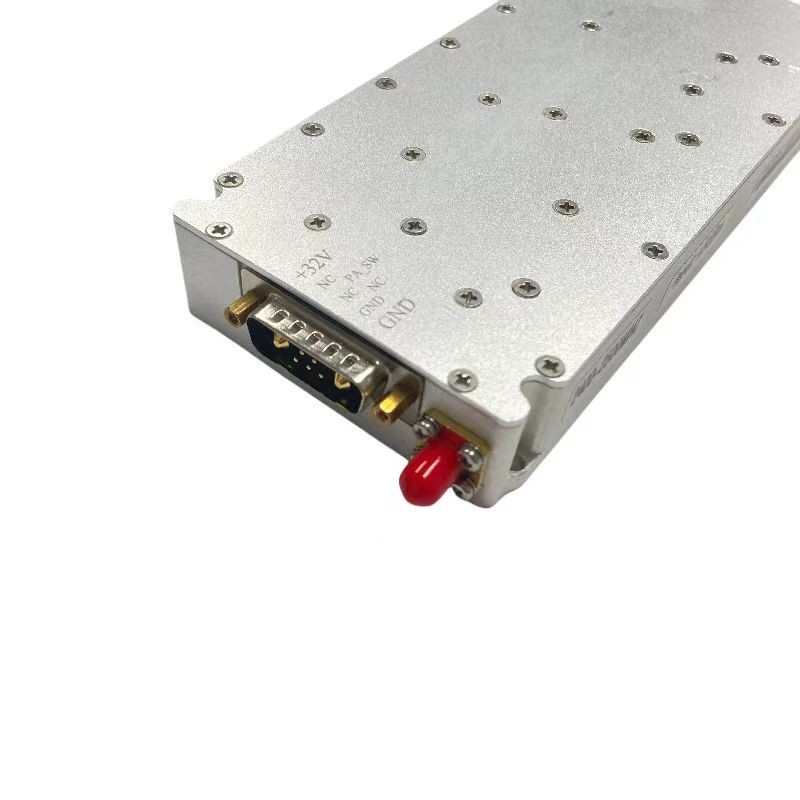

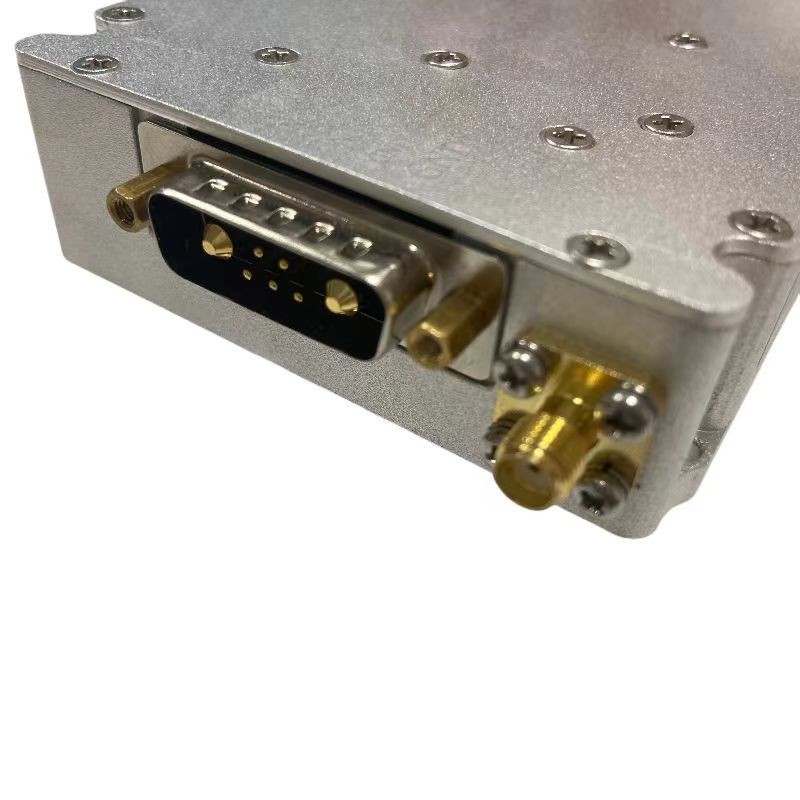

Power supply monitoring interface	Power supply: 7W2 power seat A1:32V A2:GND Pin1: PA_SW (High power on, Low level off) Other pins:NC
Iinput RF port	SMA

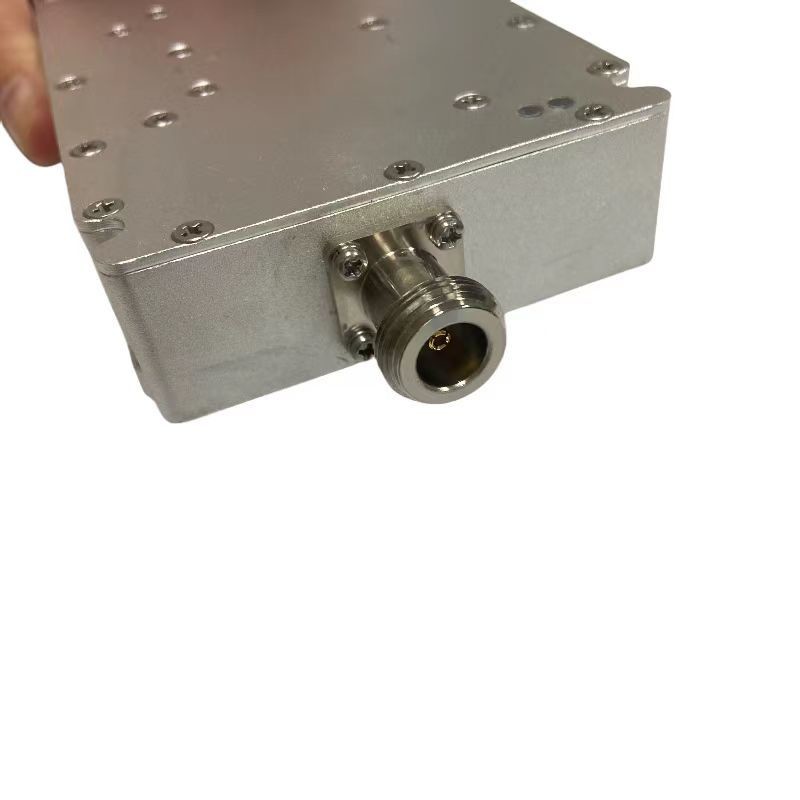

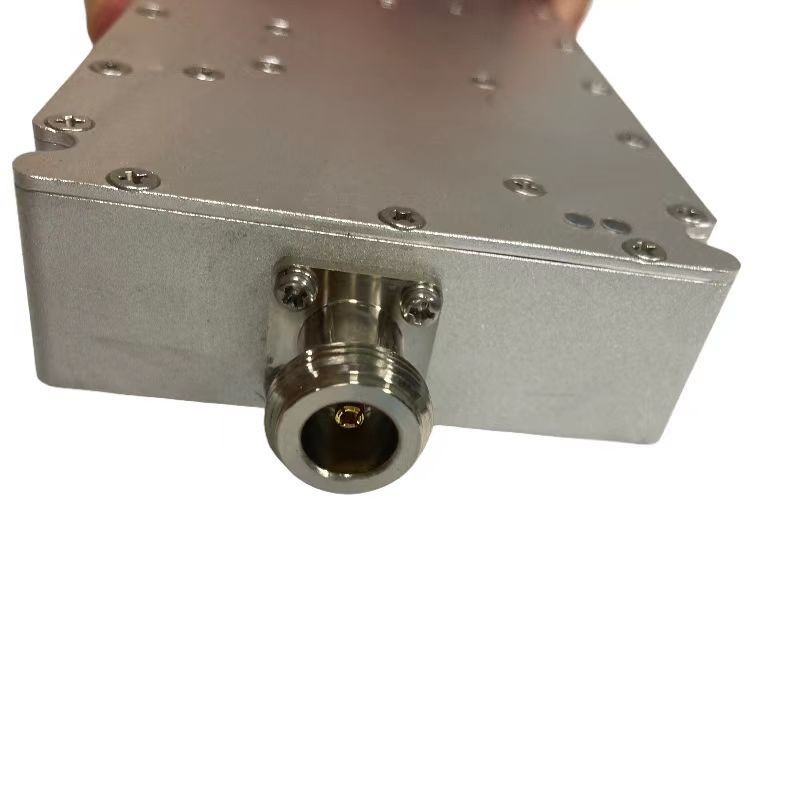

Output RF port	N-F
Dimensions	1707724.5mm
Working temperature	-20～+55℃
