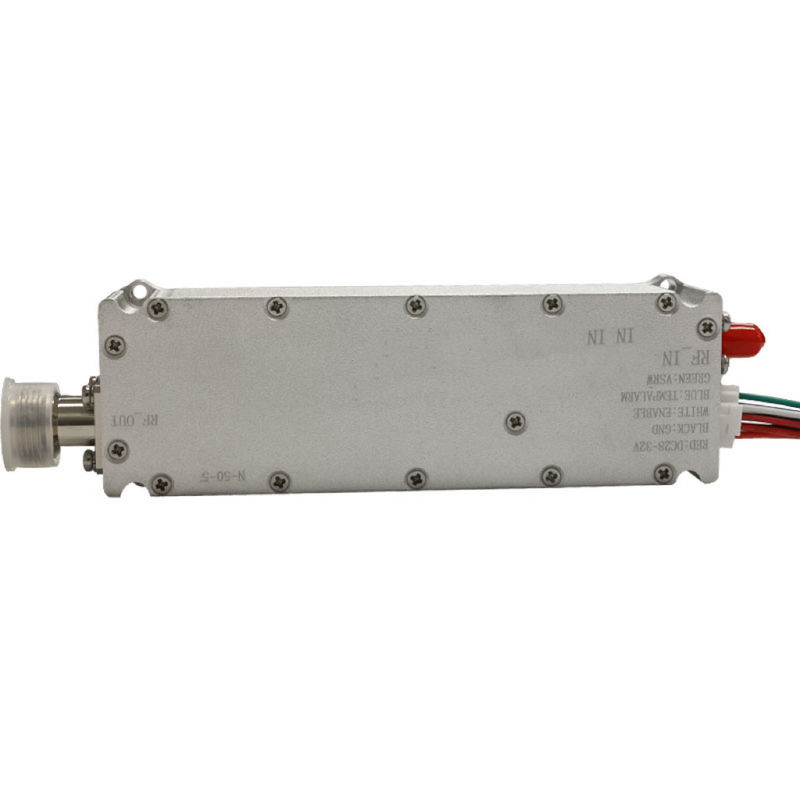

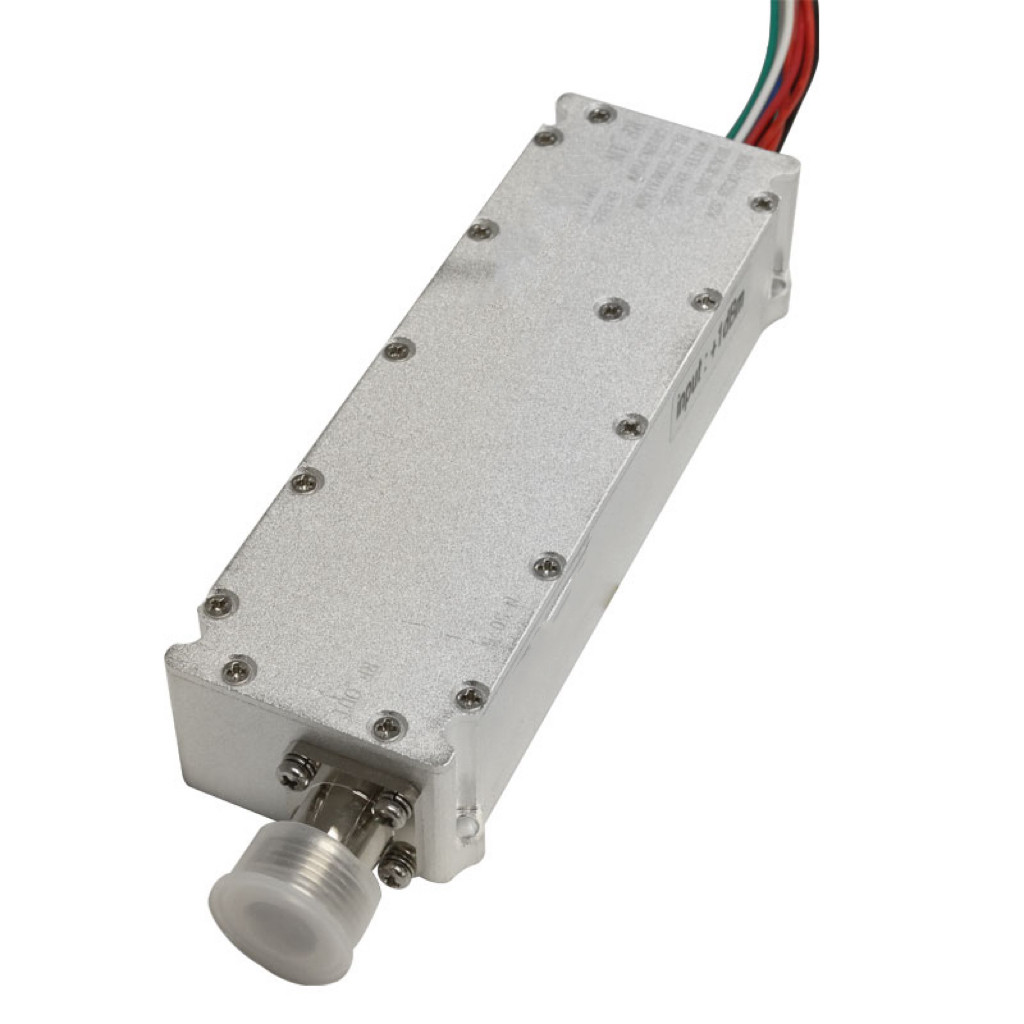

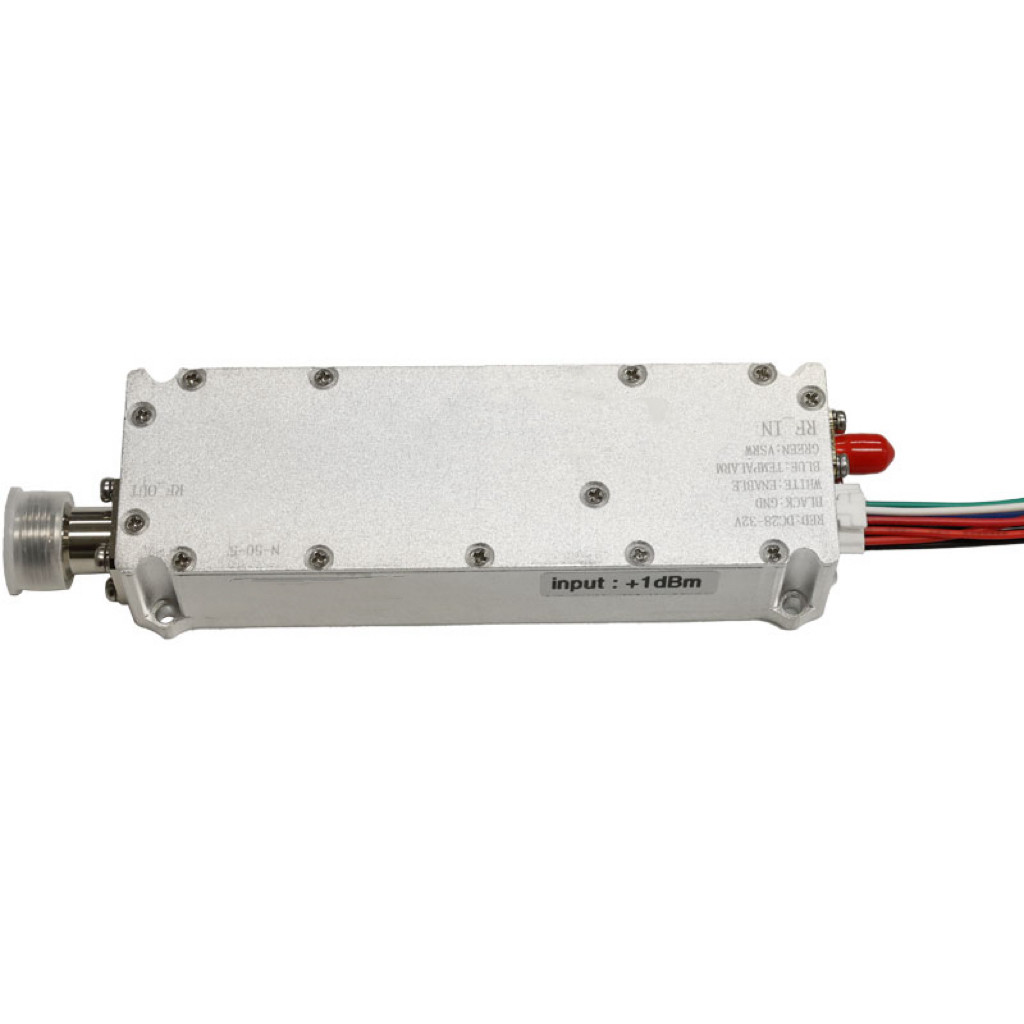

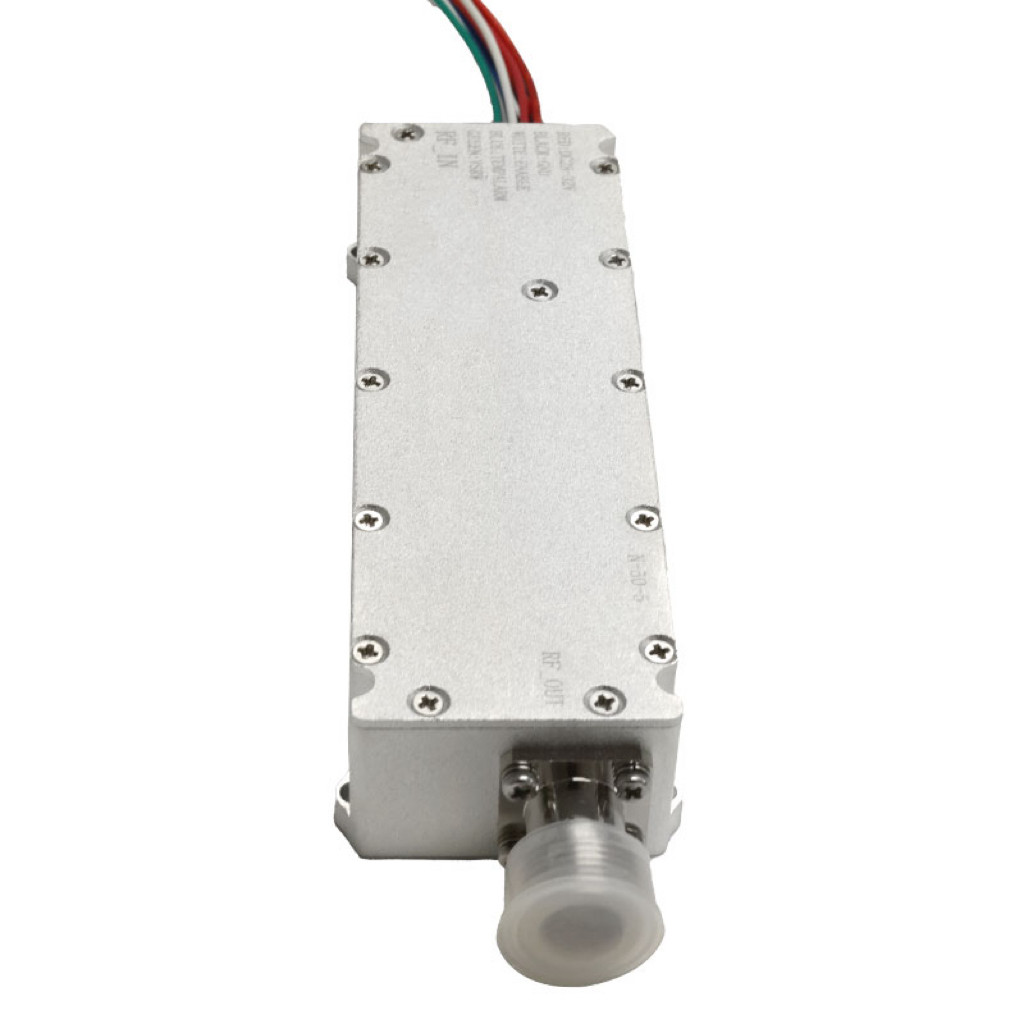

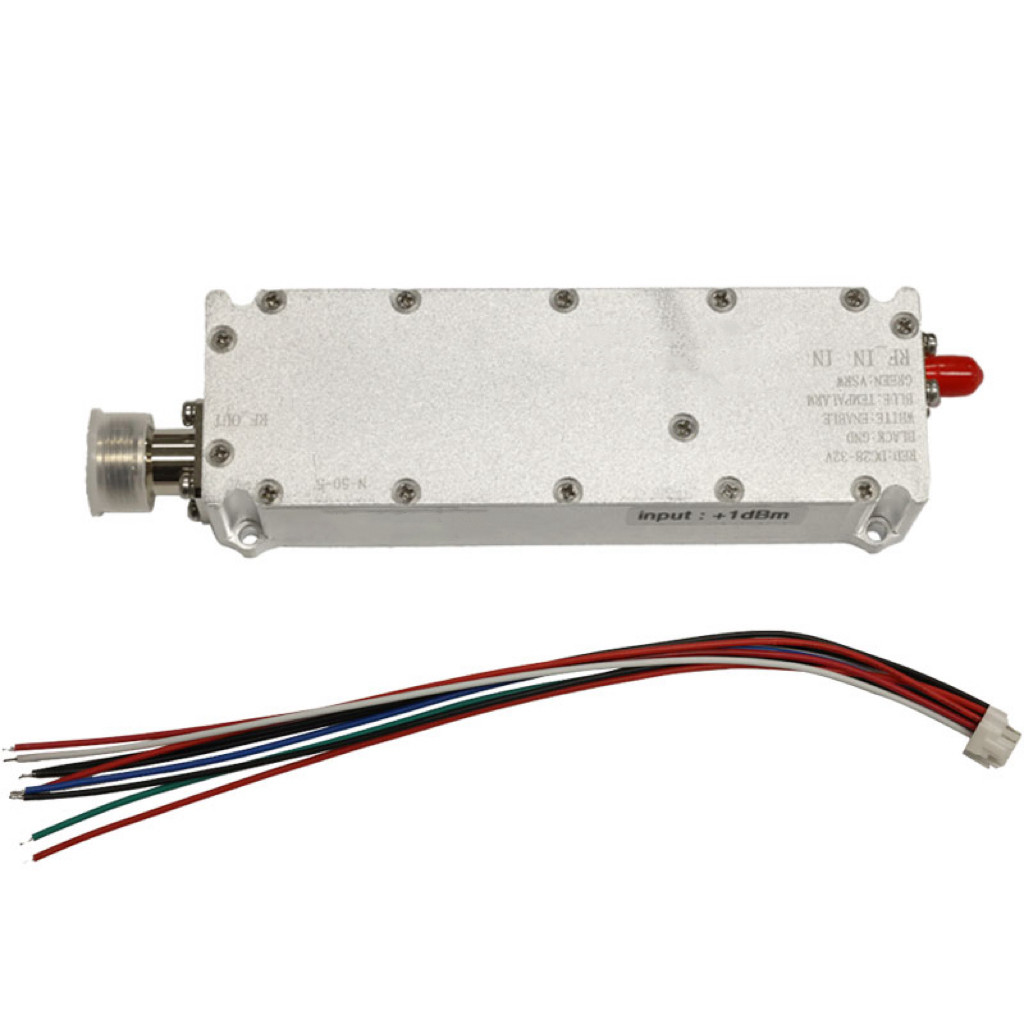

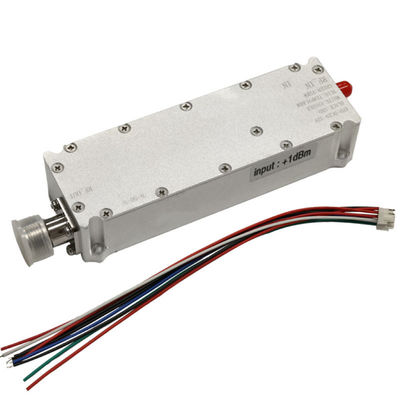

1160-1300MHz 50W Rf Power Amplifier Module For FPV Autel Dji Equipment
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 2 piece |
| Price | $235.00/cases 1-49 cases |
| Delivery Time | 5-8 workdays |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram， Paypal |
| Supply Ability | 5000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 1160-1300MHz | Power Supply | 50W |
|---|---|---|---|
| Saturated Output Power | 47±1dBm @input=3~5dbm | Gain | 45±2dB |
| Supply Current | ≤4A | Working Voltage | DC+32V |
| Temperature Protection(Warn) | Temperature Protection 90 Degrees(see PIN8) | VSWR Protection(Warn) | Reverse Power 15W Protection |
| Weight | 350g | Dimensions | 120*42*24.5mm |
| Highlight | FPV Equipment Rf Power Amplifier Module,50W Rf Power Module |
||
Product Description
Product Description
Specification
|
Item name
|
Technical parameters
|
|
Working frequency
|
1160-1300MHz
|
|
Saturated output power
|
47±1dBm @input=3~5dbm
|
|
Gain
|
45±2dB
|
|
In-band fluctuation
|
≤2.0dB
|
|
Out-of-band spurious |
9kHz～1GHz:≤-36dBm/30kHz
1GHz～12.75GHz:≤-30dBm/30KHz |
|
Input VSWR/Out VSWR
|
≤2
|
|
Gain temperature stability
|
≤±1.5dB
|
|
Working voltage
|
DC+32V
|
|
Temperature Protection(Warn)
|
Temperature protection 90 degrees(see PIN8)
|
|
VSWR Protection(Warn)
|
Reverse Power 15W protection
|
|
Working current
|
≤4A
|
|
Power supply monitoring interface
|
Power supply: 2*4PIN
PIN1:DC+28V;PIN2:DC+28V;PIN3:DC+28V;PIN4:PA_EN;PIN5:GND;PIN6:GND；PIN7:GND；PIN8:TEMPALARM(0V-ALARM;3.3V-Normal) |
|
Iinput RF port
|
SMA-KFD
|
|
Output RF port
|
N-KFD
|
|
Dimensions
|
120×42×24.5mm
|
|
Working temperature
|
-20～+55℃
|
