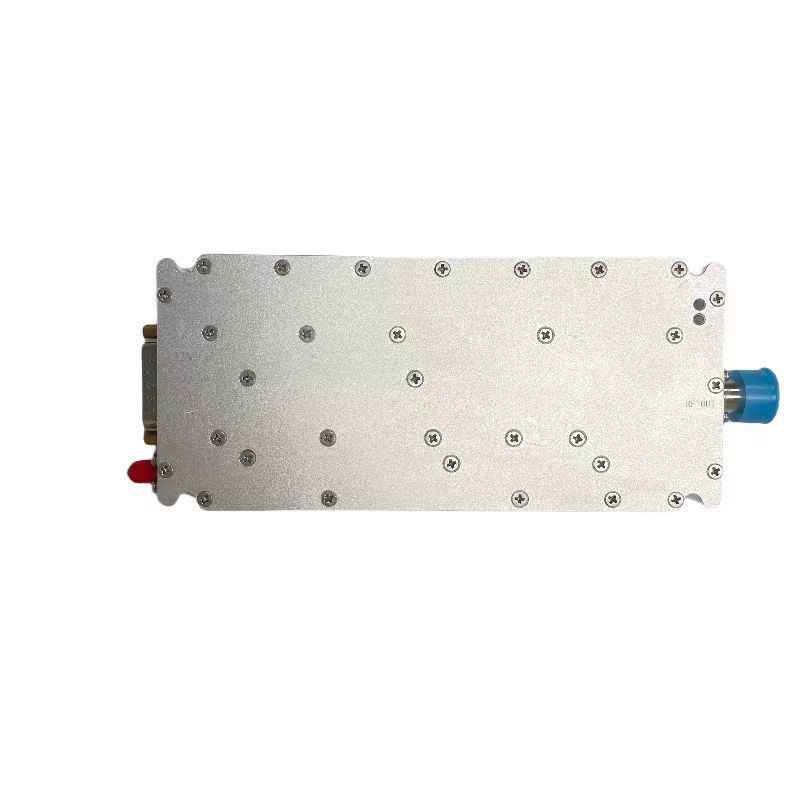

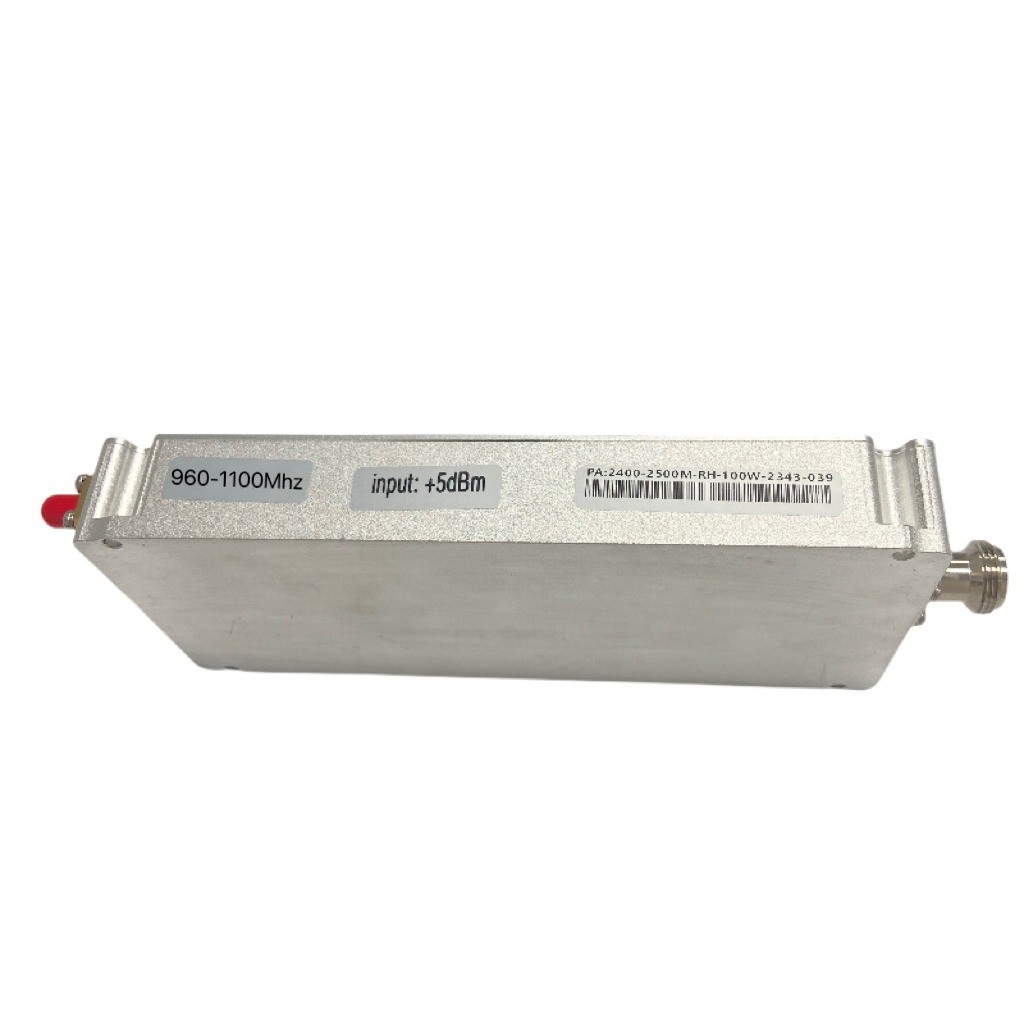

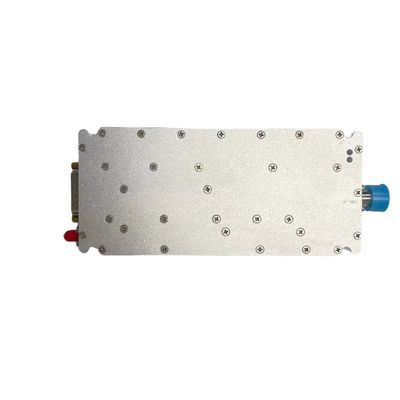

100W RF Amplifier Module For Uav DJI Equipment Temperature And VSWR Protection
100W RF Amplifier Module For Uav DJI Equipment Temperature And VSWR Protection
Basic Properties
Country Of Origin
Guangdong, China
Brand Name
LDSK
Trading Properties
MOQ
2 piece
Unit Price
$450.00/cases 1-19 cases
Payment Method
D/A, D/P, T/T, Western Union， Paypal
Supply Capacity
5000pcs per month
Product Summary
Product Description Specification Frequency 960-1100mhz Power supply 100W Saturated output power 50±1dBm @input=5dbm Gain 50±2dB In-band fluctuation ≤2.0dB Out-of-band spurious 9kHz～1GHz:≤-36dBm/30kHz 1GHz～12.75GHz:≤-30dBm/30KHz Input VSWR/Out VSWR ≤2 Gain temperature stability ≤±1.5dB Working ...
Product Details
Highlight:
100W RF Amplifier Module
,Uav Equipment RF Amplifier Module
Frequency:
960-1100mhz
Power Supply:
100W
Power Flatness:
5 DBi
VSWR:
<2
Supply Current:
≤8.5A
Input Connect:
SMA
Output Connect:
N-Type
Size:
170*77*24.5mm
Weight:
350g
Operating Temperature:
-20℃-55℃
Product Description
Product Description
Specification
|
Frequency
|
960-1100mhz
|
|
Power supply
|
100W
|
|
Saturated output power
|
50±1dBm @input=5dbm
|
|
Gain
|
50±2dB
|
|
In-band fluctuation
|
≤2.0dB
|
|
Out-of-band spurious
|
9kHz～1GHz:≤-36dBm/30kHz
1GHz～12.75GHz:≤-30dBm/30KHz |
|
Input VSWR/Out VSWR
|
≤2
|
|
Gain temperature stability
|
≤±1.5dB
|
|
Working voltage
|
DC+32V
|
|
Protection
|
Temperature protection 90 degrees,Reverse Power 30W protection
|
|
Working current
|
≤8.5A
|
|

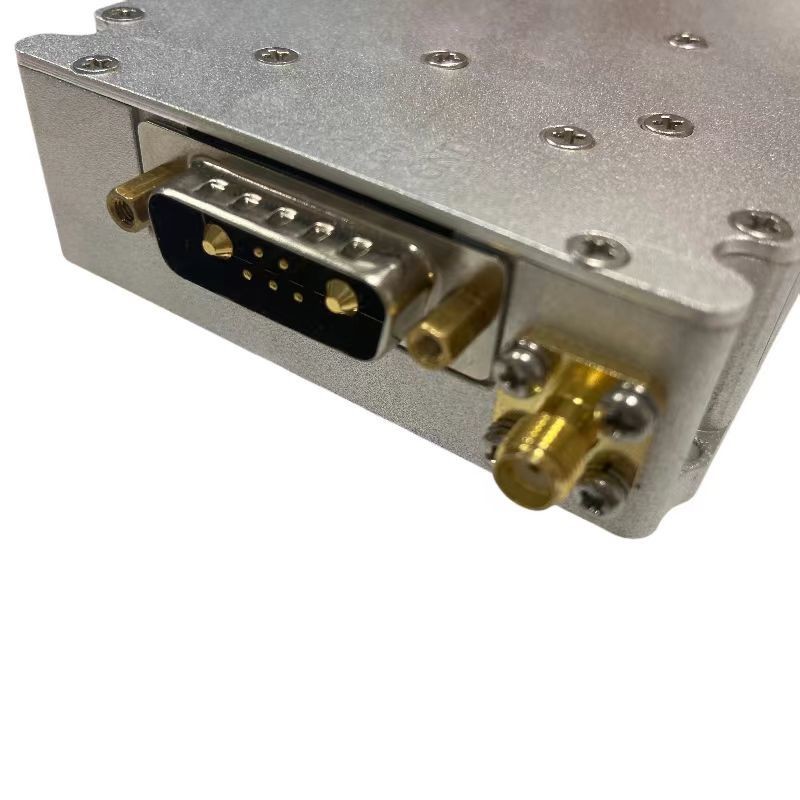

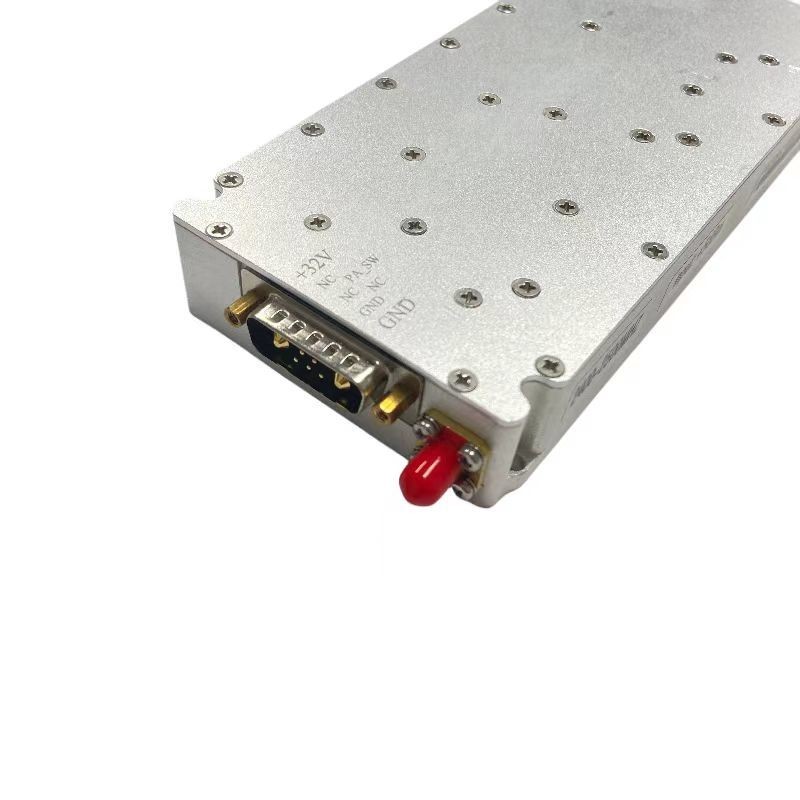

Power supply monitoring interface
|
Power supply: 7W2 power seat
A1:32V A2:GND Pin1: PA_SW (High power on, Low level off) Other pins:NC |
|
Iinput RF port
|
SMA
|
|

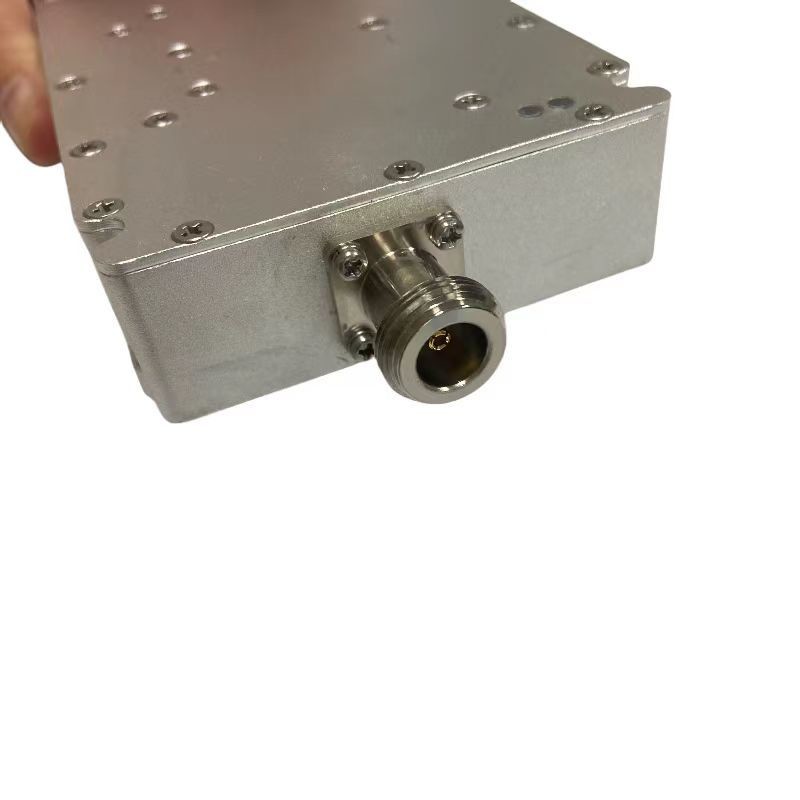

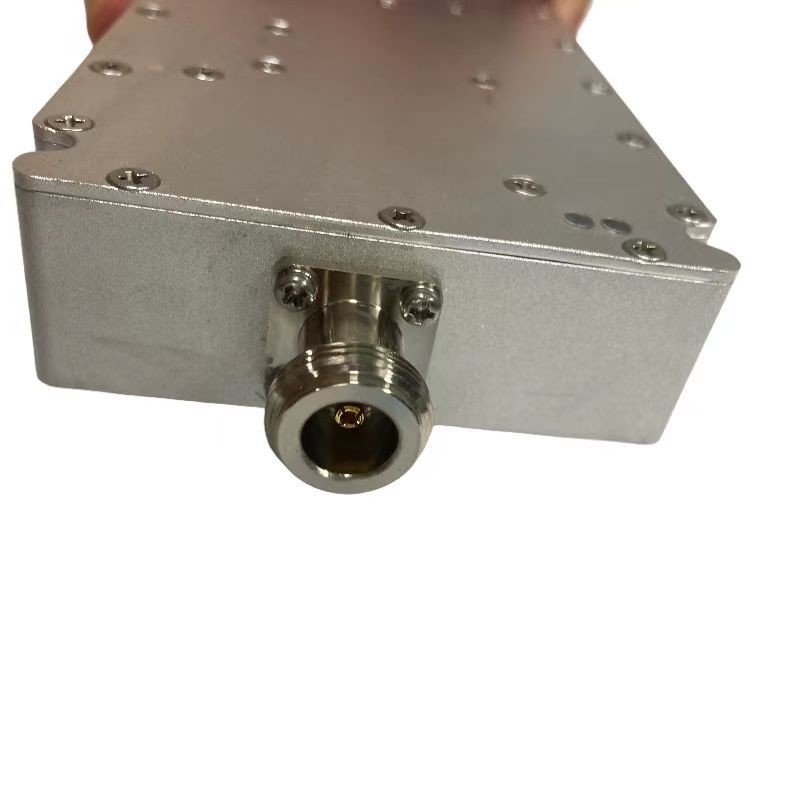

Output RF port
|
N-F
|
|
Dimensions
|
170*77*24.5mm
|
|
Working temperature
|
-20～+55℃
|
