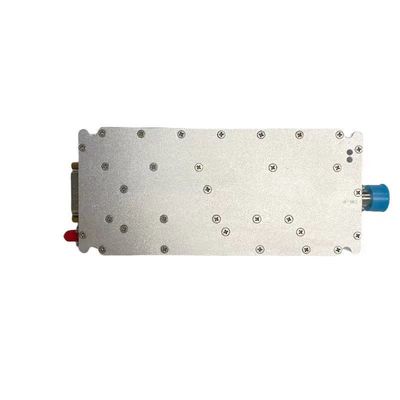

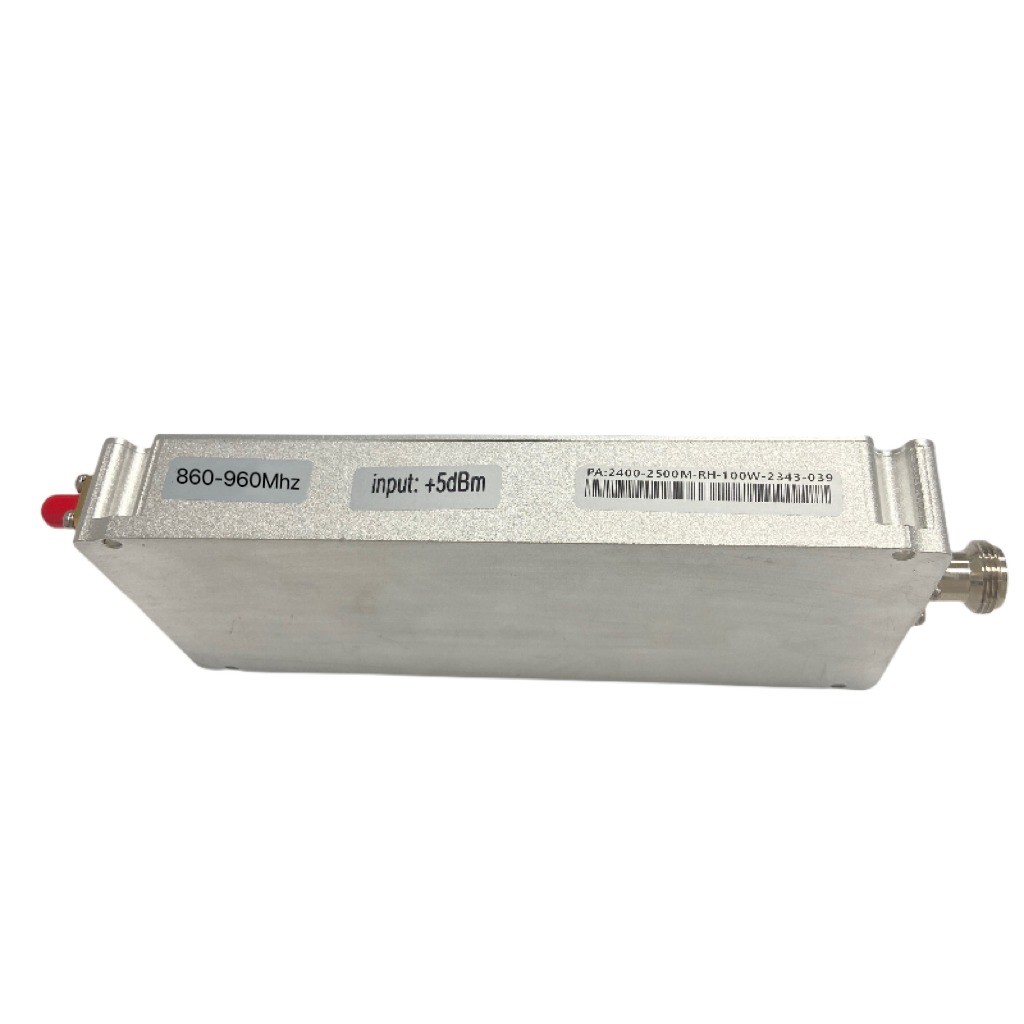

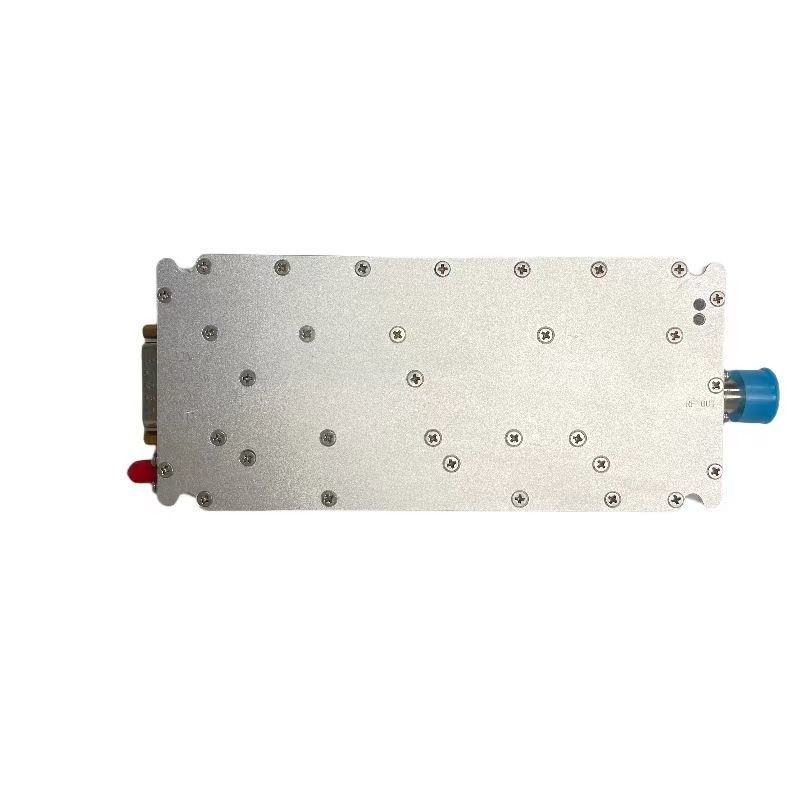

860-960Mhz 100W RF Amplifier Module , FPV Defense Module DC+32V
860-960Mhz 100W RF Amplifier Module , FPV Defense Module DC+32V
Basic Properties
Country Of Origin
Guangdong, China
Brand Name
LDSK
Trading Properties
MOQ
2 piece
Unit Price
$450.00/cases 1-9 cases
Payment Method
D/A, D/P, T/T, Western Union， Paypal
Supply Capacity
5000pcs per month
Product Summary
Temperature and VSWR Protection 860-960Mhz 100W RF Amplifier Module for FPV Autel Dji Equipment Product Description Specification Frequency 860-960mhz Power supply 100W Saturated output power 50±1dBm @input=5dbm Gain 50±2dB In-band fluctuation ≤2.0dB Out-of-band spurious 9kHz～1GHz:≤-36dBm/30kHz 1GHz...
Product Details
Highlight:
100W RF Amplifier Module
,100W RF FPV Defense Module
Frequency:
860-960mhz
Power Supply:
100W
Power Flatness:
5 DBi
VSWR:
<2
Supply Current:
≤8.5A
Input Connect:
SMA
Output Connect:
N-Type
Size:
170*77*24.5mm
Weight:
350g
Operating Temperature:
-20℃-55℃
Product Description
Temperature and VSWR Protection 860-960Mhz 100W RF Amplifier Module for FPV Autel Dji Equipment
Product Description
Specification
|
Frequency
|
860-960mhz
|
|
Power supply
|
100W
|
|
Saturated output power
|
50±1dBm @input=5dbm
|
|
Gain
|
50±2dB
|
|
In-band fluctuation
|
≤2.0dB
|
|
Out-of-band spurious
|
9kHz～1GHz:≤-36dBm/30kHz
1GHz～12.75GHz:≤-30dBm/30KHz |
|
Input VSWR/Out VSWR
|
≤2
|
|
Gain temperature stability
|
≤±1.5dB
|
|
Working voltage
|
DC+32V
|
|
Protection
|
Temperature protection 90 degrees,Reverse Power 30W protection
|
|
Working current
|
≤8.5A
|
|

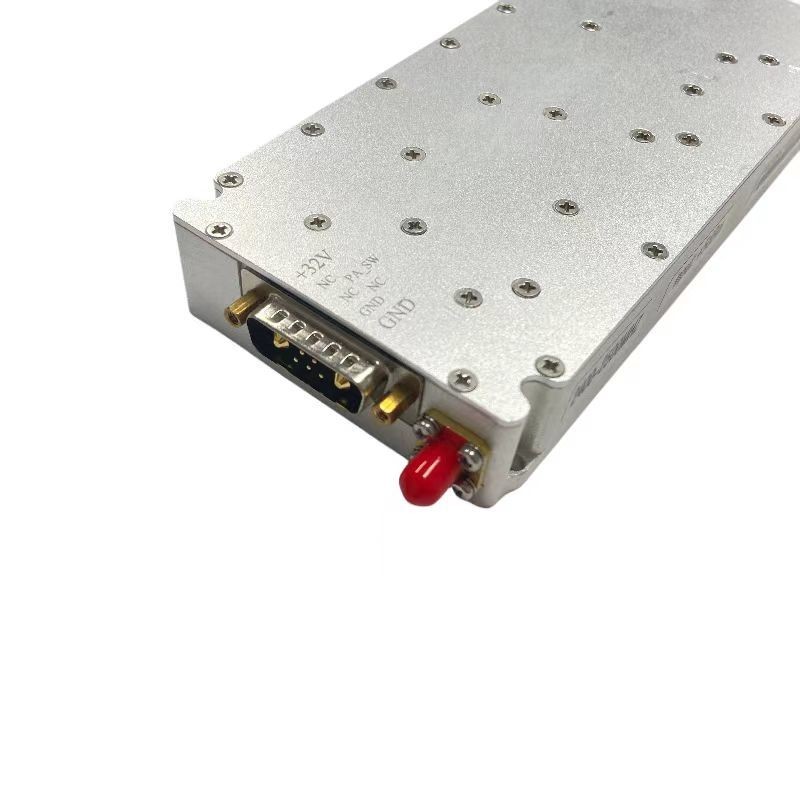

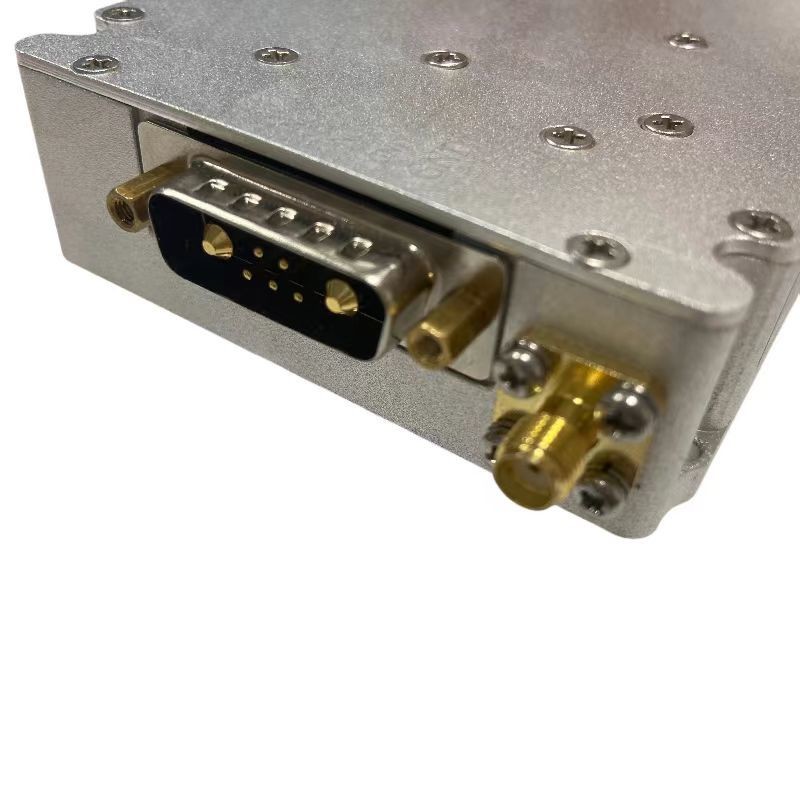

Power supply monitoring interface
|
Power supply: 7W2 power seat
A1:32V A2:GND Pin1: PA_SW (High power on, Low level off) Other pins:NC |
|
Iinput RF port
|
SMA
|
|

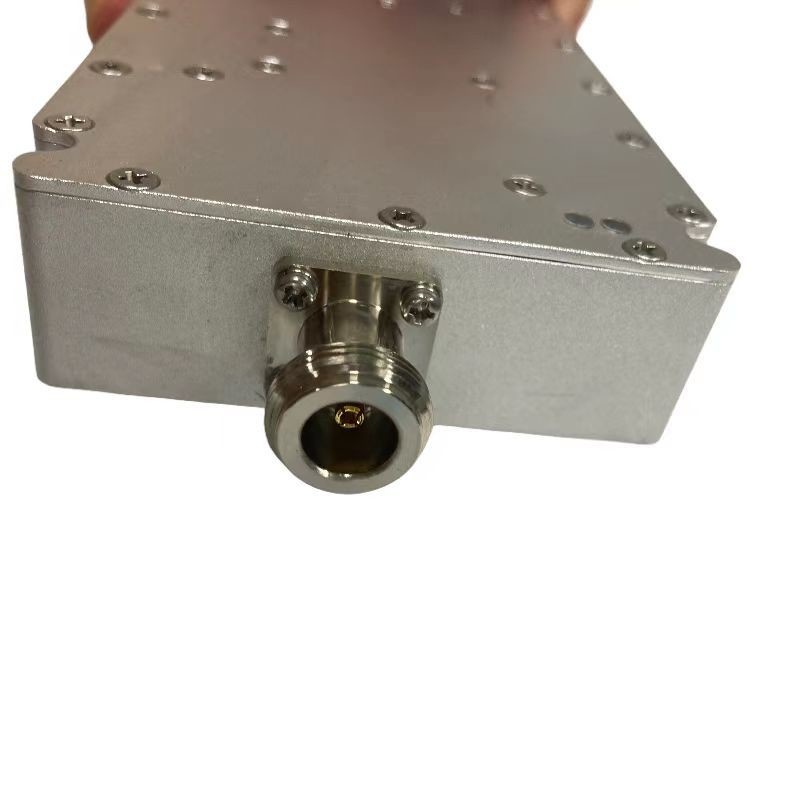

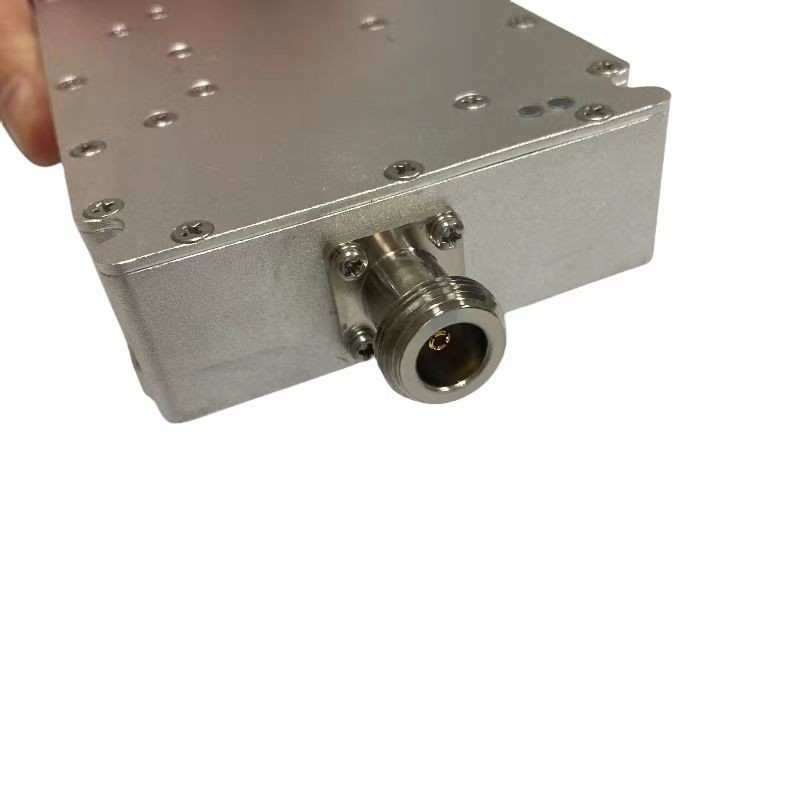

Output RF port
|
N-F
|
|
Dimensions
|
170*77*24.5mm
|
|
Working temperature
|
-20～+55℃
|
