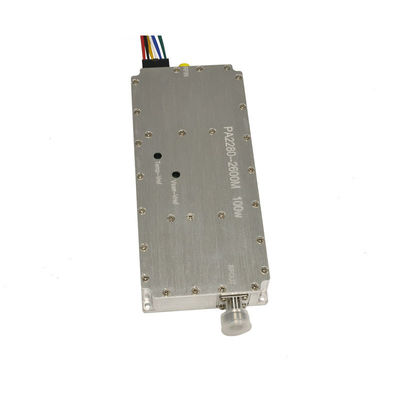

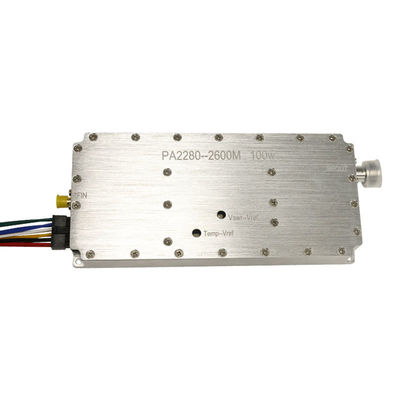

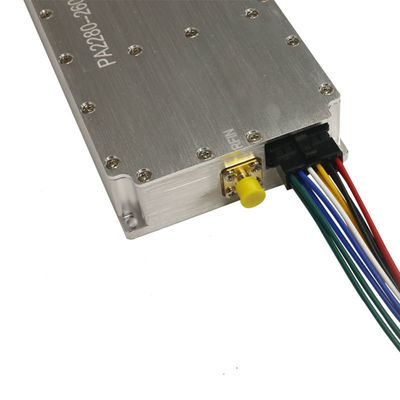

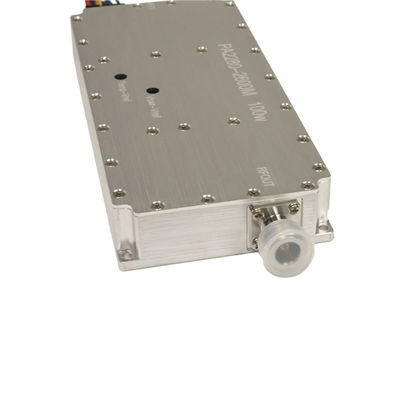

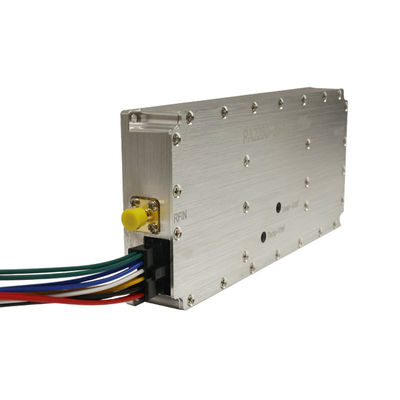

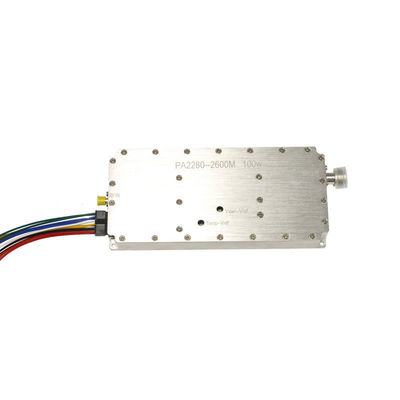

N Type Output Connect 100W RF Power Amplifier Module with Temperature Protection
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 2 piece |
| Price | $1,500.00/cases 1-49 cases |
| Delivery Time | 5-8 workdays |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram， Paypal |
| Supply Ability | 5000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 2280-2600mhz | Power Supply | 100W |
|---|---|---|---|
| Power Flatness | 5 DBi | VSWR Protection | Alarm Indication, High-level Protection |
| Supply Current | <8.5A | Input Connect | SMA |
| Output Connect | N-Type | Size | 170*77*24mm |
| Weight | 350g | Temperature Protection | Temperature Detection Voltage, Temperature Voltage Attached Diagram |
| Highlight | 100W RF Power Amplifier Module,Power Amplifier Module Anti UAV,power amplifier module anti drone |
||
Product Description
Product Description
Specification
|
Frequency
|
2280-2600mhz
|
|
Power supply
|
100W
|
|
Saturated output power
|
50±1dBm @input=5dbm
|
|
Working voltage
|
DC:28-32V
|
|
Protection
|
Temperature protection 90 degrees,Reverse Power 30W protection
|
|
Working current
|
≤8.5A
|
|
Power supply monitoring interface
|
Power supply: Perform capacitive
Pin1:GNDPin2:GND Pin3: 28V Pin4: 28V Pin5: 28VPin6: 28V Pin7: GND Pin8: GND Pin9:Power indication(0-3.3V,Power detection voltage)Pin10:VSWR protection(0-3.3V,Alarm indication, high-level protection)Pin11:Enable control(3.3-5V,High level on, low level off 3.3-5V)Pin12:Temperature indication(0-5V,Temperature detection voltage, temperature voltage attached diagram) |
|
Iinput RF port
|
SMA
|
|
Output RF port
|
N-F
|
|
Dimensions
|
170*77*24mm
|
|
Working temperature
|
65℃
|
