MOQ: | 1 piece |
Price: | $2500~$2860 |
Delivery Period: | 10-12 workdays |
Payment Method: | D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
Supply Capacity: | 5000pcs per month |
6-8G 50W RF Power Amplifier Module 6000-8000MHZ For FPV Autel Dji Boost FPV Range And Signal Strength 6-8Ghz 50W anti drone module
Product Description
RF OUT | |
Test item |
Technical Specification |
Working Frequency |
6000-8000MH |
Working Bandwidth |
2000MHZ |
Output Power |
47±1dB |
Gain |
|
Efficiency |
≤35% |
In-band Fluctuatio |
≤3.0dB |
EVM | |
Input and Output Standing Waves |
|
ACLR |
Swift | |
Amplifier power supply RF response (amplifier on and off) |
The amplifier is turned on at high level and turned off at low level |
Environment |
|
Working Environment Temperature | -40~+55℃ |
Working Temperature |
|
Relative Humidity |
5%~95%,No Condensation |
Storage Temperature |
-40~+85℃ |
RF IN | SMA |
RF OUT | SMA |
Interface Definition
N.O. |
Interface Name |
Remark |
1 |
Amplifier Switch |
Amplifier high level turns on, low level turns off 3.3-5V, white line |
2 | GND | Black Cable |
3 | GND | Black Cable |
4 | 28V | Red Cable |
5 | 28V | Red Cable |
6 | 28V | Red Cable |

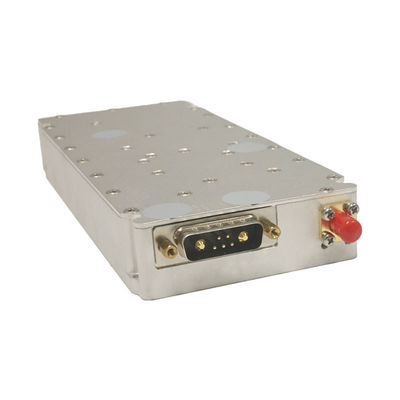

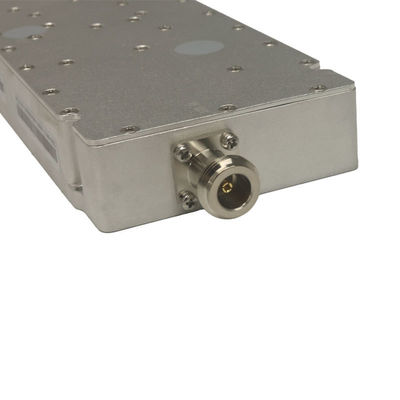

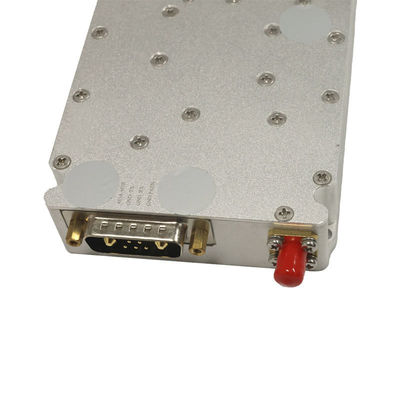

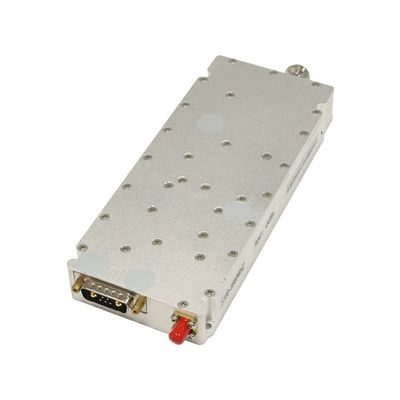

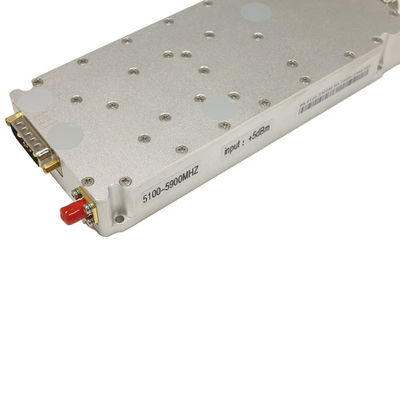

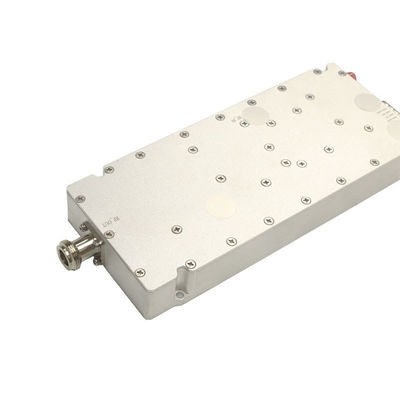

Product Picture
Company Product
Packing and Delivery
+86 13556824863
