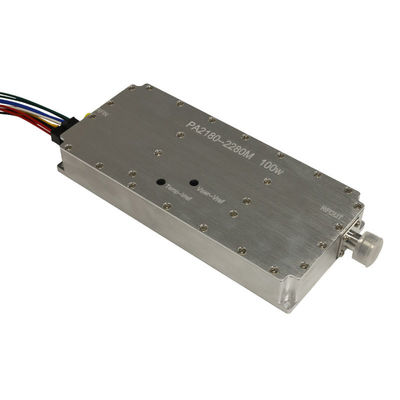

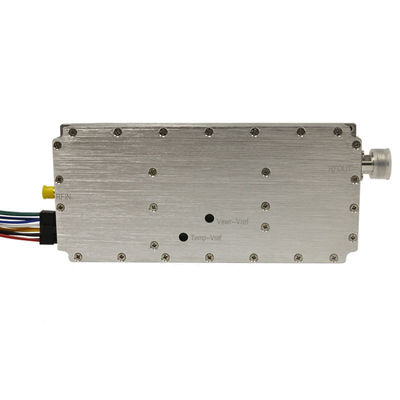

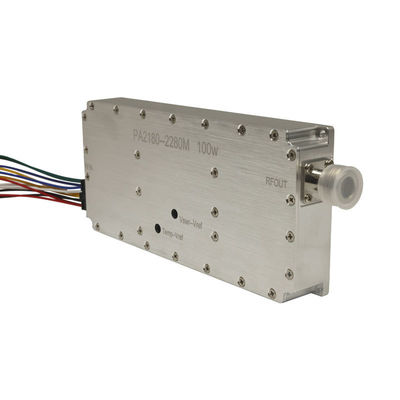

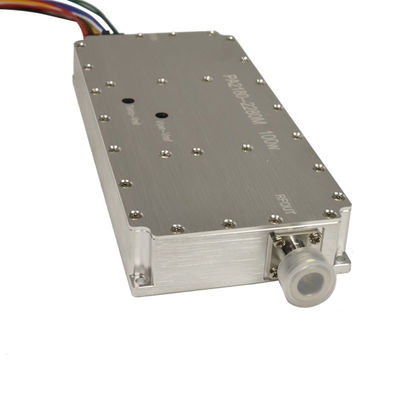

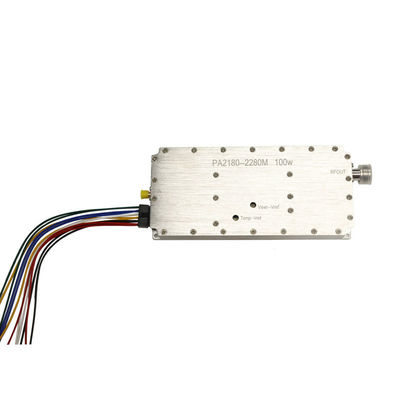

100W RF Amplifier Module Temperature Voltage Protected For Anti Drone Equipment
100W RF Amplifier Module Temperature Voltage Protected For Anti Drone Equipment
Basic Properties
Country Of Origin
Guangdong, China
Brand Name
LDSK
Trading Properties
MOQ
2 piece
Unit Price
$1,500.00/cases 1-49 cases
Payment Method
D/A, D/P, T/T, Western Union， Paypal
Supply Capacity
5000pcs per month
Product Summary
Product Description Specification Frequency 2180-2280mhz Power supply 100W Saturated output power 50±1dBm @input=5dbm Working voltage DC:28-32V Protection Temperature protection 90 degrees,Reverse Power 30W protection Working current ≤8.5A Power supply monitoring interface Power supply: Perform ...
Product Details
Highlight:
anti Dji RF Amplifier Module
,RF Amplifier Module Anti Drone
,Custom rf power amplifiers module
Frequency:
2180-2280mhz
Power Supply:
100W
Power Flatness:
5 DBi
VSWR Protection:
Alarm Indication, High-level Protection
Supply Current:
<8.5A
Input Connect:
SMA
Output Connect:
N-Type
Size:
170*77*24mm
Weight:
350g
Temperature Protection:
Temperature Detection Voltage, Temperature Voltage Attached Diagram
Product Description
Product Description
Specification
|
Frequency
|
2180-2280mhz
|
|
Power supply
|
100W
|
|
Saturated output power
|
50±1dBm @input=5dbm
|
|
Working voltage
|
DC:28-32V
|
|
Protection
|
Temperature protection 90 degrees,Reverse Power 30W protection
|
|
Working current
|
≤8.5A
|
|

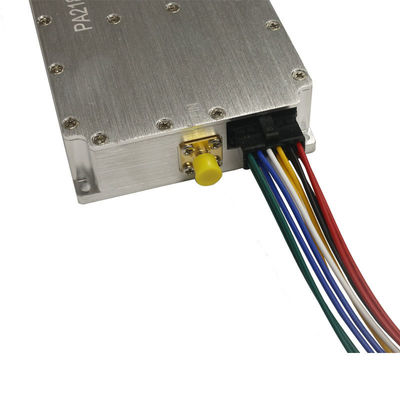

Power supply monitoring interface
|
Power supply: Perform capacitive
Pin1:GNDPin2:GND Pin3: 28V Pin4: 28V Pin5: 28VPin6: 28V Pin7: GND Pin8: GND Pin9:Power indication(0-3.3V,Power detection voltage)Pin10:VSWR protection(0-3.3V,Alarm indication, high-level protection)Pin11:Enable control(3.3-5V,High level on, low level off 3.3-5V)Pin12:Temperature indication(0-5V,Temperature detection voltage, temperature voltage attached diagram) |
|
Iinput RF port
|
SMA
|
|
Output RF port
|
N-F
|
|
Dimensions
|
170*77*24mm
|
|
Working temperature
|
65℃
|
