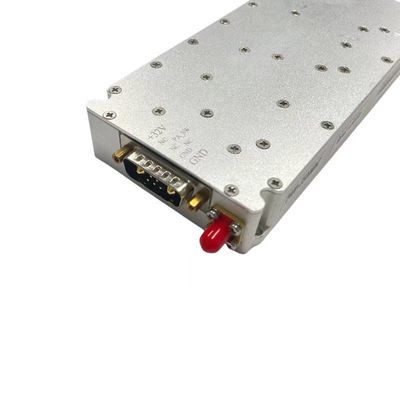

710-760Mhz Power Flatness 5 dBi 100W RF Amplifier Module for FPV Autel Dji Equipment
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 2 piece |
| Price | $450.00/cases 1-49 cases |
| Delivery Time | 5-8 workdays |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram， Paypal |
| Supply Ability | 5000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 710-760mhz | Power Supply | 100W |
|---|---|---|---|
| Power Flatness | 5 DBi | VSWR | <2 |
| Supply Current | ≤8.5A | Input Connect | SMA |
| Output Connect | N-Type | Size | 170*77*24.5mm |
| Weight | 350g | Operating Temperature | -20℃-55℃ |
| Highlight | 5 dBi RF Amplifier Module,Counter FPV Rf Power Module,Dji Equipment Rf Power Module |
||
Product Description
Product Description
Specification
|
Frequency
|
710-760mhz
|
|
Power supply
|
100W
|
|
Saturated output power
|
50±1dBm @input=5dbm
|
|
Gain
|
50±2dB
|
|
In-band fluctuation
|
≤2.0dB
|
|
Out-of-band spurious
|
9kHz～1GHz:≤-36dBm/30kHz
1GHz～12.75GHz:≤-30dBm/30KHz |
|
Input VSWR/Out VSWR
|
≤2
|
|
Gain temperature stability
|
≤±1.5dB
|
|
Working voltage
|
DC+32V
|
|
Protection
|
Temperature protection 90 degrees,Reverse Power 30W protection
|
|
Working current
|
≤8.5A
|
|

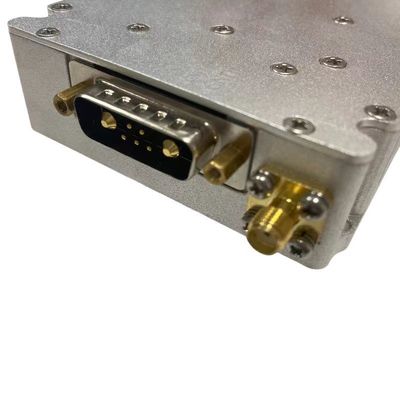

Power supply monitoring interface
|
Power supply: 7W2 power seat
A1:32V A2:GND Pin1: PA_SW (High power on, Low level off) Other pins:NC |
|
Iinput RF port
|
SMA
|
|
Output RF port
|
N-F
|
|
Dimensions
|
170*77*24.5mm
|
|
Working temperature
|
-20～+55℃
|
