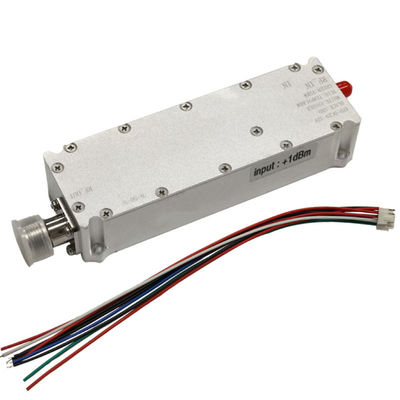

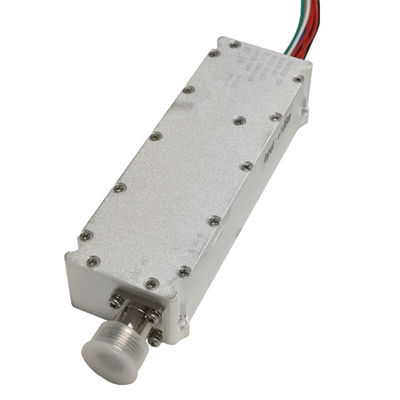

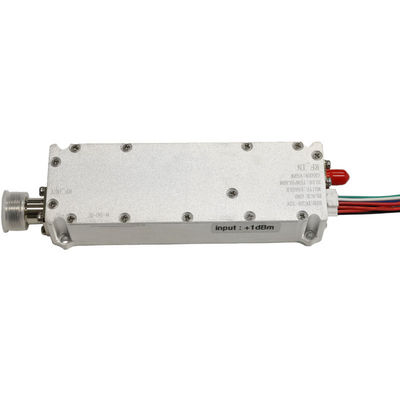

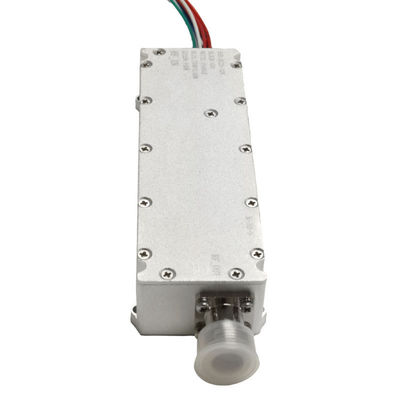

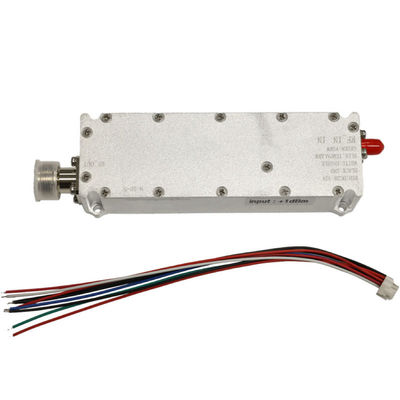

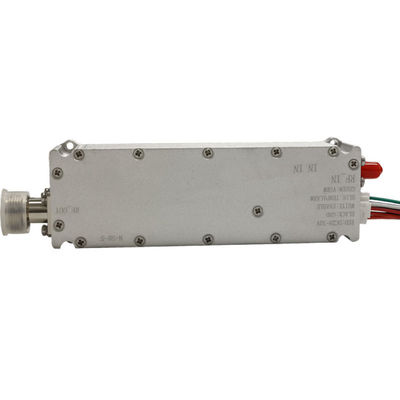

Stable 840-930M 50W RF Amplifier Module for Autel Mavic 3 Counter FPV C-UAS
Stable 840-930M 50W RF Amplifier Module for Autel Mavic 3 Counter FPV C-UAS
Basic Properties
Country Of Origin
Guangdong, China
Brand Name
LDSK
PRODUCT MODEL
840-930mhz 50W module
Trading Properties
MOQ
2 piece
Unit Price
$235.00/sets >=2 sets
Payment Method
D/A, D/P, T/T, Western Union， Paypal
Supply Capacity
5000pcs per month
Product Summary
Product Description Specification item Technical parameters Working frequency 840-930MHz Saturated output power 47±1dBm @input=3~5dbm Gain 45±2dB In-band fluctuation ≤2.0dB Out-of-band spurious 9kHz～1GHz:≤-36dBm/30kHz 1GHz～12.75GHz:≤-30dBm/30KHz Input VSWR/Out VSWR ≤2 Gain temperature stability ≤±1...
Product Details
Highlight:
Counter FPV RF Amplifier Module
,RF Amplifier Module 50W
,Counter UAS RF Amplifier Module
Saturated Output Power:
Input=3~5dbm
Gain:
45±2dB
In-Band Fluctuation:
2.0dB
Working Voltage:
32V
Temperature Protection(Warn):
Temperature Protection 90 Degrees(See PIN8)
VSWR Protection(Warn):
Reverse Power 15W Protection
Working Current:
4A
Dimensions:
120*42*24.5mm
Weight:
150g
Product Description
Product Description
Specification
|
item
|
Technical parameters
|
|
Working frequency
|
840-930MHz
|
|
Saturated output power
|
47±1dBm @input=3~5dbm
|
|
Gain
|
45±2dB
|
|
In-band fluctuation
|
≤2.0dB
|
|
Out-of-band spurious |
9kHz～1GHz:≤-36dBm/30kHz
1GHz～12.75GHz:≤-30dBm/30KHz |
|
Input VSWR/Out VSWR
|
≤2
|
|
Gain temperature stability
|
≤±1.5dB
|
|
Working voltage
|
DC+32V
|
|
Temperature Protection(warn)
|
Temperature protection 90 degrees(See PIN8)
|
|
VSWR Protection(warn)
|
Reverse Power 15W protection
|
|
Working current
|
≤4A
|
|
Power supply monitoring interface
|
Power supply: 2*4PIN
PIN1:DC+28V;PIN2:DC+28V;PIN3:DC+28V;PIN4:PA_EN;PIN5:GND;PIN6:GND；PIN7:GND；PIN8:TEMPALARM(0V-ALARM;3.3V-Normal) |
|
Iinput RF port
|
SMA-KFD
|
|
Output RF port
|
N-KFD
|
|
Dimensions
|
120×42×24.5mm
|
|
Working temperature
|
-20～+55℃
|
