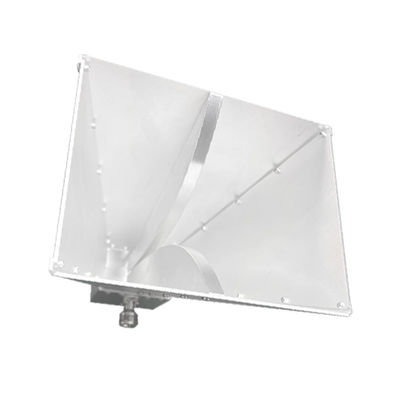

18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV
  • name
  • name
  • name
  • name
  • name

18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV

MOQ: 1 piece
Price: $2285
Delivery Period: 5-8 workdays
Payment Method: D/A,D/P,T/T,Western Union,MoneyGram， Paypal
Supply Capacity: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
LDSK
Frequency Range:
2-8Ghz
Gain:
18 DBi
VSWR:
1.4 Typ.
Polarization:
Linear
Cross Pol. Isolationn:
50Typ.
3dB Beamwidth:
H-Plane: 29-17
Connector:
SMA-Female
Finishing:
Paint Black
Material:
Al
Size:
765.99*439.92*439.92mm
Weight:
7.415KG
Highlight:
UAV Communication Fiberglass Omni Antenna, Uav Defense Antenna 60cm, Anti Uav Fiberglass Omni Antenna
Minimum Order Quantity:
1 piece
Price:
$2285
Delivery Time:
5-8 workdays
Payment Terms:
D/A,D/P,T/T,Western Union,MoneyGram， Paypal
Supply Ability:
5000pcs per month
Highlight:

18dBi horn antenna SMA-Female

,

2-8GHz horn antenna for anti-drone

,

UAV communication horn antenna with warranty

Product Description
18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV Communication
Product Specifications
Attribute Value
Frequency Range 2-8Ghz
Gain 18 DBi
VSWR 1.4 Typ.
Polarization Linear
Cross Pol. Isolation 50Typ.
3dB Beamwidth H-Plane: 29-17
Connector SMA-Female
Finishing Paint Black
Material Al
Size 765.99*439.92*439.92mm
Weight 7.415KG
Product Highlights
  • UAV Communication Fiberglass Omni Antenna
  • Uav Defense Antenna 60cm
  • Anti Uav Fiberglass Omni Antenna
Detailed Specifications
Parameters Specifications Units
Frequency Range 2-8 GHz
Gain 18 Typ. dBi
VSWR 1.4 Typ.
Polarization Linear
Cross Pol. Isolation 50Typ. dB
3dB Beamwidth E-Plane: 29-12
H-Plane: 29-17		 deg
Product Visuals
18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV 0
Simulated Data
18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV 1 18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV 2 18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV 3
Company Product
18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV 4
Packing and Delivery
18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV 5
Frequently Asked Questions
Why Choose Us?

We offer professional knowledge, sincere service, prompt replies, and an excellent team to ensure a comfortable buying experience.

What is the process of placing an order?
  1. Send us the products you're interested in
  2. We'll provide detailed information and quotations
  3. Consult with us about any product questions
  4. Confirm the order - we'll send a PI and payment link
  5. After packaging, we'll send confirmation photos and tracking information
  6. After delivery, we welcome your product evaluation
How to contact us?
Email: jess@ladaskytech.com
