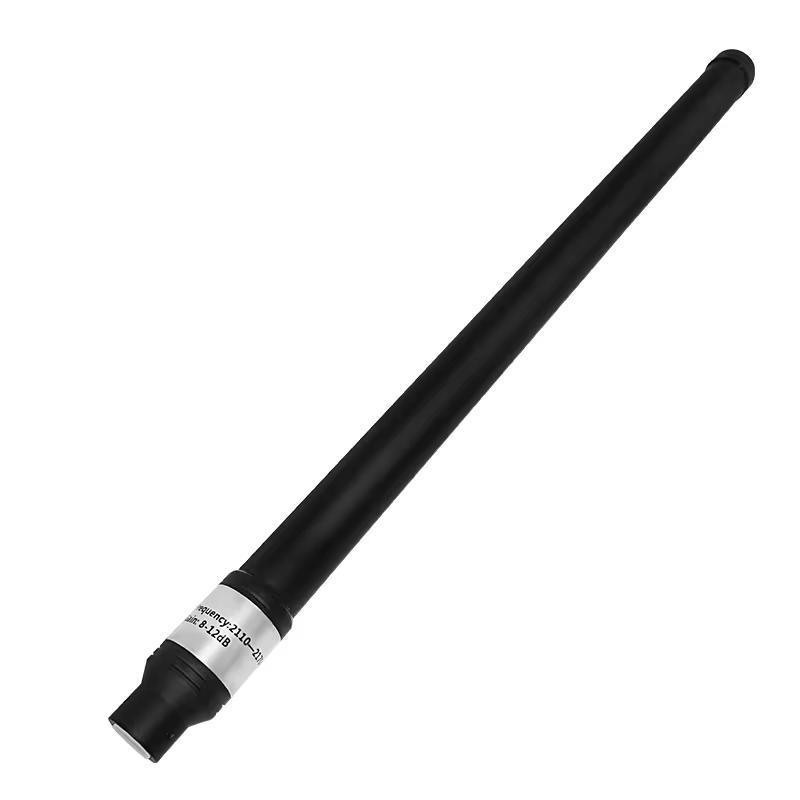

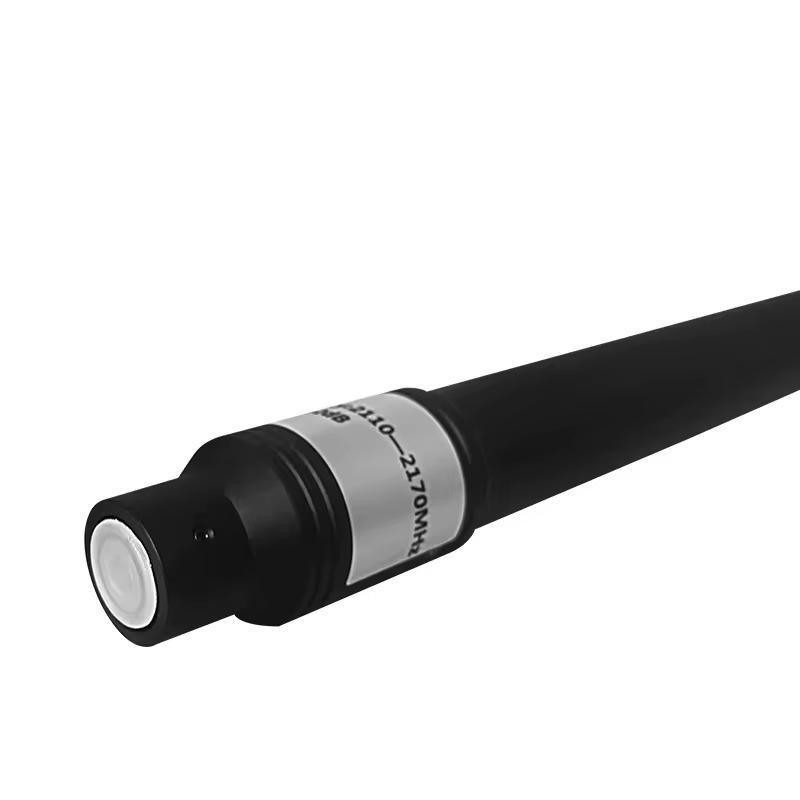

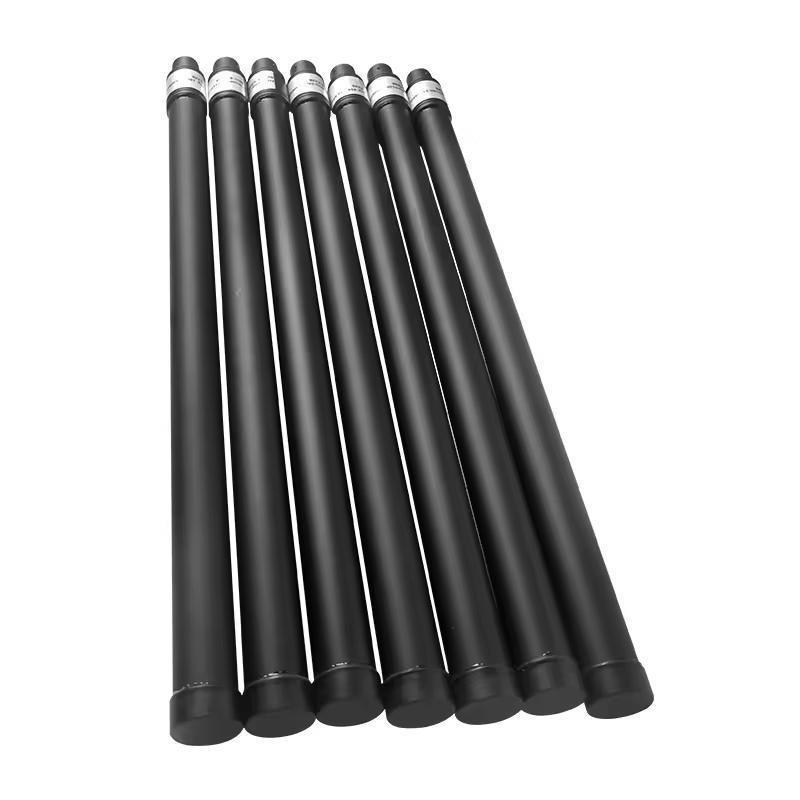

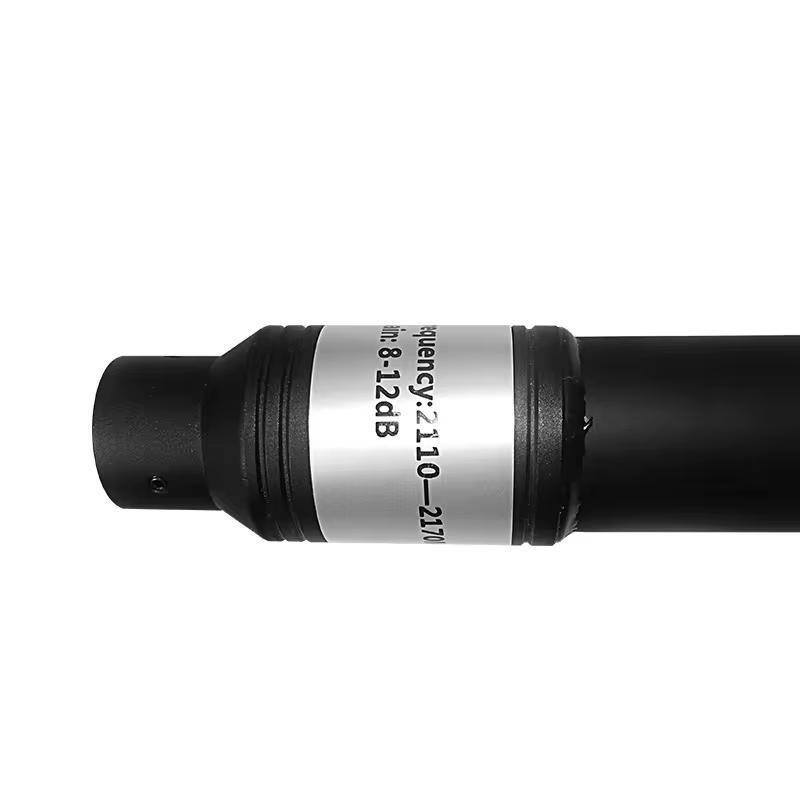

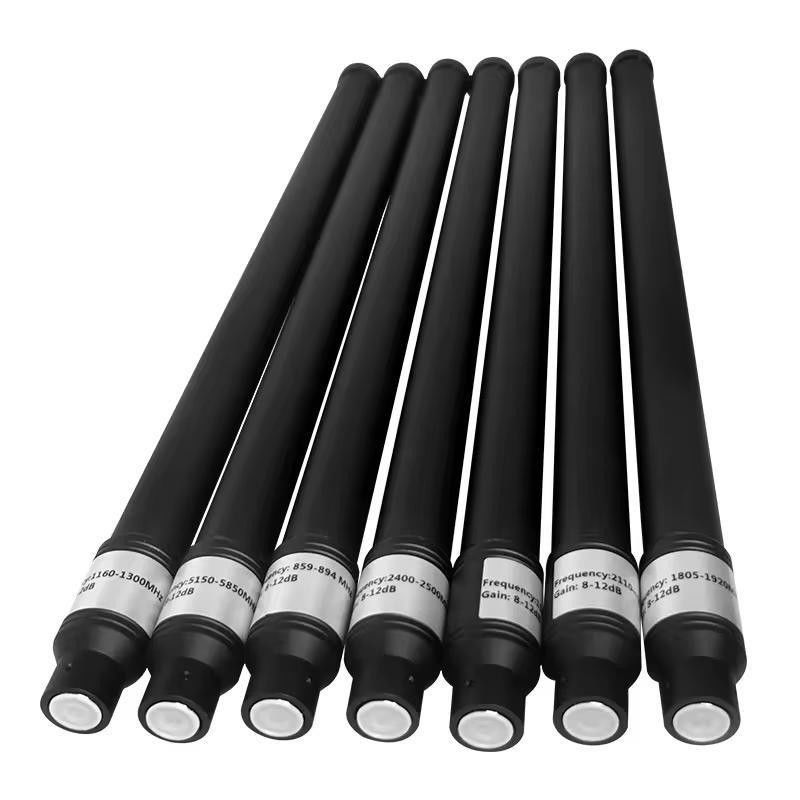

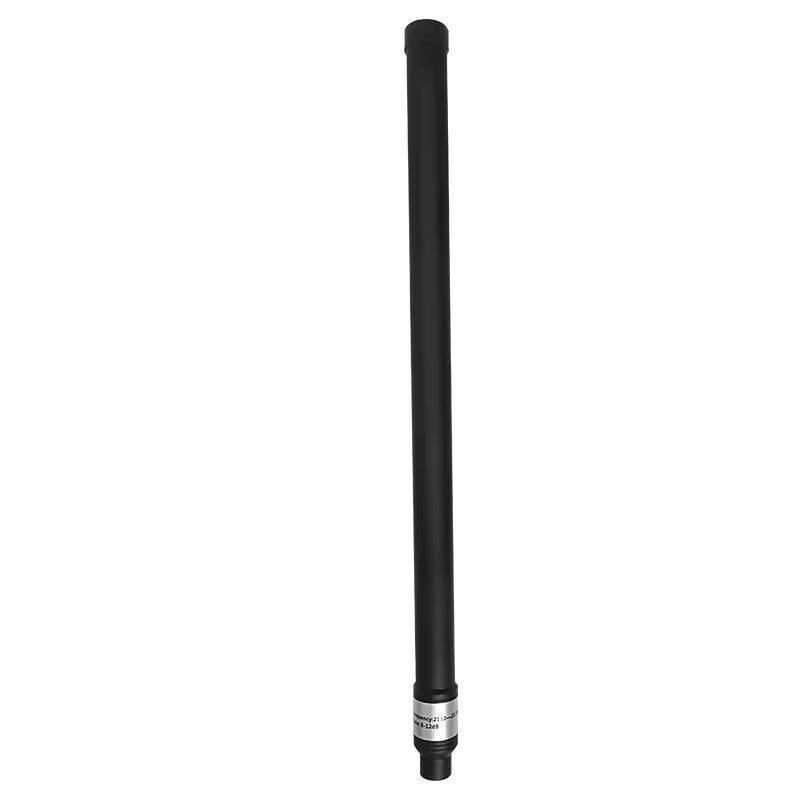

Fiberglass Counter Drone Antenna 5100-6000 MHz Frequency With Vertical Polarization
Parameters Frequency Range 5100-6000Mhz Gain 10±1dBi VSWR ≤2.0 Polarization Vertical Horizontal Beam width(0º) 360º Vertical Beam width(0º) 23±3º Ovality(dB) ±2dB Input Impedance(Ω) 50Ω Maximum input power(W) 100W Inpur connector type N-J (embedded) Lightning Protection DC Grounding Dimensionsmm...
Fiberglass Counter Drone Antenna
,Counter Drone Antenna Vertical Polarization
,Fiberglass Anti Drone Transmission Antenna
|
Frequency Range
|
5100-6000Mhz |
|
Gain
|
10±1dBi
|
|
VSWR
|
≤2.0
|
|
Polarization
|
Vertical
|
|
Horizontal Beam width(0º)
|
360º
|
|
Vertical Beam width(0º)
|
23±3º
|
|
Ovality(dB)
|
±2dB
|
|
Input Impedance(Ω)
|
50Ω
|
|
Maximum input power(W)
|
100W
|
|
Inpur connector type
|
N-J (embedded)
|
|
Lightning Protection
|
DC Grounding
|
|
Dimensionsmm(Diameter * Length)
|
20*600mm
|
|
Packing size(mm)
|
660*360*340mm
|
|
Antenna weight(kg)
|
0.5±0.1KG
|
|
Rated Wind Velocity(m/s)
|
36.9m/s
|
|
Radome Color
|
Black
|
|
Radome material
|
Fiberglass
|
|
Operating temperature(ºC)
|
-30~65º
|
|
Installation Method
|
Machine mounting
|
|
Quantity (sets)
|
1-50
|
> 50
|
|
Lead time (days)
|
less than 7 days
|
7-14days
|
