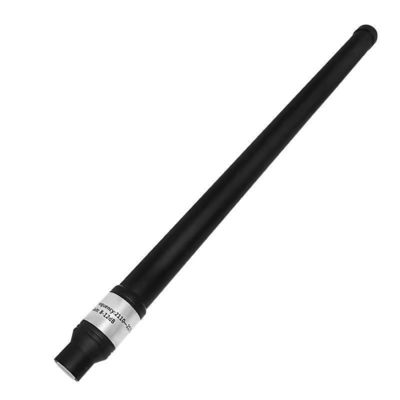

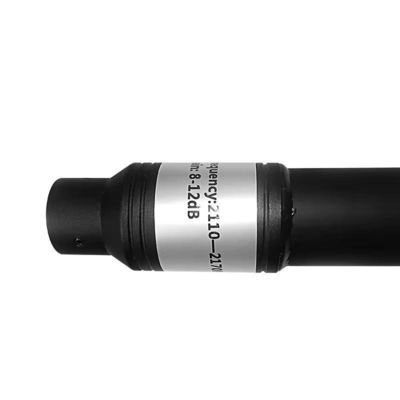

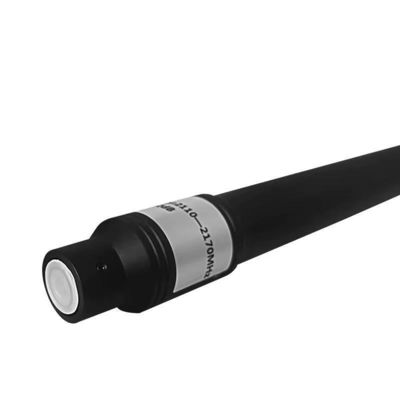

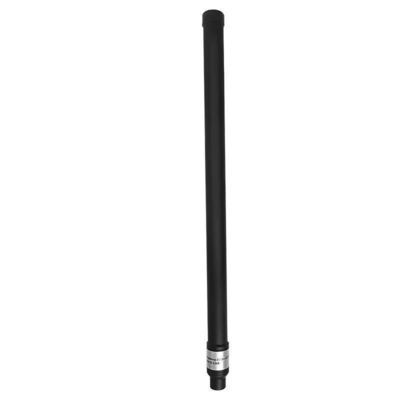

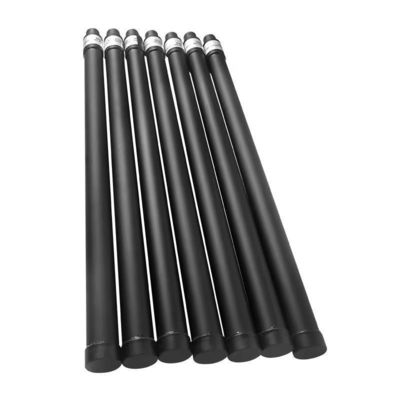

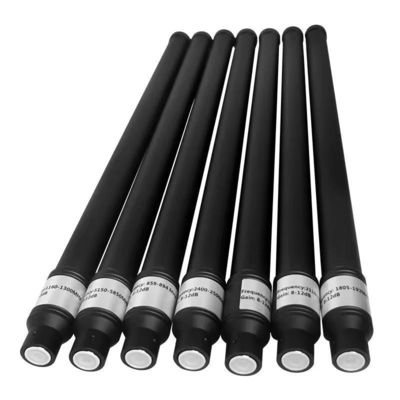

2.4G 30W Omnidirectional Anti Drone Antenna 600mm Long 20mm Dia. For Outdoor
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 2 piece |
| Delivery Time | 5-8 workdays |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram， Paypal |
| Supply Ability | 5000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Inpur Connector Type | N-J (Embedded) | Size | 20(Diameter)*600mm |
|---|---|---|---|
| Pack Size | 660*360*340mm | Weight | 0.5+0.1kg |
| Material | Fiberglass | Transport Package | Carton |
| Specification | 660*360*340mm | Origin | Guangdong, China |
| Package Size | 20.00cm * 20.00cm * 20.00cm | Package Gross Weight | 1.000kg |
| Gain | 6 DBi | Frequency | 2400-2590 MHz |
| Vswr | <2.0A | Samples | US$ 23/Piece 1 Piece(Min.Order) | |
| Customization | Available | Customized Request | ||
| Highlight | Anti Drone Antenna 2.4G 30W,Anti UAV Antenna 20mm Dia,Outdoor Omnidirectional Anti Drone Antenna |
||
Product Description
|
Frequency Range
|
2400-2590Mhz
|
|
Gain
|
6±1dBi
|
|
VSWR
|
≤2.0
|
|
Polarization
|
Vertical
|
|
Horizontal Beam width(0º)
|
360º
|
|
Vertical Beam width(0º)
|
23±3º
|
|
Ovality(dB)
|
±2dB
|
|
Input Impedance(Ω)
|
50Ω
|
|
Maximum input power(W)
|
100W
|
|
Inpur connector type
|
N-J (embedded)
|
|
Lightning Protection
|
DC Grounding
|
|
Dimensionsmm(Diameter * Length)
|
20*600mm
|
|
Packing size(mm)
|
660*360*340mm
|
|
Antenna weight(kg)
|
0.5±0.1KG
|
|
Rated Wind Velocity(m/s)
|
36.9m/s
|
|
Radome Color
|
Black
|
|
Radome material
|
Fiberglass
|
|
Operating temperature(ºC)
|
-30~65º
|
|
Installation Method
|
Machine mounting
|
|
Quantity (sets)
|
1-50
|
> 50
|
|
Lead time (days)
|
less than 7 days
|
7-14days
|
