18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV

18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV
18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV 18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV 18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV 18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV 18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV

Large Image :  18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV

Product Details:
Place of Origin: Guangdong, China
Brand Name: LDSK
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $2285
Delivery Time: 5-8 workdays
Payment Terms: D/A,D/P,T/T,Western Union,MoneyGram， Paypal
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Frequency Range: 2-8Ghz Gain: 18 DBi
VSWR: 1.4 Typ. Polarization: Linear
Cross Pol. Isolationn: 50Typ. 3dB Beamwidth: H-Plane: 29-17
Connector: SMA-Female Finishing: Paint Black
Material: Al Size: 765.99*439.92*439.92mm
Weight: 7.415KG Highlight: UAV Communication Fiberglass Omni Antenna, Uav Defense Antenna 60cm, Anti Uav Fiberglass Omni Antenna
Highlight:

18dBi horn antenna SMA-Female

,

2-8GHz horn antenna for anti-drone

,

UAV communication horn antenna with warranty

18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV Communication
Product Specifications
Attribute Value
Frequency Range 2-8Ghz
Gain 18 DBi
VSWR 1.4 Typ.
Polarization Linear
Cross Pol. Isolation 50Typ.
3dB Beamwidth H-Plane: 29-17
Connector SMA-Female
Finishing Paint Black
Material Al
Size 765.99*439.92*439.92mm
Weight 7.415KG
Product Highlights
  • UAV Communication Fiberglass Omni Antenna
  • Uav Defense Antenna 60cm
  • Anti Uav Fiberglass Omni Antenna
Detailed Specifications
Parameters Specifications Units
Frequency Range 2-8 GHz
Gain 18 Typ. dBi
VSWR 1.4 Typ.
Polarization Linear
Cross Pol. Isolation 50Typ. dB
3dB Beamwidth E-Plane: 29-12
H-Plane: 29-17		 deg

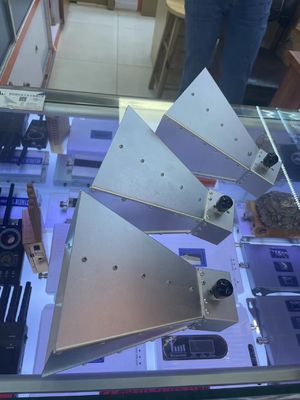

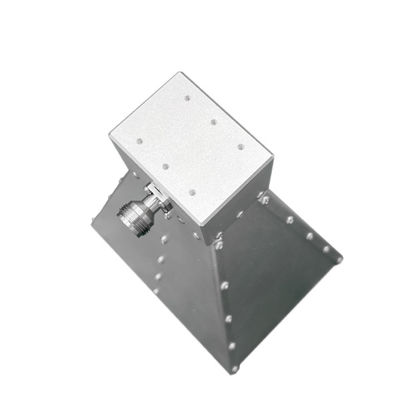

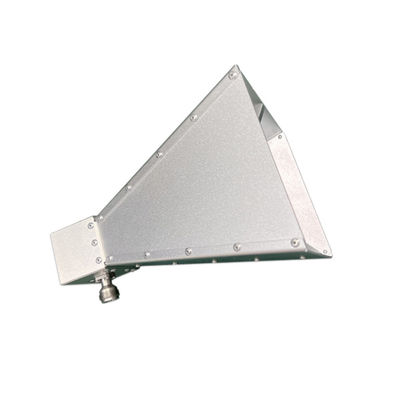

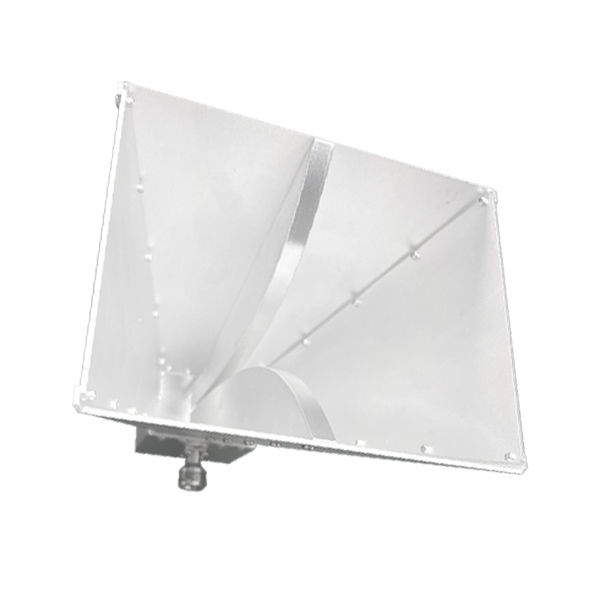

Product Visuals
18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV 0
Simulated Data
18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV 1 18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV 2 18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV 3

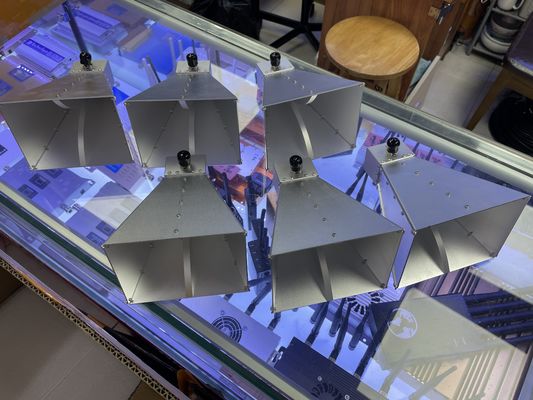

Company Product
18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV 4
Packing and Delivery
18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV 5
