Anti Drone Antenna
Created with Pixso. 600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain

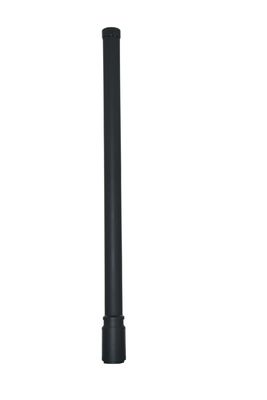

600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain
  • name
  • name
  • name
  • name
  • name

600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain

Brand Name: LDSK
MOQ: 2 piece
Delivery Time: 5-8 workdays
Payment Terms: D/A, D/P, T/T, Western Union， Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Angle:
Full 360° (All- Airspace)
Input Connector Type:
N-J (Embedded)
Transport Package:
Carton
Specification:
660x360x340mm
Origin:
China
Package Gross Weight:
0.550kg
Weight:
500g
Frequency:
5.2g 5.8g
Function:
Amplify The Distance Of The Anti-Drone Module
Samples:
US$ 15/Piece
Customization:
Available | Customized Request
Supply Ability:
5000pcs per month
Highlight:

600mm Omni Directional Fiberglass Antenna

,

5.2g 5.8g Anti Drone Antenna

,

50W Omni Directional Fiberglass Antenna

Product Description

High Gain 50W 20*600mm 5.2g 5.8g Omni Directional Fiberglass Antenna with 10dBi Gain


Parameters
Frequency Range 5.2G 5.8G
Gain(dBi) 10±1dBi
VSWR ≤2.0
Polarization Vertical
 Horizontal Beam width(0º) 360º
Vertical Beam width(0º) 9±3º
Ovality(dB) ±2dB
Input Impedance(Ω) 50Ω
Maximum input power(W) 100W
Input connector type N-J (embedded)
Lightning Protection DC Grounding
Dimensions­mm(Diameter * Length) 20*600mm
Packing size(mm) 660*360*340mm
Antenna weight(kg) 0.5±0.1KG
Rated Wind Velocity(m/s) 36.9m/s
Operational Humidity(%) 10º-95º
Radome Color Black
Radome material Fiberglass
Operating temperature(ºC) -30~65º
Installation Method Machine mounting
600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain 0
Product Description

600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain 1600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain 2                  600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain 3







Packing & Delivery
Quantity (sets)
> 500
> 1000
Others
Lead time (days)
7 days
about 7-14 days
Negociation

600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain 4
