13-22 Frequency Bands Long-Range Drone Spoofer with 5km-20km Customizable Range and IP65 Waterproof GNSS Deception Device for Anti-Drone Systems
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | Ladasky |
| Model Number | LDSK-AY06/LDSK-AY13/LDSK-AY22 |
| Minimum Order Quantity | 1 |
| Price | $7858-$25000 |
| Delivery Time | 5-8day |
| Payment Terms | L/C,D/A,T/T,D/P,Western Union, |
| Supply Ability | 5000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Range | 5km-20km Customizable | Spoofing Methods | Heading Guidance, Deterrence, Forced Landing, And Rapid Crashing. |
|---|---|---|---|
| Navigation Signals | GPS, BDS, GLONASS, Galileo, QZSS, And IRNSS（Customizable） | Bands | 6, 13, 22 Bands Customizable |
| Dimensions | 430*370*175mm (without Antenna) | External Supply Voltage | AC 110-300V |
| IP Grade | IP65 | ||
| Highlight | long-range drone spoofer,customizable GNSS deception device,portable anti-drone detector |
||
Product Description
Professional GNSS Drone Spoofer
13-22 Frequency Bands Long-Range Spoofing with customizable ranges of 5km, 10km, and 20km. Advanced drone countermeasure equipment for security, defense, and anti-drone systems.
Product Overview
Factory-direct counter-UAV GNSS spoofer designed for professional security applications. This equipment provides reliable navigation satellite deception for anti-drone systems in critical infrastructure protection.
Key Applications
Oil and petrochemical facilities, power plants, public security operations, and military installations.
Design Features
Compact, lightweight design with reliable performance and user-friendly operation for rapid deployment and integration.
Technology & Operation
Utilizes advanced navigation satellite signal simulation technology to broadcast signals identical to operational navigation satellites. When drones receive these signals, they use them for positioning, enabling multiple deception strategies.
Main Functions
- Sending false GNSS signals without white noise or signal pollution
- Drive away and forced landing capabilities
- Force drones to fly in specific directions, land directly, or hover
- Precision capture with radar integration
Technical Specifications
Performance Parameters
| Item | Specification |
|---|---|
| Deception Distance | Customizable according to customer requirements |
| Supported GNSS Systems | GPS, BDS, GLONASS, Galileo |
| Receiving Frequencies | BDS-B1, GPS-L1/L2/L5, GLONASS-L1, Galileo-E1 |
| Attenuation Adjustment Range | 80 dB |
| Attenuation Resolution | 1 dB |
| Power-on Startup Time | 60 s |
| GNSS Signal Synchronization Time | < 180 s |
GNSS Signal Simulation Capability
| Satellite System | Frequency Band | Channels |
|---|---|---|
| BDS | B1I | 16 |
| GPS | L1 C/A | 16 |
| GPS | L2 | 16 |
| GPS | L5 | 16 |
| GLONASS | L1 | 16 |
| Galileo | E1 | 16 |
Distance vs Output Power Reference
| Deception Distance | Output Power |
|---|---|
| 5 km | 5 W |
| 10 km | 20 W |
| 20 km | 50 W |

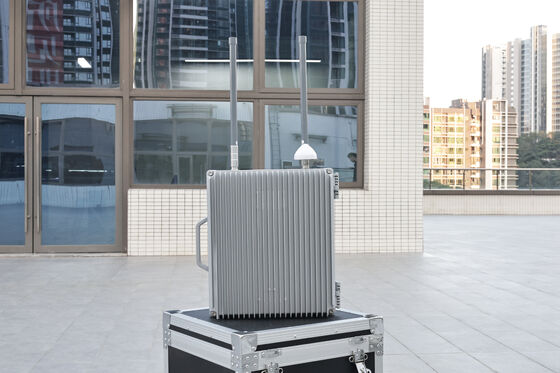

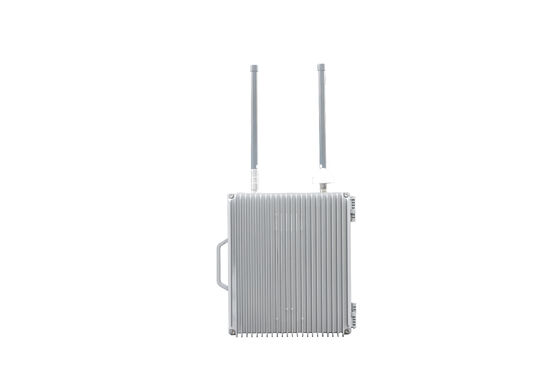

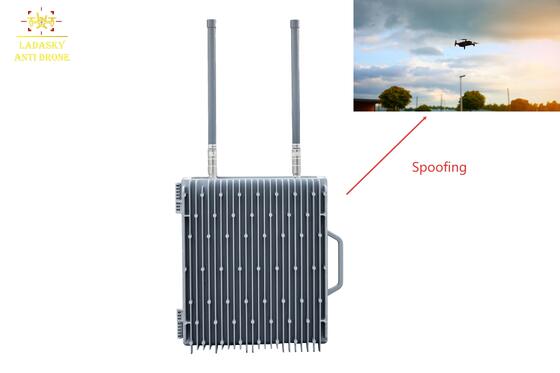

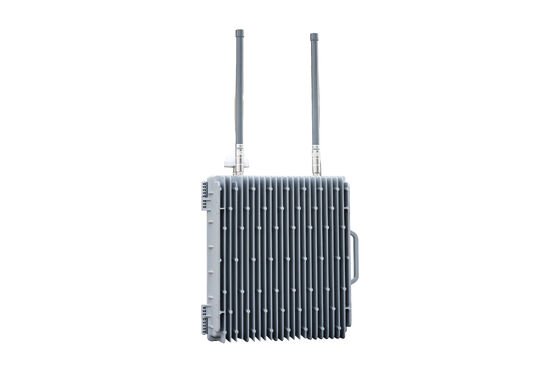

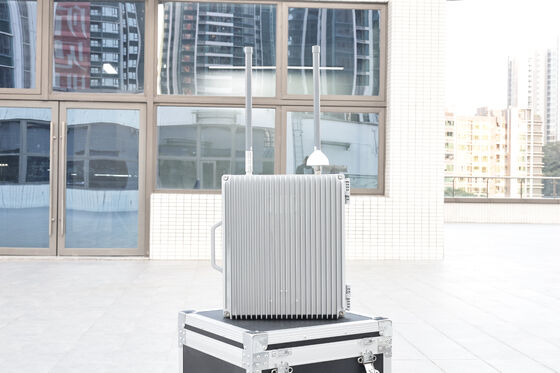

Product Images
Frequently Asked Questions
Are you a factory or trading company?
We are a factory located in Shenzhen City, China. Welcome to visit us.
Why Choose Us?
- Excellent Products: Effective, Popular, Affordable
- Fast Delivery: Priority Production for Urgent/Bulk Orders
- After-Sales Service: Free Replacement for Faulty Products
What can you buy from us?
- Jamming/Detection Module
- Drone Jammer
- Drone Detector
- Integrated detection and jamming device
What is the process of placing an order?
Communication → Payment → Production → Shipment
How about the shipping time and shipping method?
Typically 5-10 business days (depending on the product). We support almost any shipping method you require.
How to contact us?
Please leave your email address/WhatsApp number, and we will contact you.
Ordering Process
- Send us products you're interested in
- We provide detailed information and quotations
- Consult with us about any product questions
- Confirm order and receive payment information
- We send package confirmation and tracking number
- Provide feedback after receiving goods
