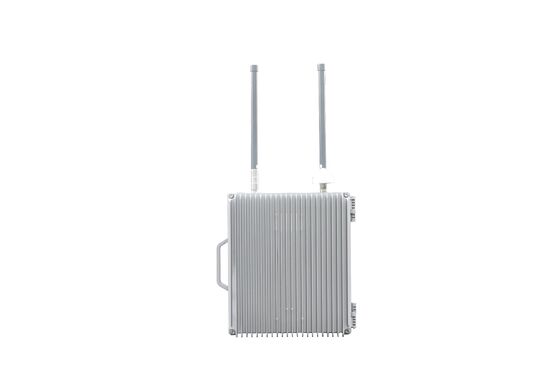

Factory Direct GNSS Spoofer with 5km-20km Customizable Range for Anti-Drone Systems Supporting GPS, BDS, GLONASS, Galileo and IP65 Protection
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | Ladasky |
| Model Number | LDSK-AY06/LDSK-AY13/LDSK-AY22 |
| Minimum Order Quantity | 1 |
| Price | $7858-$25000 |
| Delivery Time | 5-8day |
| Payment Terms | L/C,D/A,T/T,D/P,Western Union,MoneyGram |
| Supply Ability | 5000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Range | 5km-20km Customizable | Spoofing Methods | Heading Guidance, Deterrence, Forced Landing, And Rapid Crashing. |
|---|---|---|---|
| Navigation Signals | GPS, BDS, GLONASS, Galileo, QZSS, And IRNSS（Customizable） | Dimensions | 430*370*175mm (without Antenna) |
| External Supply Voltage | AC 110-300V | IP Grade | IP65 |
| Highlight | 5km-20km customizable range GNSS Spoofer,GPS,BDS,GLONASS,Galileo Anti-Drone System,IP65 protected Navigation Satellite Deception Equipment |
||
Product Description
Factory Direct Counter-UAV GNSS Spoofer
Professional GNSS Spoofing & Navigation Satellite Deception Security Equipment for Anti-Drone Systems
Product Overview
This professional counter-drone equipment is specifically designed for security applications in oil and petrochemical facilities, power plants, public security operations, and military installations. Featuring a compact, lightweight design with reliable performance and user-friendly operation, it enables rapid deployment and integration.
Utilizing advanced navigation satellite signal simulation technology, the system broadcasts simulated satellite signals identical to operational navigation satellites. When drones receive these signals, they use them for positioning, allowing the system to implement multiple deception strategies including heading guidance, deterrence, forced landing, and rapid crash protocols.
Key Features
- Supports signal reception and simulated transmission from all four major global navigation satellite systems, plus commonly used frequencies in Japan and India
- Performs navigation deception on UAVs relying on satellite navigation, achieving objectives including forced landing, heading guidance, takeoff prohibition, and signal interference
- Compatible with external direction finding modules for target azimuth identification and horizontal movement control
- Supports external command control for arbitrary navigation signal combination transmission
- Configurable position coordinates via external commands or built-in fixed coordinates
- Adjustable simulation parameters including signal delay, motion speed, and acceleration
- Supports preset trajectories such as linear motion and circular motion
- Accepts externally added motion trajectories; calculates and outputs corresponding navigation satellite signals
- Operates in both real-time ephemeris mode and permanent ephemeris mode
- Provides satellite navigation signal suppression and interference output capabilities
- Includes network secondary development control interface for system integration
Technical Specifications
Performance Parameters
| Item | Specification |
|---|---|
| Deception Distance | Customizable according to customer requirements |
| Supported GNSS Systems | GPS, BDS, GLONASS, Galileo |
| Receiving Frequencies | BDS-B1, GPS-L1 / L2 / L5, GLONASS-L1, Galileo-E1 |
| Attenuation Adjustment Range | 80 dB |
| Attenuation Resolution | 1 dB |
| Power-on Startup Time | 60 s |
| GNSS Signal Synchronization Time | < 180 s |
GNSS Signal Simulation Capability
| No. | Satellite System | Frequency Band | Channels |
|---|---|---|---|
| 1 | BDS | B1I | 16 |
| 2 | GPS | L1 C/A | 16 |
| 3 | GPS | L2 | 16 |
| 4 | GPS | L5 | 16 |
| 5 | GLONASS | L1 | 16 |
| 6 | Galileo | E1 | 16 |
Distance vs Output Power Reference
| Deception Distance | Output Power |
|---|---|
| 5 km | 5 W |
| 10 km | 20 W |
| 20 km | 50 W |
Product Images
