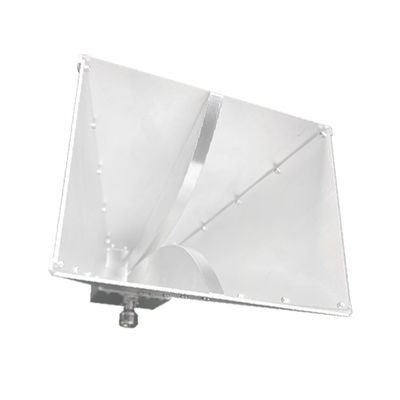

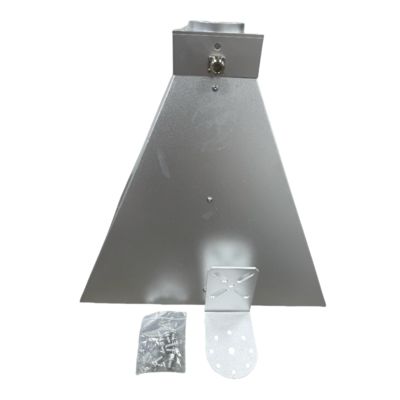

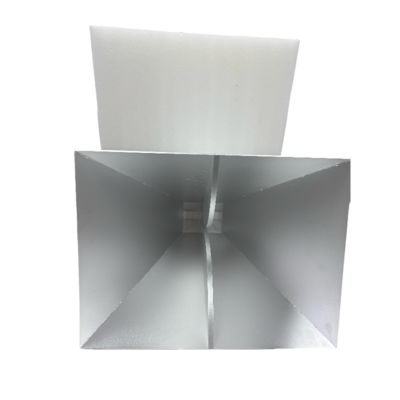

18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 1 piece |
| Price | $2285 |
| Delivery Time | 5-8 workdays |
| Payment Terms | D/A,D/P,T/T,Western Union,MoneyGram， Paypal |
| Supply Ability | 5000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wide Frequency Range (2–8GHz) | Supports Multiple RF Bands For Drone Detection, Radar, And Spectrum Monitoring. | High Gain (18dBi) | Provides Strong Directional Performance, Ensuring Precise Signal Targeting And Long-range Coverage. |
|---|---|---|---|
| Directional Radiation Pattern | Ideal For Anti-drone And Counter-UAV Systems Requiring Focused Signal Transmission Or Reception. | Versatile Applications | Perfect For Drone Defense Systems, EMC Testing, Radar Calibration, RF Measurement, And Research Labs. |
| Highlight | 18dBi horn antenna 2-8GHz,high-gain directional antenna UAV detection,wideband horn antenna wireless communication |
||
Product Description
How to contact us?
Email: chrissy@ladaskytech.com
Phone/wechat/whatsapp: +86 13556865442
18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV Communication
Product Specifications
| Attribute | Value |
|---|---|
| Frequency Range | 2-8Ghz |
| Gain | 18 DBi |
| VSWR | 1.4 Typ. |
| Polarization | Linear |
| Cross Pol. Isolation | 50Typ. |
| 3dB Beamwidth | H-Plane: 29-17 |
| Connector | SMA-Female |
| Finishing | Paint Black |
| Material | Al |
| Size | 765.99*439.92*439.92mm |
| Weight | 7.415KG |
Product Highlights
- UAV Communication Fiberglass Omni Antenna
- Uav Defense Antenna 60cm
- Anti Uav Fiberglass Omni Antenna
Detailed Specifications
| Parameters | Specifications | Units |
|---|---|---|
| Frequency Range | 2-8 | GHz |
| Gain | 18 Typ. | dBi |
| VSWR | 1.4 Typ. | |
| Polarization | Linear | |
| Cross Pol. Isolation | 50Typ. | dB |
| 3dB Beamwidth | E-Plane: 29-12 H-Plane: 29-17 |
deg |
