Advanced Drone Signal Detector Briefcase Wideband 400MHz-6GHz Long-Range 8km IP65 Protection DJI Phantom 4PV2 Detection

Products

Stationary Drone Detection System

Advanced Drone Signal Detector Briefcase Wideband 400MHz-6GHz Long-Range 8km IP65 Protection DJI Phantom 4PV2 Detection

MOQ:	1 piece
Standard Packaging:	590mm (L) × 490mm (W) × 270mm (H) 20kg
Delivery Period:	1-3 workdays
Payment Method:	D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Capacity:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

LDSK

Model NO.:

LDSKC05

Working Mode:

RF Sensing

Drone Detection:

DJI Phantom 4PV2, DJI Mavic 2, DJI Mavic 3, DJI FPV, DJI 2S, DJI M300, Etc

Frequency:

45MHz ~ 6000MHz Full Band

Range:

2-8km

Working Time:

18 Hours (Ideal Conditions)

Product Name:

Portable Drone Spectrum Detector

Package Size:

590mm (L) × 490mm (W) × 270mm (H)

Weight:

16kg

Minimum Order Quantity:

1 piece

Packaging Details:

590mm (L) × 490mm (W) × 270mm (H) 20kg

Delivery Time:

1-3 workdays

Payment Terms:

D/A, D/P, T/T, Western Union, MoneyGram， Paypal

Supply Ability:

5000pcs per month

Highlight:

IP65 Drone Signal Detector

DJI Phantom 4PV2 Drone Detector

6GHz Drone Signal Detector

Product Description

Please leave your WhatsApp and Email,we will contact you!

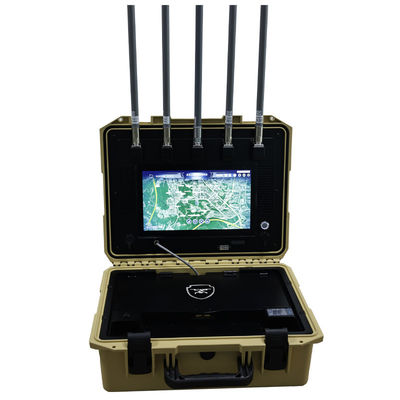

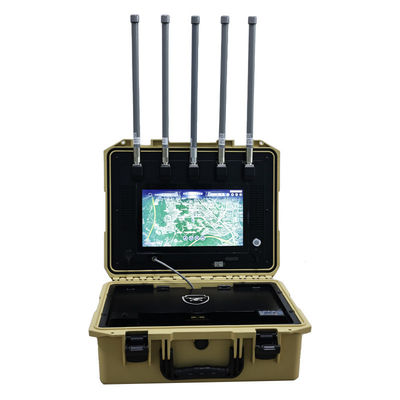

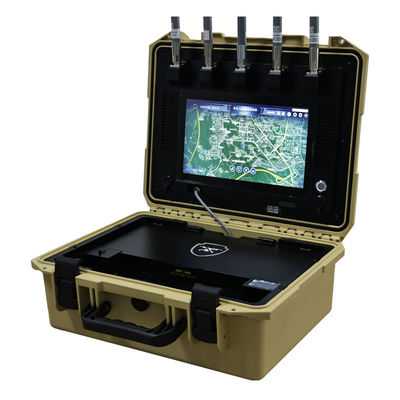

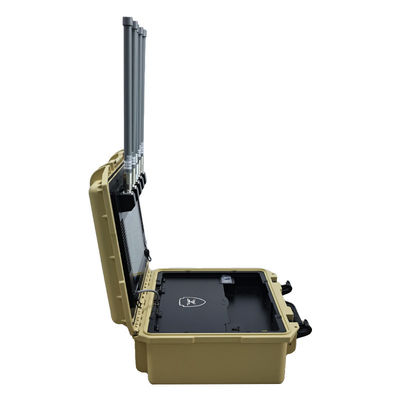

LDSKC05 portable drone detector Gray is a briefcase style drone detection device for drone monitoring.

The portable radio positioning detector integrates drone radio detection, direction-finding, and protocol decoding and positioning functions. By utilizing omnidirectional radio frequency scanning for feature recognition and decoding, it detects unauthorized drones and issues an alert upon target identification.

It supports handheld directional antenna operation, using amplitude comparison for direction-finding, and can also decode DJI drone beacon signals, extracting information from the radio messages. The extracted data includes, but is not limited to the drone model, serial number (SN), latitude, longitude, orientation, pilot location, and home point. The system features long detection range, high identification accuracy, precise positioning, real-time flight path indication, and audio/visual alerts. All detection information is intuitively displayed on the LCD screen.

The entire system adopts a modular design with a portable suitcase structure, making it highly mobile. It features a user-friendly software interface for easy operation and supports 24/7 uninterrupted monitoring and recording.

The device is capable of simultaneously locating multiple DJI drones and their controllers within a certain range. Additionally, it continuously monitors the surrounding RF environment and displays the geographic positions of detected drones and remote controllers.UAV.

Parameter	Specification
Device Name	Portable Drone Spectrum Detector
Detection Range	2 - 8 KM
Spectrum Detection Frequency Band	45MHz ~ 6000MHz
Spectrum Identification Capability	- Supports drone spectrum identification
	- Recognizes over 100 drone models
	- Supports DJI O3 and DJI O4 decryption
	- Supports RID data reception
Supported Drone Models for Positioning	DJI Phantom 4PV2, DJI Mavic 2, DJI Mavic 3, DJI FPV, DJI 2S, DJI M300, etc.
Screen Size	12.6 inches
Screen Resolution	2560 × 1600
Directional Antenna Dimensions	162mm (L) × 100mm (W) × 82mm (H) (Flat position)
Device Dimensions	514mm (L) × 418mm (W) × 203mm (H) (Closed position)
Package Dimensions	590mm (L) × 490mm (W) × 270mm (H)
Power Consumption	40W
Total Weight	16 KG
Battery Capacity	720Wh
Operating Time (Full Charge)	18 hours (Ideal conditions)
Connectivity	Network connection (RJ45)
Network Support	4G mobile communication
Operating Temperature	-20℃ ~ +50℃
Charging Voltage	AC 220V
Protection Level	IP65

Product Technical Speficication

(1)Pilot Positioning – The device can locate and display the pilot's position in real time.

(2)Drone Positioning – Capable of detecting and tracking the drone's flight location.

(3)Unique Identification – Identifies the drone’s unique serial number (SN).

(4)Network Expansion – Supports network integration with backend management platforms and multi-device collaboration for large-area coverage.

(5)Rapid Deployment – Deploys in seconds, ready to use upon startup.

(6)Portable & Compact – Suitcase-style design, lightweight and easy to carry.

Lead time

Quantity(PCS)	<100pcs	<500	500-1000	>1000
Lead time(Days)	3	3-5	7-12	To be negotiated

Customization

Item	Logo	Frequency	Power	Packing
MOQ(PCS)	1	1	1	1
