1.5KM Range 70-6200MHz Portable Handheld Drone Detector Anti Drone System for UAV Detection
| Place of Origin | GuangDong,China |
|---|---|
| Brand Name | LDSK |
| Model Number | LDSK-TZ-40D |
| Minimum Order Quantity | 1 |
| Packaging Details | Box |
| Delivery Time | 7 working days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,Alibaba |
| Supply Ability | 5000 each month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency Range | 70–62000MHz | Detection Range | ≥1.5 Km |
|---|---|---|---|
| Weight | ≤1.2kg | Display | Shows UAV Type, Frequency, Signal Strength, And Device Battery Level |
Product Description
Portable FPV Drone Detection & Video Capture Device
Full-Band FPV Detection, Analog Video Interception & Evidence Recording in One Portable System
Product Overview
The LDSK-TZ-40D Portable FPV Detection and Video Transmission Capture Device is an integrated counter-UAS solution designed for field operations, patrol missions, and critical asset protection.
It combines full-band RF detection, FPV analog video interception, real-time display, and video storage into a single portable unit. The system can accurately identify and analyze FPV drones, DIY drones, quadcopters, and fixed-wing UAVs, even in complex electromagnetic environments.
DR400-D enables operators to directly capture the drone’s first-person video feed, providing real-time situational awareness and reliable evidence collection.

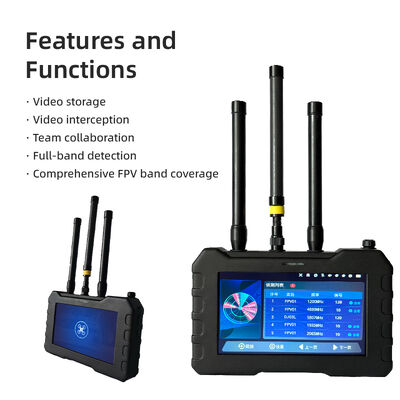

Key Features
-
Full-Band RF Detection
Continuous scanning from 70 MHz to 6.2 GHz, with customizable frequency bands. -
Comprehensive FPV Video Detection
Detects all analog FPV video transmissions within 500 MHz–6 GHz. -
Real-Time Video Interception
Captures and displays FPV video feeds for direct observation of intrusion targets. -
Video Recording & Evidence Storage
Supports onboard video storage for post-event analysis and evidence retention. -
Multi-Drone Identification
Detects mainstream commercial drones, FPV racing drones, DIY models, and fixed-wing UAVs. -
Fast Response & Multi-Target Awareness
Detection response time as low as ≤3 seconds (8 bands). -
Portable & Field-Ready Design
Lightweight handheld device with 7-inch touchscreen and long-lasting battery. -
Team Collaboration Mode (1+N)
Supports master-slave coordination and alarm linkage (optional wrist receiver).
Technical Specifications
Model: LDSK-TZ-40D
Detection Frequency Range: 70 MHz – 6.2 GHz (customizable)
FPV Video Detection Range: 500 MHz – 6 GHz

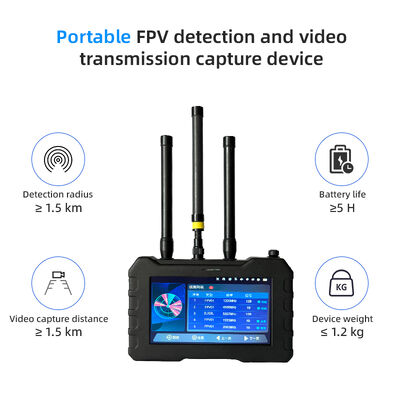

Detection Radius: ≥ 1.5 km (LOS, low-interference environment)
Video Capture Distance: ≥ 1.5 km (LOS)

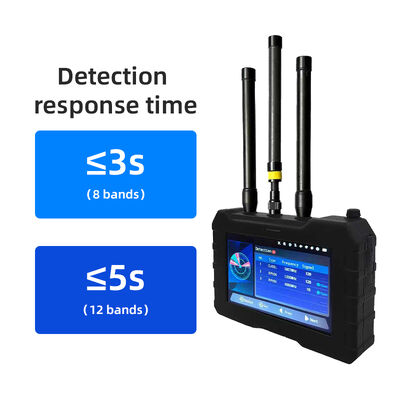

Detection Response Time: ≤ 3 s (8 bands) / ≤ 5 s (12 bands)

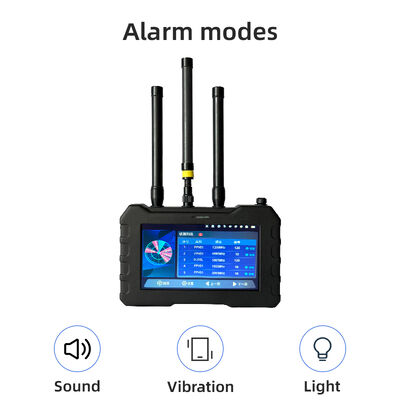

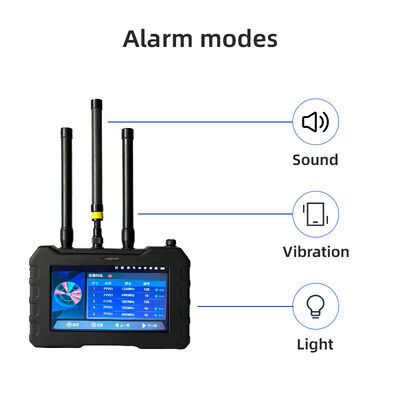

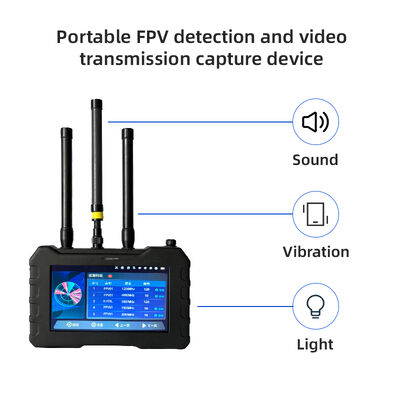

Alarm Modes: Sound, vibration, light
Display: 7-inch touch screen
Storage: ≥ 32 GB (supports up to 256 GB SD card)
Battery Capacity: 7000 mAh lithium battery
Power Supply: DC 8.4V
Weight: ≤ 1.2 kg
Dimensions: 212 × 137 × 41 mm
Product Images
Usage Scenarios
Manufacturer Information
Frequently Asked Questions
Are you a factory or trading company?
We are a factory located in Dongguan City, China.
What shipping methods are available?
We support all major shipping methods including DHL, UPS, TNT, FedEx, and sea shipment.
What is the typical delivery time?
Normal orders ship within 5-7 working days. Bulk orders may require additional time.
Can I customize labels and logos?
Yes, we support custom labeling and branding.
What is your minimum order quantity?
MOQ ranges from 1 to 20 sets depending on your requirements.
What if I receive a defective product?
We maintain strict quality control but will address any issues promptly with replacements or compensation.
