Full Band Frequency 45MHz 6000MHz Portable Drone Detector for Radio Frequency Anti-Drone System
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 1 piece |
| Price | $11500-$12500 |
| Packaging Details | 590mm (L) × 490mm (W) × 270mm (H) 20kg |
| Delivery Time | 1-3 workdays |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram， Paypal |
| Supply Ability | 5000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | LDSKC05 | Working Mode | RF Sensing |
|---|---|---|---|
| Drone Detection | DJI Phantom 4PV2, DJI Mavic 2, DJI Mavic 3, DJI FPV, DJI 2S, DJI M300, Etc | Frequency | 45MHz ~ 6000MHz Full Band |
| Range | 2-8km | Working Time | 18 Hours (Ideal Conditions) |
| Product Name | Portable Drone Spectrum Detector | Package Size | 590mm (L) × 490mm (W) × 270mm (H) |
| Weight | 16kg | ||
| Highlight | 6000MHz Portable Drone Detector,Radio Frequency Portable Drone Detector,45MHz Portable Drone Detector |
||
Product Description

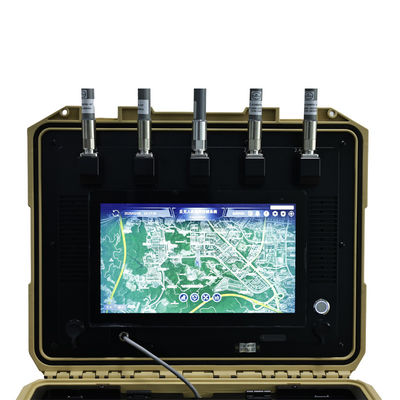

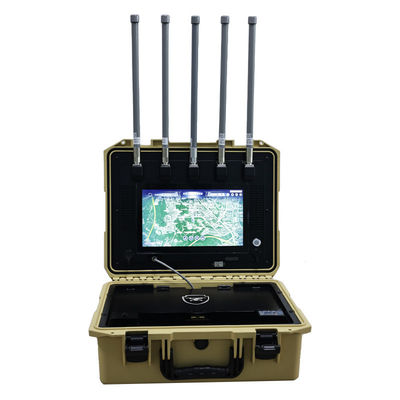

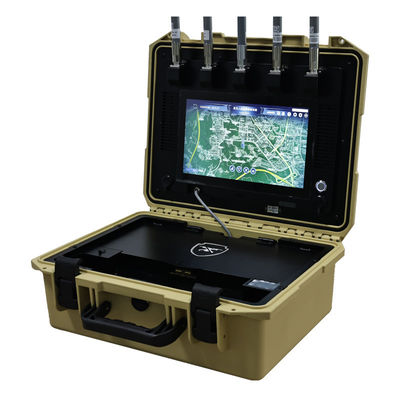

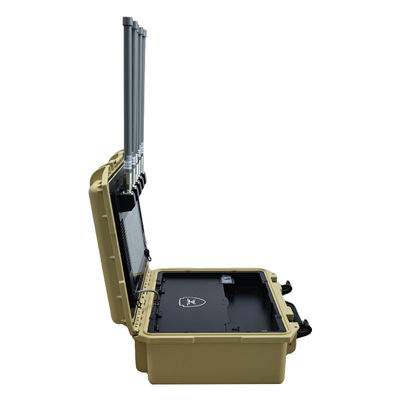

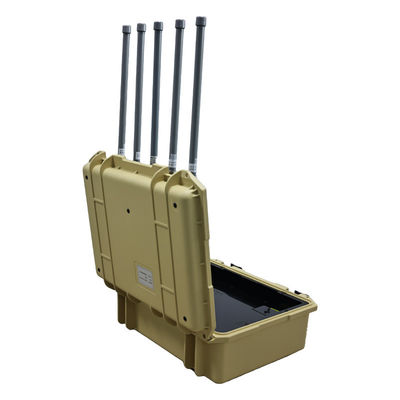

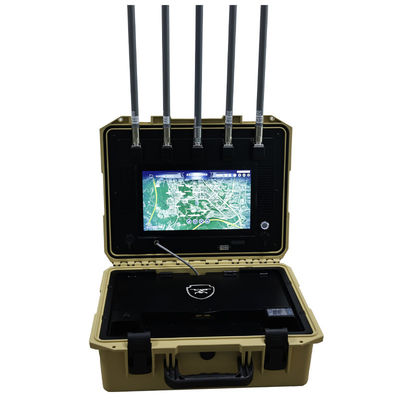

LDSKC05 portable drone detector Gray is a briefcase style drone detection device for drone monitoring.
The portable radio positioning detector integrates drone radio detection, direction-finding, and protocol decoding and positioning functions. By utilizing omnidirectional radio frequency scanning for feature recognition and decoding, it detects unauthorized drones and issues an alert upon target identification.
It supports handheld directional antenna operation, using amplitude comparison for direction-finding, and can also decode DJI drone beacon signals, extracting information from the radio messages. The extracted data includes, but is not limited to the drone model, serial number (SN), latitude, longitude, orientation, pilot location, and home point. The system features long detection range, high identification accuracy, precise positioning, real-time flight path indication, and audio/visual alerts. All detection information is intuitively displayed on the LCD screen.
The entire system adopts a modular design with a portable suitcase structure, making it highly mobile. It features a user-friendly software interface for easy operation and supports 24/7 uninterrupted monitoring and recording.
The device is capable of simultaneously locating multiple DJI drones and their controllers within a certain range. Additionally, it continuously monitors the surrounding RF environment and displays the geographic positions of detected drones and remote controllers.UAV.
| Parameter | Specification |
| Device Name | Portable Drone Spectrum Detector |
| Detection Range | 2 - 8 KM |
| Spectrum Detection Frequency Band | 45MHz ~ 6000MHz |
| Spectrum Identification Capability | - Supports drone spectrum identification |
| - Recognizes over 100 drone models | |
| - Supports DJI O3 and DJI O4 decryption | |
| - Supports RID data reception | |
| Supported Drone Models for Positioning | DJI Phantom 4PV2, DJI Mavic 2, DJI Mavic 3, DJI FPV, DJI 2S, DJI M300, etc. |
| Screen Size | 12.6 inches |
| Screen Resolution | 2560 × 1600 |
| Directional Antenna Dimensions | 162mm (L) × 100mm (W) × 82mm (H) (Flat position) |
| Device Dimensions | 514mm (L) × 418mm (W) × 203mm (H) (Closed position) |
| Package Dimensions | 590mm (L) × 490mm (W) × 270mm (H) |
| Power Consumption | 40W |
| Total Weight | 16 KG |
| Battery Capacity | 720Wh |
| Operating Time (Full Charge) | 18 hours (Ideal conditions) |
| Connectivity | Network connection (RJ45) |
| Network Support | 4G mobile communication |
| Operating Temperature | -20℃ ~ +50℃ |
| Charging Voltage | AC 220V |
| Protection Level | IP65 |
Product Technical Speficication
(1)Pilot Positioning – The device can locate and display the pilot's position in real time.
(2)Drone Positioning – Capable of detecting and tracking the drone's flight location.
(3)Unique Identification – Identifies the drone’s unique serial number (SN).
(4)Network Expansion – Supports network integration with backend management platforms and multi-device collaboration for large-area coverage.
(5)Rapid Deployment – Deploys in seconds, ready to use upon startup.
(6)Portable & Compact – Suitcase-style design, lightweight and easy to carry.
Lead time
| Quantity(PCS) | <100pcs | <500 | 500-1000 | >1000 |
| Lead time(Days) | 3 | 3-5 | 7-12 | To be negotiated |
Customization
| Item | Logo | Frequency | Power | Packing |
| MOQ(PCS) | 1 | 1 | 1 | 1 |
