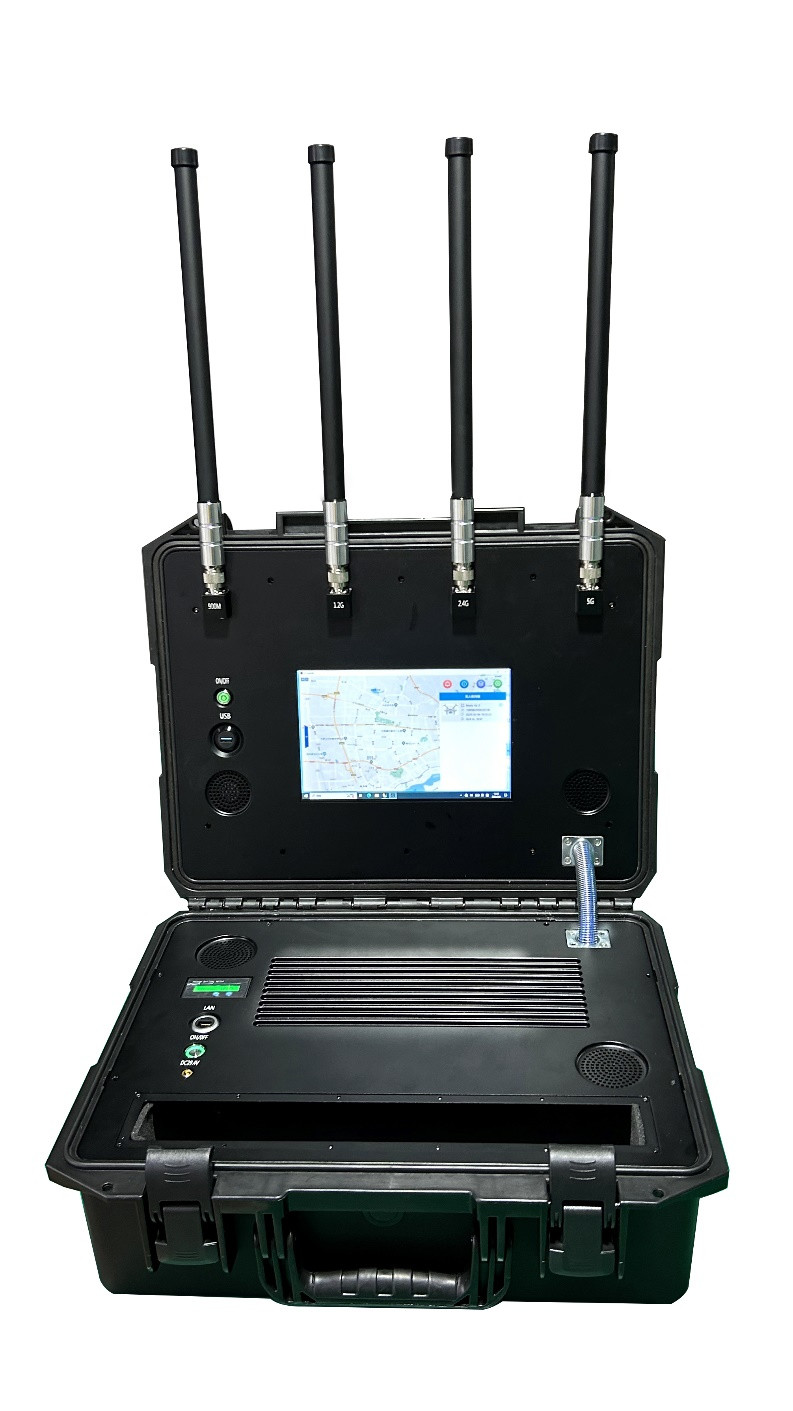

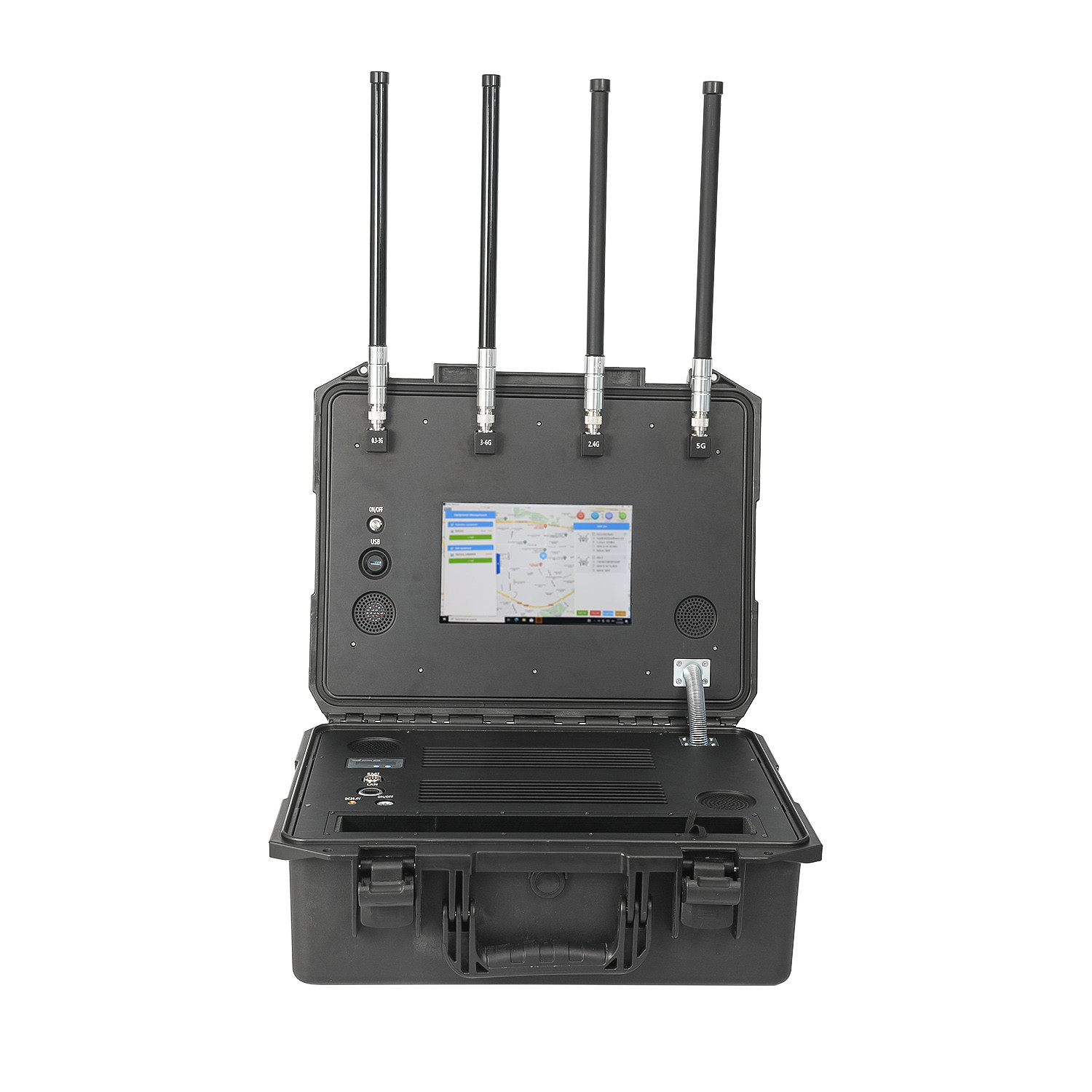

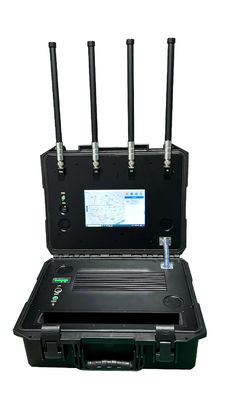

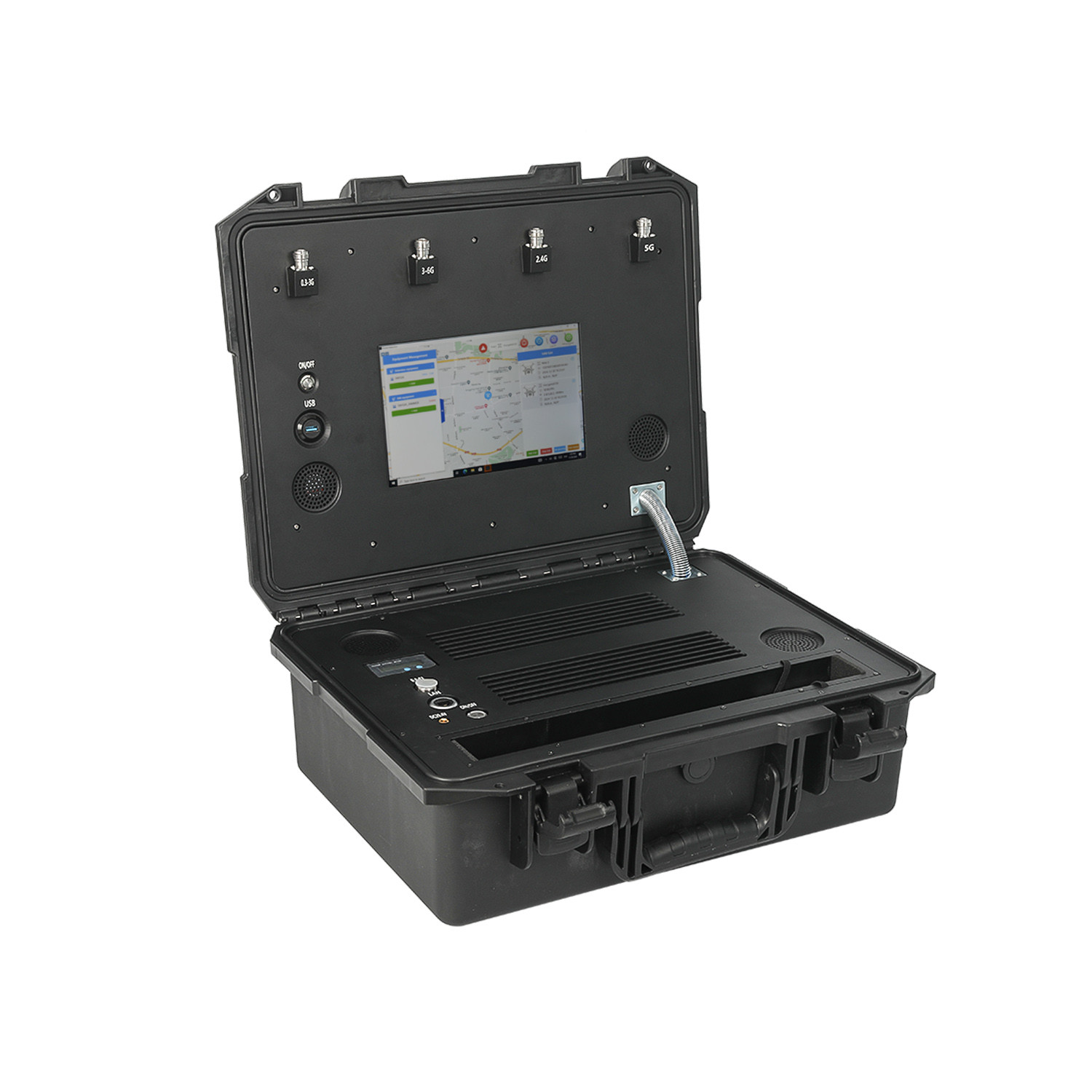

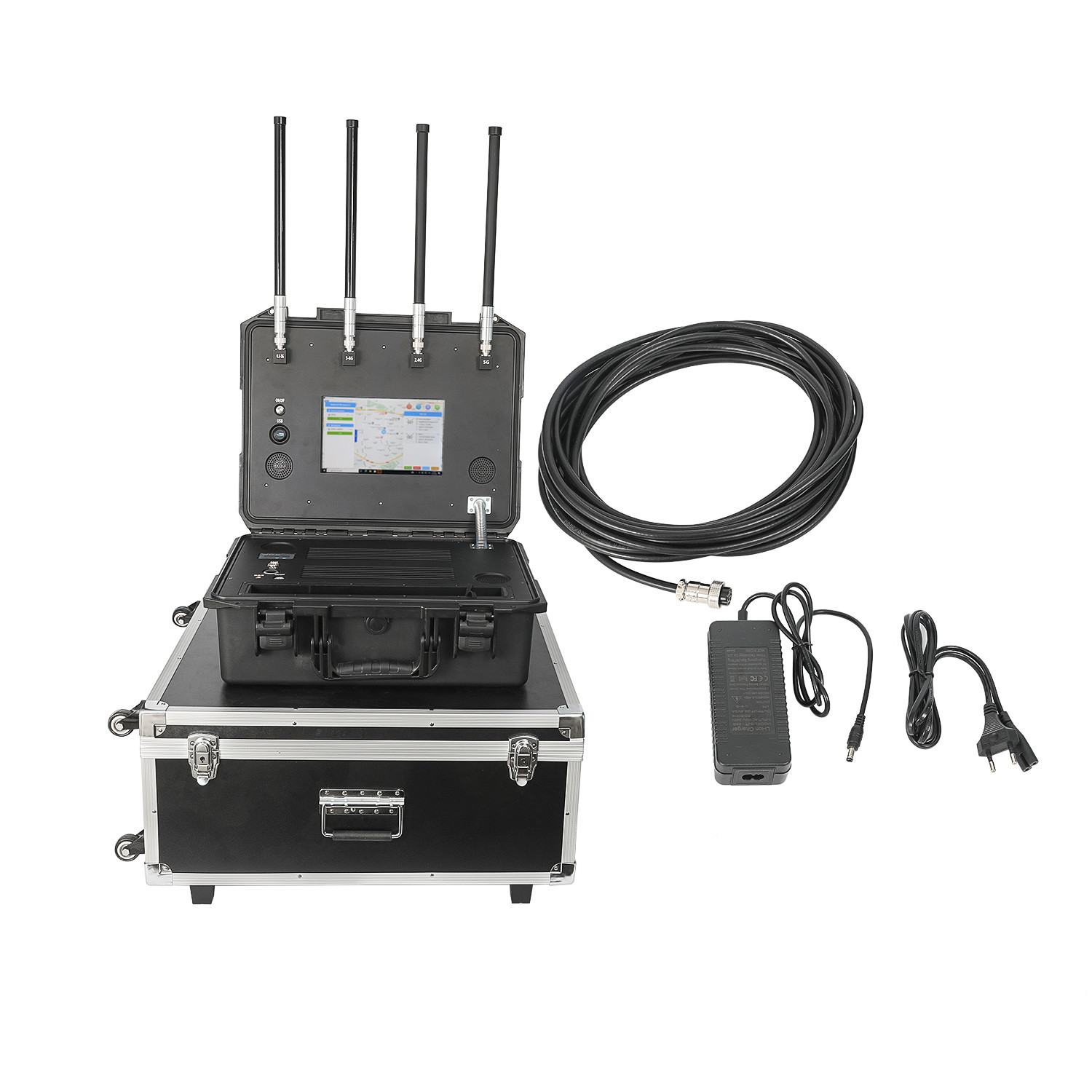

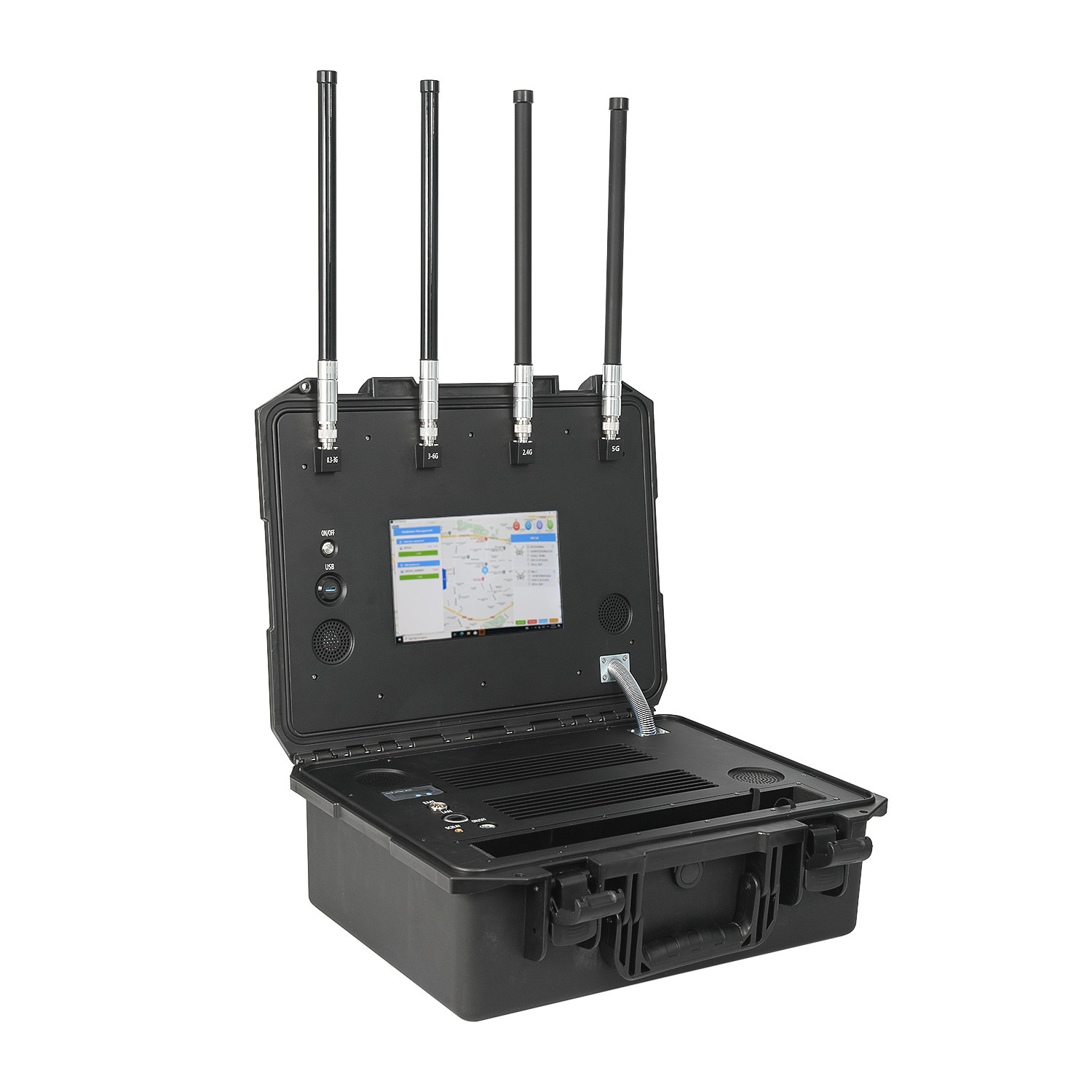

Portable Drone Detection Suitcase: Mobile Anti-Drone Solution

Detail Information

Place of Origin:

Shenzhen

Frequency:

300-6000MHz

Detection Distance:

1-6KM

Drone Swarm Detection:

≥ 5 Drones

Scope:

360°Full Coverage

Working Hours:

4 Hours

Weight:

16.5 KG

Supply Ability:

50 pcs per month

Highlight:

Mobile Drone Detection Suitcase

Product Description

Item	Specification
Detection Drone Model	DJI,AUTEL,PARROT,FIMI,WIFI,FPV etc
Frequency	300-6000MHz
Detection Distance	1-6KM(According to the surrounding environment and model)
Scope	360°Full Coverage
Drone Swarm Detection	≥ 5 Drones
Detection Refresh Time	1~6s
Whitelist Function	DJI drones can set up a whitelist to distingush between their own drones and other drones
Positioning Accuracy	10 Meters(DJI etc.)
Antenna Configuration	4 Omnidirectional antennas,300-3000MHz,2400-2484MHz,5000-6000MHz,3000-6000MHz
Simultaneous Processing Bandwidth	100MHz
System Structure	Adopt multi-system structure:including message protocol analysis unit,WiFi protocol analysis unit,spectrum detection unit,analog signal detection unit,etc.
Upgrade Method	Upgrading using software packages
Screen Size	10.1 Inch
Screen Resolution	19201200/1280800 Pixel
Working Hours	~4 Hours(Operating at 20℃)
Operating Temperature	-20~45℃
Storage Temperature	-40~70℃
Power Consumption	≤100W
Battery	Built-in 24V12AH(24V15AH) Lithium Battery
External Power Supply	AC/DC Can be customized according to user

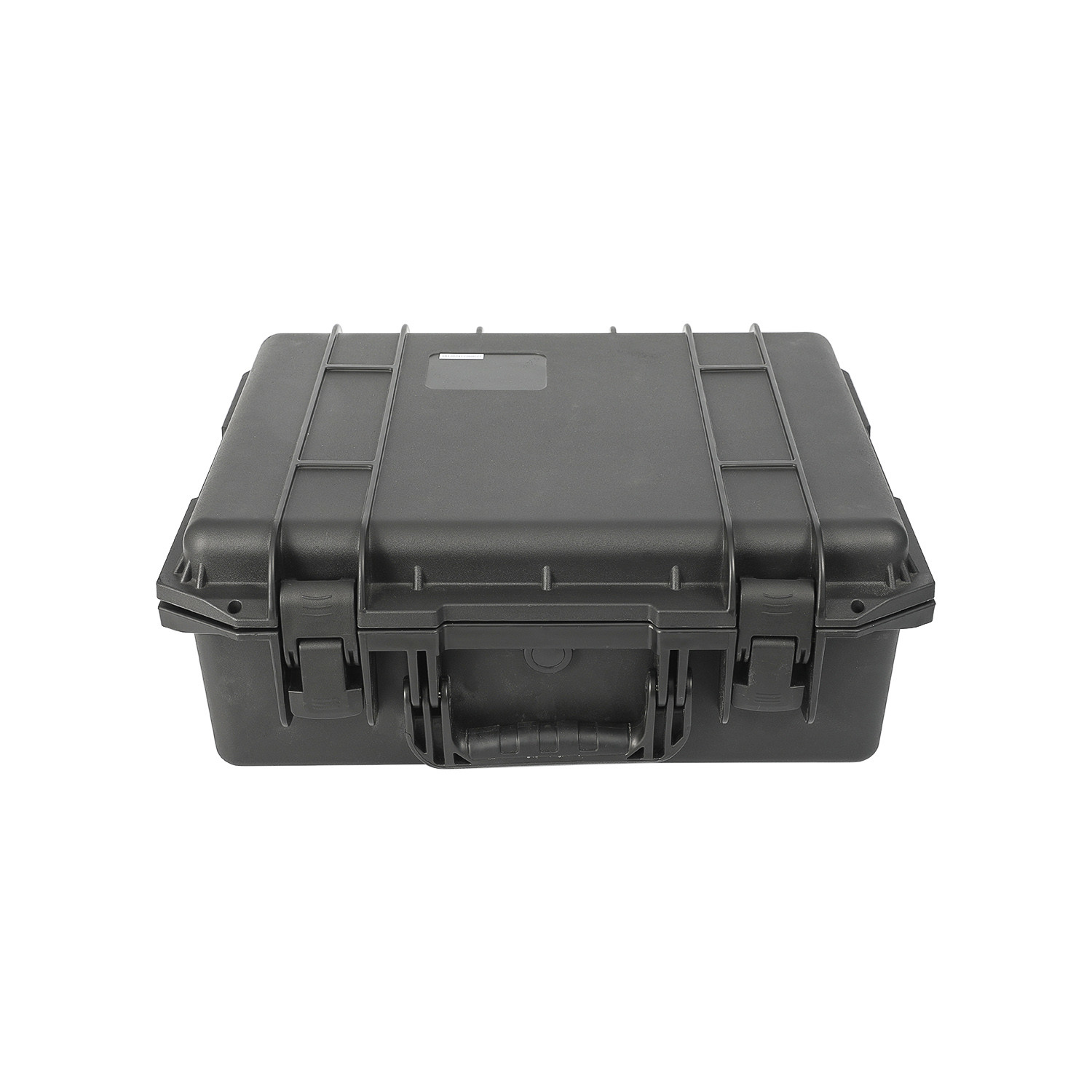

Equipment Type	Suitcase form
Weight	≤16.5KG
Size	514418203MM
