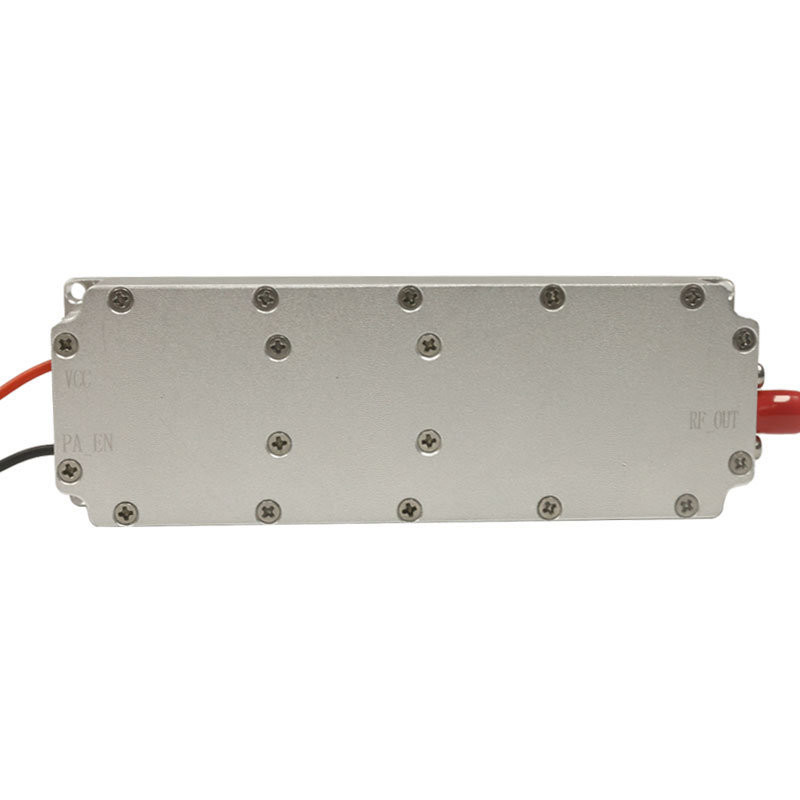

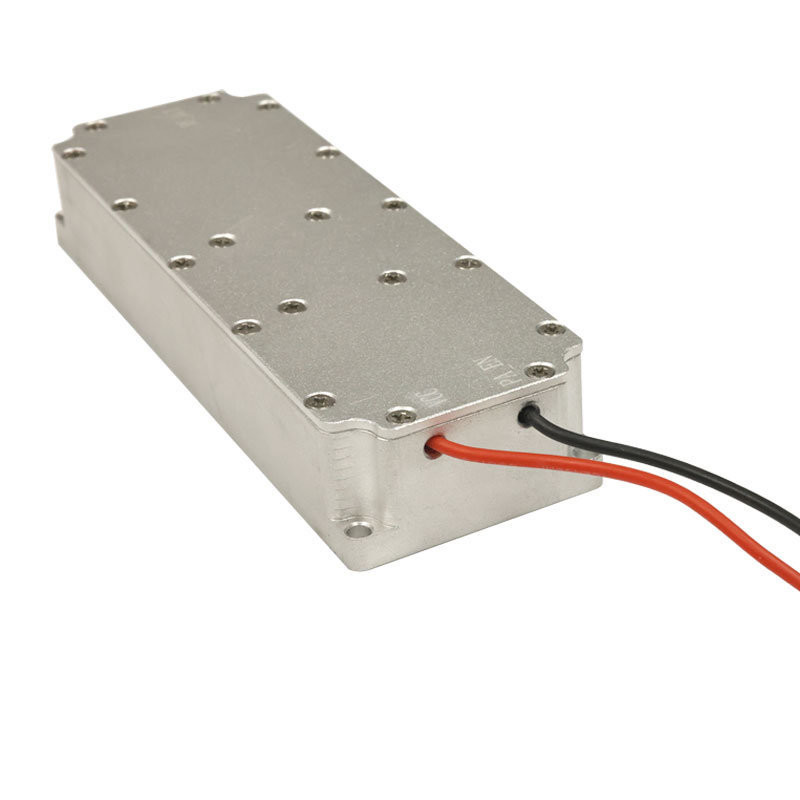

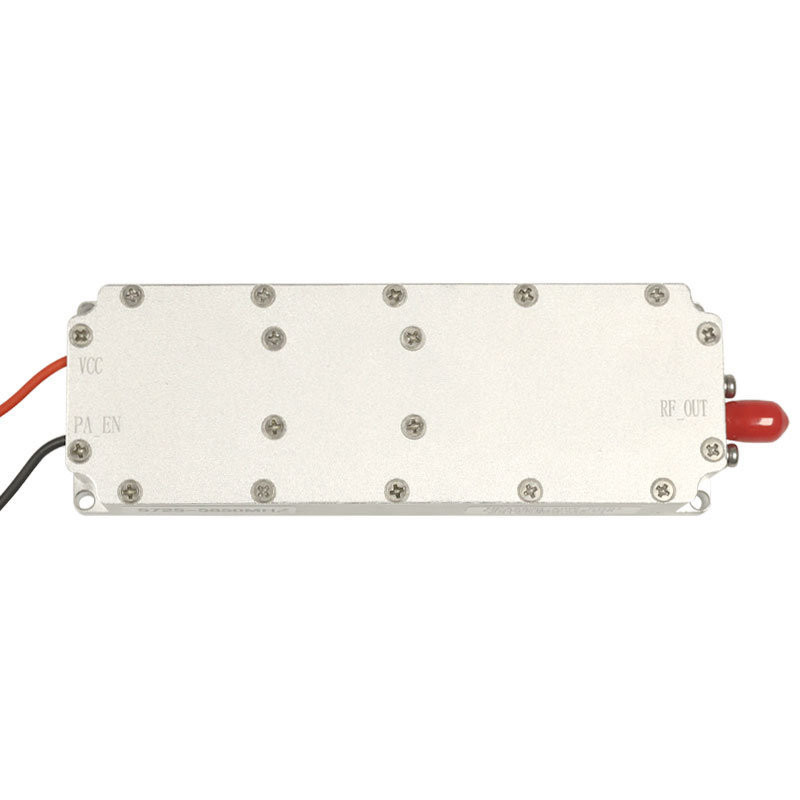

910-1050MHz 50W Anti Dji GaN Module Anti Drone Amplifier Module 24-32V

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMax Output Power | 50W | Working Efficiency | More Than 52% |
---|---|---|---|
Frequency | 910-1050MHz | Peak Gain | 47dBi |
Passband Peak To Peak Ripple | Less Than 2dB | Working Temperature | -10~+55 Degree Celcius |
Weight | 136g | Packing | Plastic Bag + Paper Box |
Transport Package | Carton Box | Specification | 29.7*131*15.5mm(excluding SMA) |
Trademark | LDSK | Origin | Guangdong |
HS Code | 8524911000 | Supply Ability | 50000 PCS/Month |
Frequency Range | WiFi | Application | All |
Working Voltage | 24-32V | Required Power Supply | More Than 3.7A |
Samples | US$ 230/Piece 1 Piece(Min.Order) | Request Sa | Customization | Available | Customized Request |
Highlight | 5.2GHz Anti Dji GaN Module,5.2GHz Drone Jamming Module,50W Anti Drone Amplifier Module |
Item name | Technical parameters |
Working frequency | 910-1050MHz |
Power | 50W |
Supply Voltage | DC 24-32V |
Max Output Power | 47 dBm |
Working Efficiency | ≥60% |
Passband Riplpe | ≤2dB |
Weight | 105 g |
Operating Temperature | -10~+55ºC |
Power supply requirements | ≥3.7A |

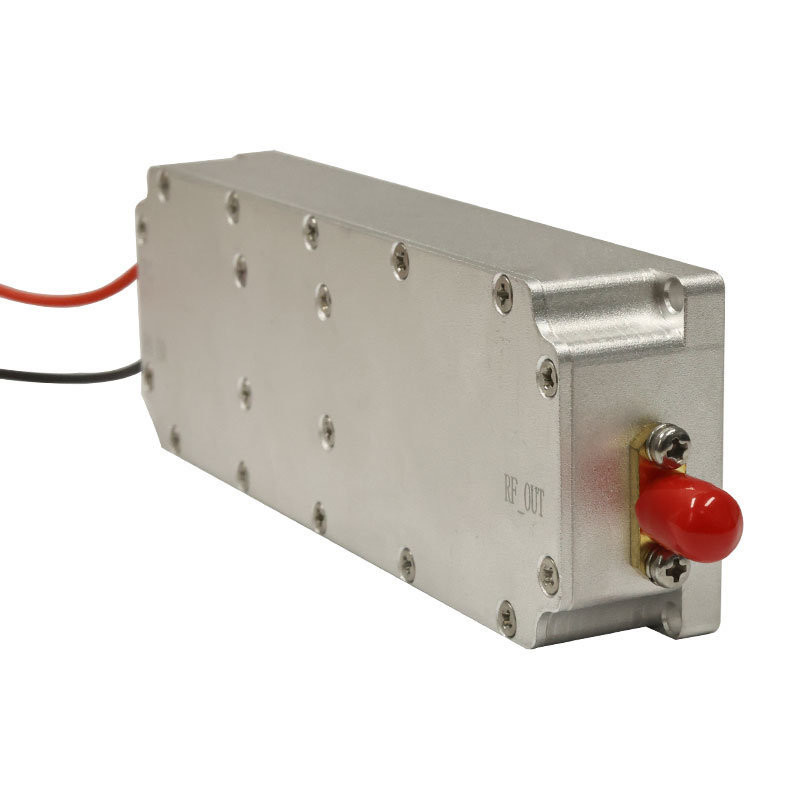

RF Connector | SMA |
Weight | 160g |
Size | 37.3*112*19.5mm (Excluding SMA) |
Connect line red | DC28-30V |
Connect line black | GND |
Connect line white | ENABLE |
Lead time
Quantity(PCS) | <100pcs | <500 | 500-1000 | >1000 |
Lead time(Days) | 3 | 3-5 | 7-12 | To be negotiated |
Customization
Item | Logo | Frequency | Power | Packing |
MOQ(PCS) | 1 | 1 | 1 | 1 |
Company profile
Shenzhen ladasky technology Co,.LTD, specializing in the field of advanced technology. Our company is located in the vibrant city of Shenzhen, known as a hub of innovation and technology in China.
Our main products include RF module and anti FPV, which are designed with cutting-edge technology and strict quality control to meet the diverse needs of our customers. The RF module offers high-performance and stable signal transmission, enabling seamless communication in various applications. The anti FPV solution provides effective protection against unauthorized interference and ensures the security and privacy of video transmission.
We pride ourselves on our strong R&D team, composed of experts and engineers with rich experience and professional knowledge in the field. They are constantly exploring and innovating to bring forth new and improved products that stay ahead of the market trends.
Our manufacturing facilities are equipped with state-of-the-art machinery and adhere to international quality standards. This ensures that every product leaving our factory is of the highest quality and reliability.
Packing and Delivery
Selling Units: | Single item |
Single package size: | 20X10X5 cm |
Single gross weight: | 0.2kg |
Package Type: | Each piece is individually packed into a bag and then packed into a carton. |
