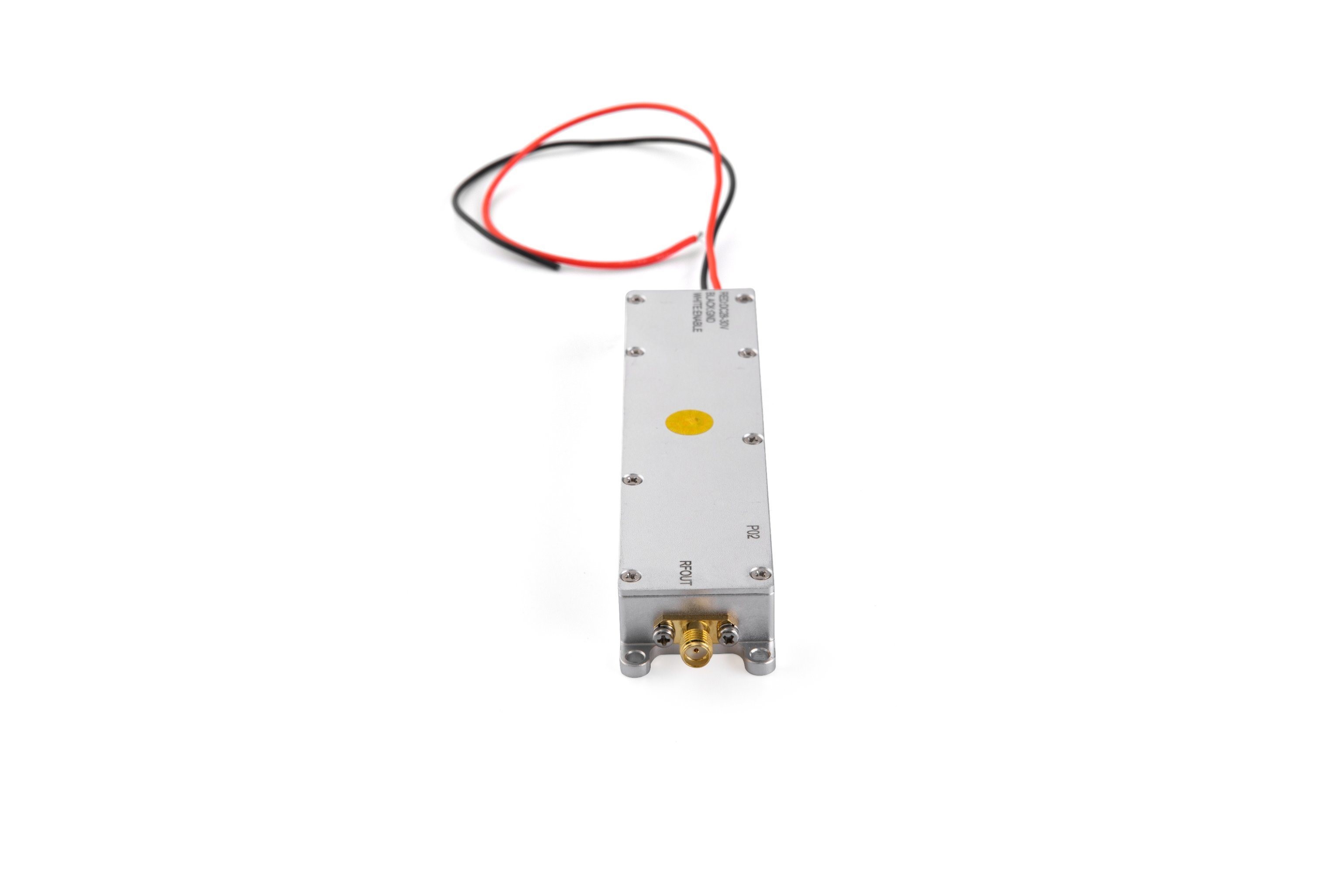

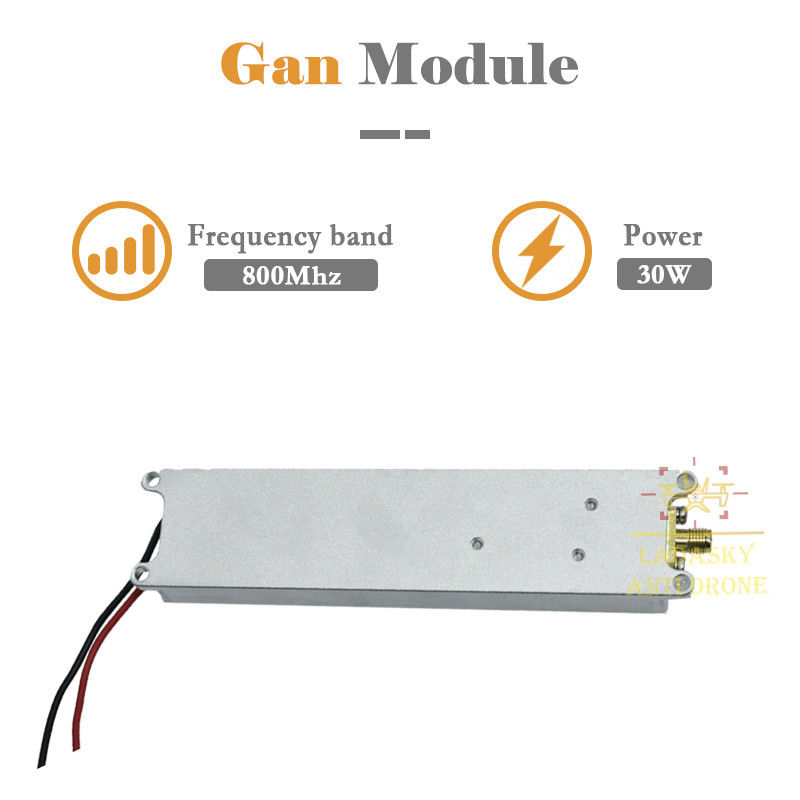

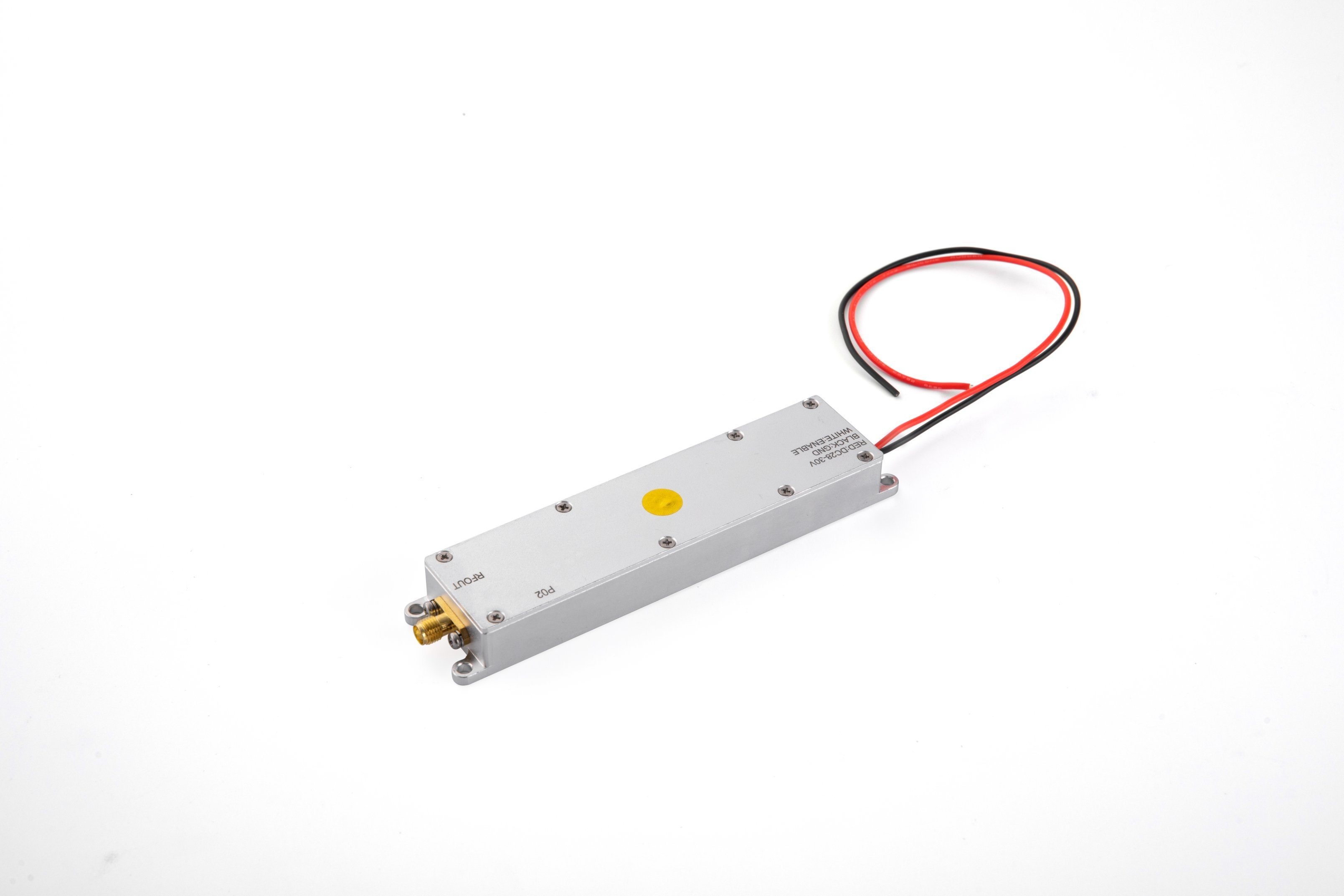

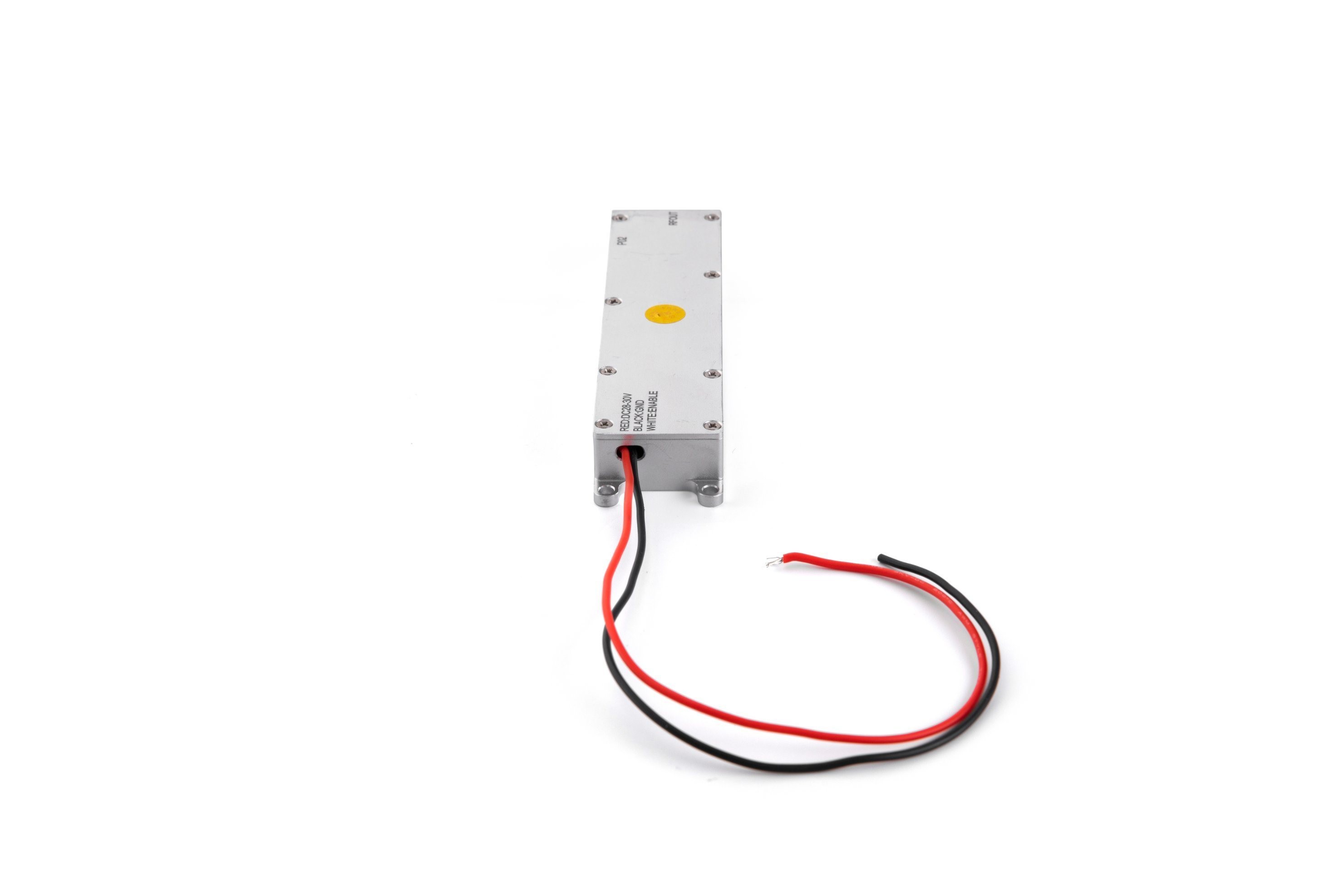

DC 24-32V GaN Fpv Module , 720-840MHz Drone Defense Module

DC 24-32V GaN Fpv Module , 720-840MHz Drone Defense Module
DC 24-32V GaN Fpv Module , 720-840MHz Drone Defense Module DC 24-32V GaN Fpv Module , 720-840MHz Drone Defense Module DC 24-32V GaN Fpv Module , 720-840MHz Drone Defense Module DC 24-32V GaN Fpv Module , 720-840MHz Drone Defense Module DC 24-32V GaN Fpv Module , 720-840MHz Drone Defense Module

Large Image :  DC 24-32V GaN Fpv Module , 720-840MHz Drone Defense Module

Product Details:
Place of Origin: Guangdong, China
Brand Name: LDSK
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Delivery Time: 1-3 workdays
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Trademark: LDSK Frequency: 720-840MHz
Specification: 29.7*131*15.5mm Power: 30W
Supply Voltage: DC 224-32V Power Flatness: 1-1.5dB
Customization: Available | Customized Request Supply Ability: 50000PCS/Month
Highlight:

720-840MHz drone defense module

,

Anti fpv Module 50watt

,

anti fpv rf module 20W

Product Description


Can be use in all kinds of anti drones defense equipment, through different channels and power, different countermeasures can be achieved.

DC 24-32V GaN Fpv Module , 720-840MHz Drone Defense Module 0

DC 24-32V GaN Fpv Module , 720-840MHz Drone Defense Module 1



Product Parameters
Product name Anti-drone module Power amplifier module
Frequency

720-840MHz

other frequency like 420-450Mhz,830-930Mhz,1170-1280Mhz, 1350-1450Mhz,1550-1620Mhz, 2400-2500Mhz, 5150-5350Mhz, 5725-5850Mzh Optional
Power 30W (10W 20W 30W 50W 100W Optional)
Supply Voltage DC 24-32V
Power Flatness 1-1.5dB
Input/Output VSWR 1.5dB
Supply Current 2.5-3A
Product Size 29.7*131*15.5mm
Product Weight Product Weight
Operating Temperature 20ºC-80ºC
Connect line RED:DC28-30V
BLACK:GND
WHITE:ENABLE
Company Profile




Shenzhen ladasky technology Co,.LTD, specializing in the field of advanced technology. Our company is located in the vibrant city of Shenzhen, known as a hub of innovation and technology in China.



Our main products include RF module and anti FPV, which are designed with cutting-edge technology and strict quality control to meet the diverse needs of our customers. The RF module offers high-performance and stable signal transmission, enabling seamless communication in various applications. The anti FPV solution provides effective protection against unauthorized interference and ensures the security and privacy of video transmission.


DC 24-32V GaN Fpv Module , 720-840MHz Drone Defense Module 2
