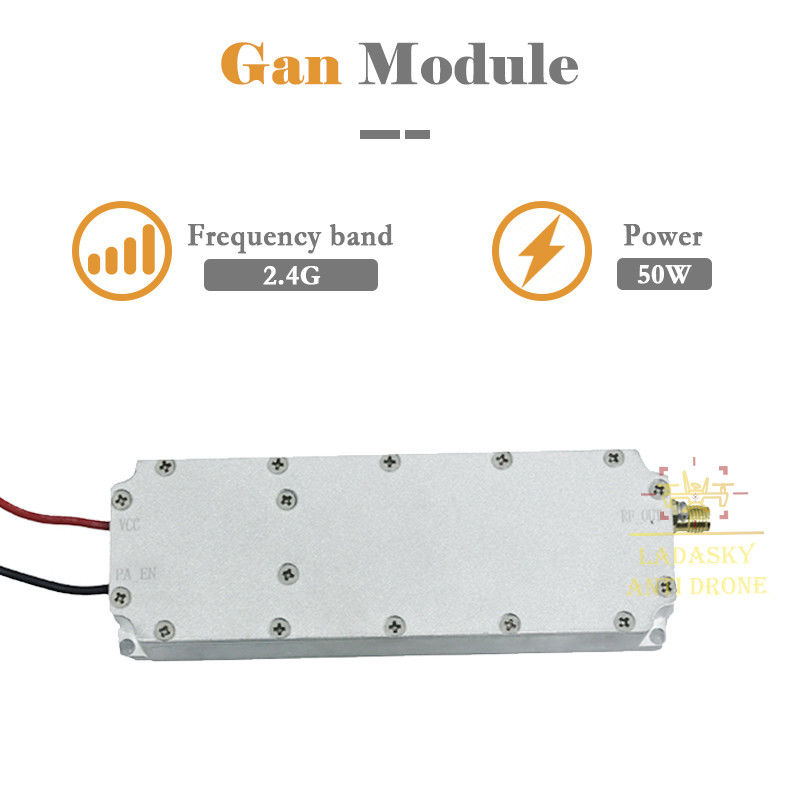

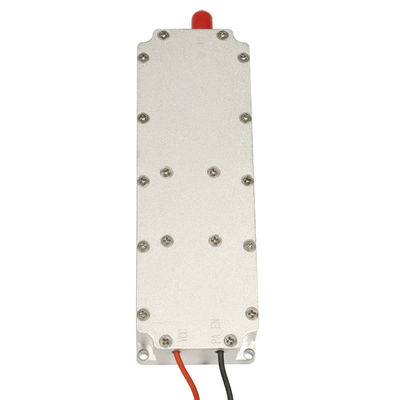

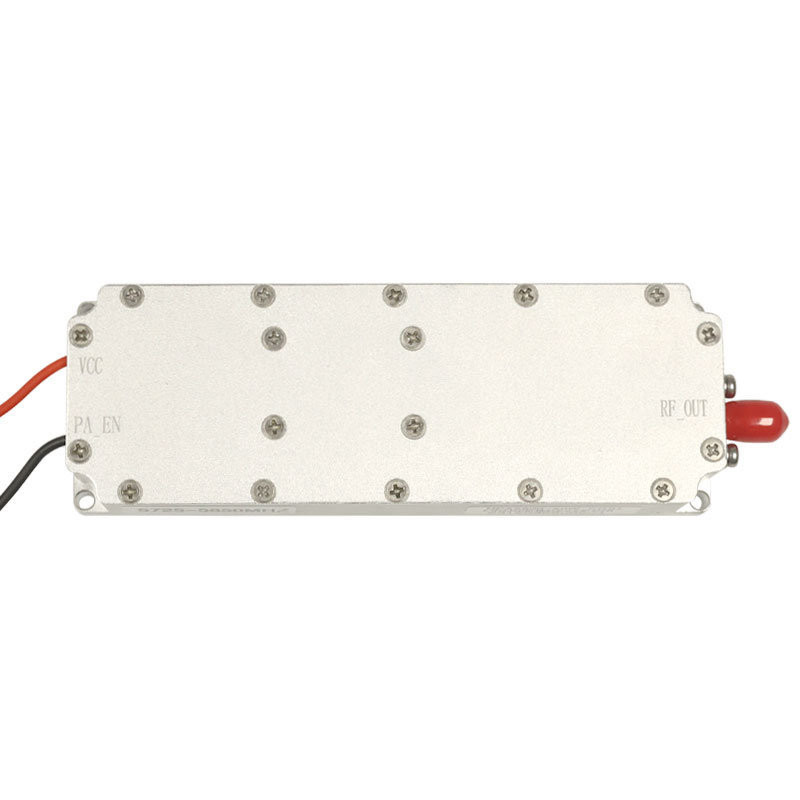

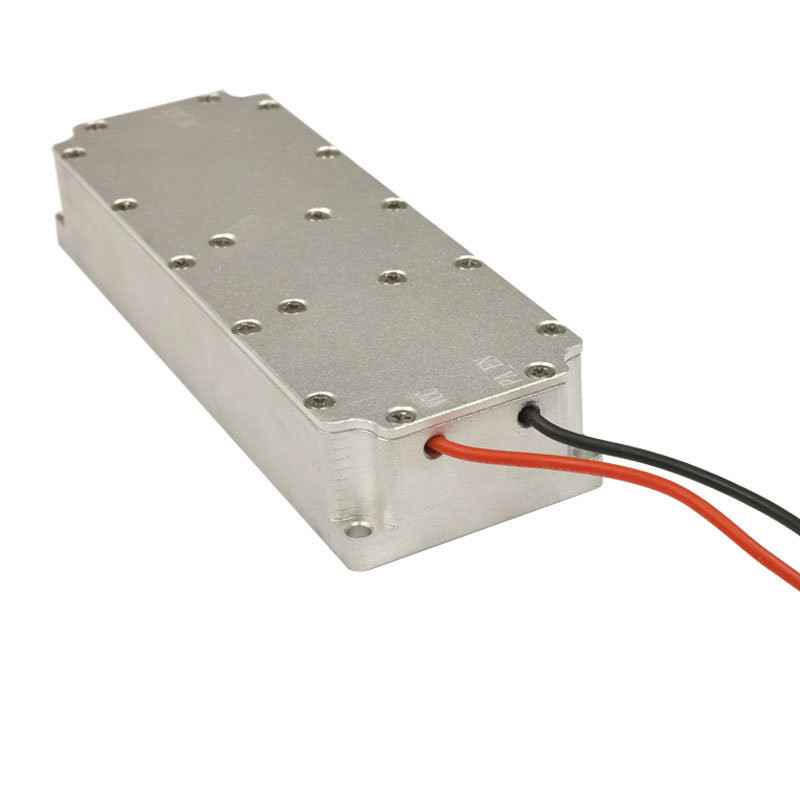

Customization 2.4G 50W GaN Drone Jamming Module
  • name
  • name
  • name
  • name
  • name
  • name

Customization 2.4G 50W GaN Drone Jamming Module

MOQ: 2 piece
Price: $90-$110 1-1000pcs
Standard Packaging: 20*10*5cm, 0.5KG
Delivery Period: 5-8 workdays
Payment Method: D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Capacity: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
LDSK
Model NO.:
LDSK
Interface:
SMA
Working Power:
30V
Working Efficiency:
52%
Function:
Amplifier
Power:
50W
Transport Package:
Carton Box
Origin:
China
Supply Ability:
50000PCS/Month
Package Gross Weight:
0.300kg
Model:
2400-2500Mhz 50W Module
Gain:
47dBm
Size:
37.3*112*19.5mm
Samples:
US$ 110/Piece
Customization:
Available | Customized Request
Minimum Order Quantity:
2 piece
Price:
$90-$110 1-1000pcs
Packaging Details:
20*10*5cm, 0.5KG
Delivery Time:
5-8 workdays
Payment Terms:
D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability:
5000pcs per month
Highlight:

Customization Anti Drone Module

,

2.4G 50W Drone Jamming Module

,

counter drone solution gan module

Product Description
Product Parameters
--Ladasky is the experienced signal jammer supplier for anti drone jammer, phone wifi gps signal jammer, signal jammer module and antenna. Customized frequency and output power.

--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.

--This document stipulates the radio frequency and monitoring technical indicators of the 2400-2500MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

--This document applies to all aspects of product design, verification, production and quality inspection of the 2400-2500MHz 50W power amplifier module.
Item name Technical parameters
Working frequency 2400-2500MHz
Power 50W
Supply Voltage DC 24-32V
Max Output Power 47 dBm
Working Efficiency ≥60%
Passband Riplpe ≤2dB
Weight 105 g
Operating Temperature -10~+55ºC
Power supply requirements ≥3.7A
RF Connector SMA
Weight 136g
Size 37.3*112*19.5mm (Excluding SMA)
Connect line red DC28-30V
Connect line black GND
Connect line white ENABLE
Product Description

Customization 2.4G 50W GaN Drone Jamming Module 0

Customization 2.4G 50W GaN Drone Jamming Module 1

Customization 2.4G 50W GaN Drone Jamming Module 2



Lead time

Quantity(PCS) <100pcs <500 500-1000 >1000
Lead time(Days) 3 3-5 7-12 To be negotiated


Customization

Item Logo Frequency Power Packing
MOQ(PCS) 1 1 1 1






Company profile

Customization 2.4G 50W GaN Drone Jamming Module 3




Packing and Delivery
Selling Units: Single item
Single package size: 20X10X5 cm
Single gross weight: 0.2kg
Package Type: Each piece is individually packed into a bag and then packed into a carton.

Customization 2.4G 50W GaN Drone Jamming Module 4

FAQ

1.Why Choose us?
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2.What is the process of placing an order?
First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.

3. How to contact us?
amber@ladaskytech.com


Tags:

anti uav module,

fpv jamming module,

drone jamming module
