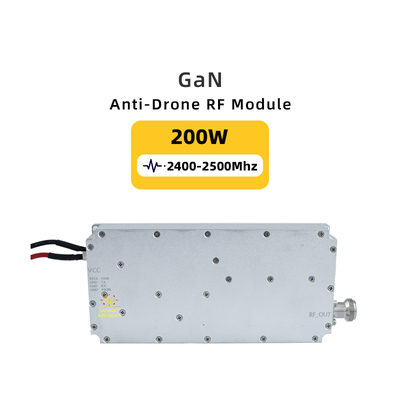

2400-2500MHz 200W GaN RF Module for Anti-Drone Systems
  • name
  • name
  • name
  • name
  • name

2400-2500MHz 200W GaN RF Module for Anti-Drone Systems

MOQ: 1 piece
Price: $430-450
Delivery Period: D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Capacity: 50000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
LDSK
Product Weight:
28-32V
Frequency:
2400-2500mhz
Power:
200W
Size:
154.5×73×26.5mm
Customization:
Available | Customized Reques
Highlight:
2400-2500mhz GaN Module, 200W GaN Module
Minimum Order Quantity:
1 piece
Price:
$430-450
Delivery Time:
D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability:
50000 pcs per month
Highlight:

200W GaN RF module

,

2400-2500MHz GaN module

,

anti-drone RF module

Product Description
2400-2500MHz 200W GaN RF Module for Anti-Drone Systems
Key Features
  • 2400-2500MHz GaN Module with 200W power output
  • High efficiency operation (≥44%)
  • Compact size: 154.5×73×26.5mm
  • Operates in -10~+55°C temperature range
  • Customization options available
Technical Specifications
Parameter Value
Working Frequency 2400-2500MHz
Power Output 200W
Supply Voltage DC 28-32V
Max Output Power 200W
Working Efficiency ≥44%
Passband Ripple ≤2dB
Weight 900 g
Operating Temperature -10~+55ºC
Power Supply Requirements ≥10A
RF Connector N-type
Dimensions 154.5×73×26.5mm (Excluding connector)
Connection Details
  • Red wire: DC28-32V
  • Black wire: GND
  • White wire: ENABLE
Product Images
2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 0 2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 1 2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 2 2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 3 2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 4
Lead Time
Quantity (PCS) Lead Time (Days)
<100 3
<500 3-5
500-1000 7-12
>1000 To be negotiated
Customization Options
Item MOQ (PCS)
Logo 1
Frequency 1
Power 1
Packing 1
Packaging Details
  • Selling Units: Single item
  • Package dimensions: 20×10×5 cm
  • Gross weight: 0.2kg
  • Packaging: Each piece individually packed in a bag, then packed into cartons
2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 5
Frequently Asked Questions
Why Choose Us?
We offer professional expertise, sincere service, prompt responses, and an excellent team to ensure a comfortable buying experience.
What is the order process?
  1. Send us products you're interested in
  2. We provide detailed information and quotations
  3. You can ask any questions about our products
  4. Confirm order, we send PI and payment link
  5. After packaging, we send confirmation photos and tracking number
  6. After delivery, we welcome your product evaluation
How to contact us?
About Our Company
2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 6

Shenzhen Ladasky Technology Co., Ltd specializes in advanced technology solutions. Located in Shenzhen, China's innovation hub, we develop high-quality RF modules and anti-FPV solutions with cutting-edge technology and strict quality control.

Our experienced R&D team continuously innovates to stay ahead of market trends. Our state-of-the-art manufacturing facilities adhere to international quality standards, ensuring reliable, high-performance products.

Tags:

anti uav module,

fpv jamming module,

drone jamming module
