2400-2500MHz 200W GaN RF Module for Anti-Drone Systems

All Products
Anti Drone System (52)
Anti Drone Device (11)
Anti Drone Module (245)
Stationary Drone Detection System (25)
Anti FPV Device (31)
Anti Drone Lora Module (28)
Anti Drone Antenna (33)
Drone Signal Jammer (7)
Handheld Drone Detector (32)
Portable Drone Detector (18)
RF Amplifier Module (15)
Best Products
400-500mhz Frequency 100W GaN Module for Autel Anti Drone System

400-500mhz Frequency 100W GaN Module for Autel Anti Drone System

4000-6000mhz Anti Drone Lora Module Counter Fpv Module 300-6000mhz 100W anti drone system anti fpv 250-400mhz 50W 100-1100mhz

4000-6000mhz Anti Drone Lora Module Counter Fpv Module 300-6000mhz 100W anti drone system anti fpv 250-400mhz 50W 100-1100mhz

2500-4000mhz Anti Drone Lora Module Counter Fpv Module 300-6000mhz 100W anti drone system anti fpv 250-400mhz 50W 100-1100mhz

2500-4000mhz Anti Drone Lora Module Counter Fpv Module 300-6000mhz 100W anti drone system anti fpv 250-400mhz 50W 100-1100mhz

Your prodct works very well, and the reply is in time. We are very happy to cooperate with you

—— Dmity

Good quality, fast delivery, in time reply,excellent service

—— Sergey

I'm Online Chat Now

2400-2500MHz 200W GaN RF Module for Anti-Drone Systems

2400-2500MHz 200W GaN RF Module for Anti-Drone Systems
2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 2400-2500MHz 200W GaN RF Module for Anti-Drone Systems

Large Image :  2400-2500MHz 200W GaN RF Module for Anti-Drone Systems

Product Details:
Place of Origin: Guangdong, China
Brand Name: LDSK
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $430-450
Delivery Time: D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Product Weight: 28-32V Frequency: 2400-2500mhz
Power: 200W Size: 154.5×73×26.5mm
Customization: Available | Customized Reques Highlight: 2400-2500mhz GaN Module, 200W GaN Module
Highlight:

200W GaN RF module

,

2400-2500MHz GaN module

,

anti-drone RF module

2400-2500MHz 200W GaN RF Module for Anti-Drone Systems
Key Features
  • 2400-2500MHz GaN Module with 200W power output
  • High efficiency operation (≥44%)
  • Compact size: 154.5×73×26.5mm
  • Operates in -10~+55°C temperature range
  • Customization options available
Technical Specifications
Parameter Value
Working Frequency 2400-2500MHz
Power Output 200W
Supply Voltage DC 28-32V
Max Output Power 200W
Working Efficiency ≥44%
Passband Ripple ≤2dB
Weight 900 g
Operating Temperature -10~+55ºC
Power Supply Requirements ≥10A
RF Connector N-type
Dimensions 154.5×73×26.5mm (Excluding connector)
Connection Details
  • Red wire: DC28-32V
  • Black wire: GND
  • White wire: ENABLE

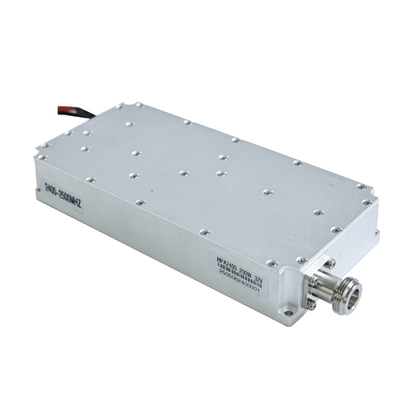

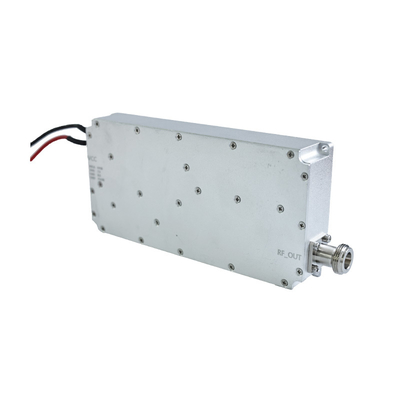

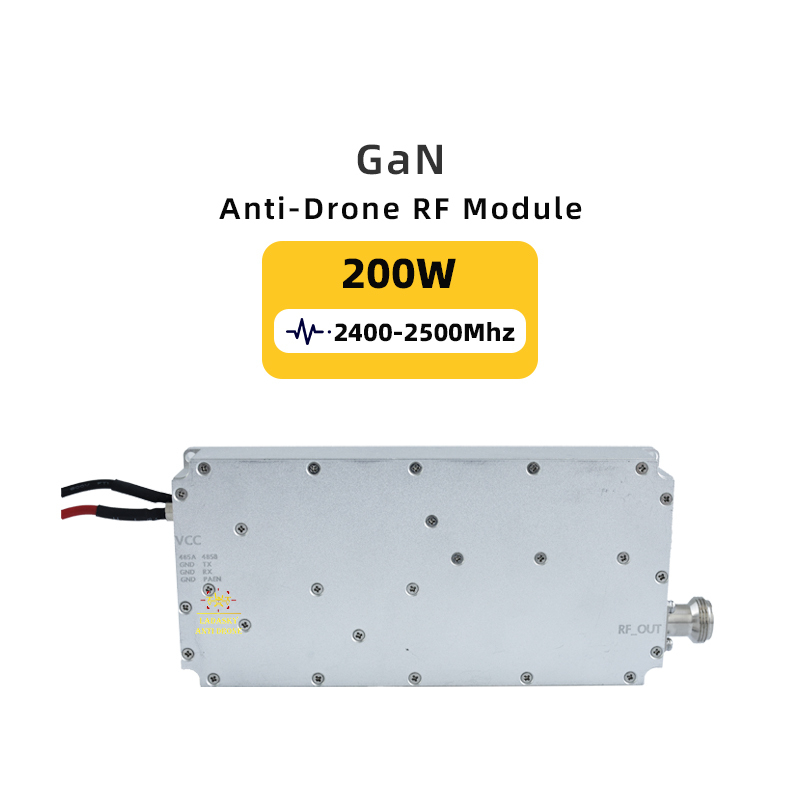

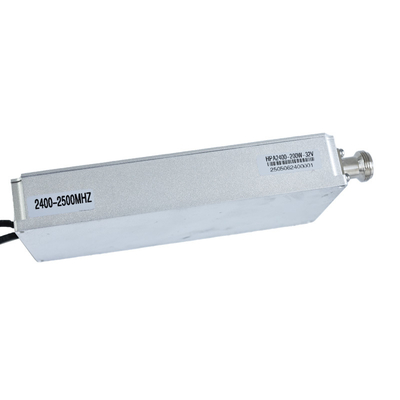

Product Images
2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 0 2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 1 2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 2 2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 3 2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 4
Lead Time
Quantity (PCS) Lead Time (Days)
<100 3
<500 3-5
500-1000 7-12
>1000 To be negotiated
Customization Options
Item MOQ (PCS)
Logo 1
Frequency 1
Power 1
Packing 1
Packaging Details
  • Selling Units: Single item
  • Package dimensions: 20×10×5 cm
  • Gross weight: 0.2kg
  • Packaging: Each piece individually packed in a bag, then packed into cartons
2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 5
Frequently Asked Questions
Why Choose Us?
We offer professional expertise, sincere service, prompt responses, and an excellent team to ensure a comfortable buying experience.
What is the order process?
  1. Send us products you're interested in
  2. We provide detailed information and quotations
  3. You can ask any questions about our products
  4. Confirm order, we send PI and payment link
  5. After packaging, we send confirmation photos and tracking number
  6. After delivery, we welcome your product evaluation
How to contact us?
About Our Company
2400-2500MHz 200W GaN RF Module for Anti-Drone Systems 6

Shenzhen Ladasky Technology Co., Ltd specializes in advanced technology solutions. Located in Shenzhen, China's innovation hub, we develop high-quality RF modules and anti-FPV solutions with cutting-edge technology and strict quality control.

Our experienced R&D team continuously innovates to stay ahead of market trends. Our state-of-the-art manufacturing facilities adhere to international quality standards, ensuring reliable, high-performance products.
