200W GaN RF Power Amplifier Module 2400-2500MHz for Industrial Use
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

200W GaN RF Power Amplifier Module 2400-2500MHz for Industrial Use

MOQ: 1
Delivery Period: 1-3 workdays
Payment Method: D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Supply Capacity: 50000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
LDSK
Certification
Guangdong, China
Model Number
LDSK-TZ-GAN-9
Frequency And Power:
2400–2500MHz 200W
Operating Voltage:
28V
Operating Ambient Temperature:
-40～+55℃
Highlight:
FPV Anti-Drone Module, 80W Anti-Drone Module, DJI Anti-Drone Module
Minimum Order Quantity:
1
Delivery Time:
1-3 workdays
Payment Terms:
D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Supply Ability:
50000 pcs per month
Highlight:

200W GaN RF amplifier module

,

2400-2500MHz power amplifier

,

industrial GaN RF module

Product Description
High efficiency 200W GaN RF power amplifier module for 2400–2500MHz applications
Key Attributes
  • Frequency & Power: 2400-2500MHz 200W
  • Gain: 52.7dBm
  • Dimensions: 154.5 × 73 × 26.5mm
  • Operating Voltage: 28V
  • Operating Temperature: -40～+55℃
  • Applications: FPV Anti-Drone Module, 80W Anti-Drone Module, DJI Anti-Drone Module
Product Overview
The LDK-TZ-GAN-200 High Power GaN RF Power Amplifier Module utilizes advanced Gallium Nitride (GaN) technology to deliver exceptional RF amplification performance in the 2400-2500MHz frequency range. This compact module provides 200W maximum output power with high efficiency and excellent environmental adaptability.
Key Features
  • Durable metal enclosure for high reliability
  • Optimized matching networks for minimal signal loss
  • RS-485 monitoring interface
  • Comprehensive protection: thermal, over-current, and VSWR
  • Wide operating temperature range (-40 to +55℃)
Applications
  • Industrial RF systems
  • Communication equipment testing
  • Wireless data transmission systems
  • Research and development projects
Technical Specifications
Parameter Specification Unit Remarks
Model LDK-TZ-GAN-200 - -
Frequency Range 2400-2500 MHz With built-in high-efficiency sweeper
Working Voltage 28 V -
Max Output Power 52.7 dBm ≤13.0A
Power Efficiency 49 % Typical
Output VSWR ≤1.50 - -
Operating Temperature -40 to +55 ℃ -
Power Stability 1.5 dB -20℃ to +75℃
Power Supply Requirement ≥14 A For maximum output power
Control Interface 2×4 pin - RS-485 communication, PA enable control
Protection Features - - Thermal, over-current, VSWR protection
RF Output Connector N-F - Female
Dimensions 154.5 × 73 × 26.5 mm Excluding connector
Mounting Hole Size 149.5 × 67.7 mm M3.0 × 10
Housing Material Metal - High reliability

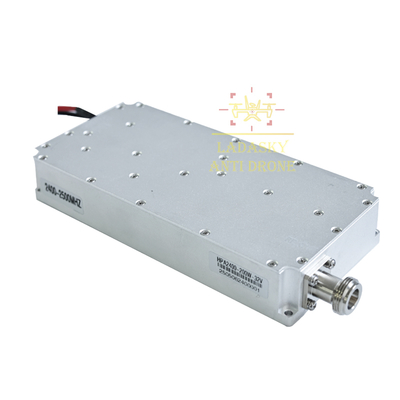

Product Images
200W GaN RF Power Amplifier Module 2400-2500MHz for Industrial Use 0 200W GaN RF Power Amplifier Module 2400-2500MHz for Industrial Use 1 200W GaN RF Power Amplifier Module 2400-2500MHz for Industrial Use 2 200W GaN RF Power Amplifier Module 2400-2500MHz for Industrial Use 3
Ordering Information
Lead Time
Quantity (PCS) <100 <500 500-1000 >1000
Lead Time (Days) 3 3-5 7-12 To be negotiated
Customization Options
  • Logo: MOQ 1 PC
  • Frequency: MOQ 1 PC
  • Power: MOQ 1 PC
  • Packing: MOQ 1 PC
About Ladasky Technology
200W GaN RF Power Amplifier Module 2400-2500MHz for Industrial Use 4

Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. We focus on RF sensing, signal analysis, and active interference solutions.

Our product portfolio includes UAV detection modules, RF suppression units, and navigation signal simulation systems. Ladasky is committed to delivering precise, efficient, and intelligent low-altitude protection solutions for government agencies, public security, and critical infrastructure protection.

Packaging & Shipping
  • Selling Units: Single item
  • Package Size: 20×10×5 cm
  • Gross Weight: 0.2kg
  • Packaging: Individually packed in protective bags and cartons
200W GaN RF Power Amplifier Module 2400-2500MHz for Industrial Use 5
Frequently Asked Questions
Why choose Ladasky Technology?

We offer professional expertise, sincere service, prompt responses, and an excellent technical team to ensure a comfortable purchasing experience.

What is the order process?
  1. Send us your product interest
  2. We provide detailed specifications and quotations
  3. Consultation about product details
  4. Order confirmation with PI and payment link
  5. Product photos and tracking number provided after packaging
  6. Feedback welcome after product receipt
How to contact us?

Email: emma@ladaskytech.com
