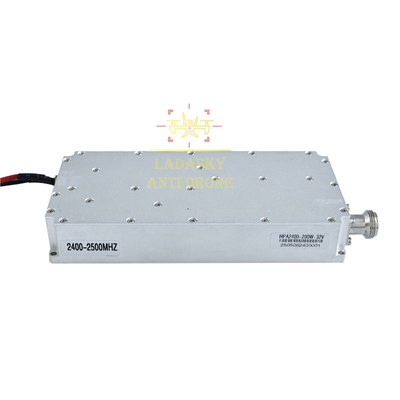

200W GaN RF Power Amplifier Module 2400-2500MHz for Industrial Use
| Place of Origin | China |
|---|---|
| Brand Name | LDSK |
| Certification | Guangdong, China |
| Model Number | LDSK-TZ-GAN-9 |
| Minimum Order Quantity | 1 |
| Delivery Time | 1-3 workdays |
| Payment Terms | D/A,D/P,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 50000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency And Power | 2400–2500MHz 200W | Operating Voltage | 28V |
|---|---|---|---|
| Operating Ambient Temperature | -40～+55℃ | Highlight | FPV Anti-Drone Module, 80W Anti-Drone Module, DJI Anti-Drone Module |
| Highlight | 200W GaN RF amplifier module,2400-2500MHz power amplifier,industrial GaN RF module |
||
Product Description
High efficiency 200W GaN RF power amplifier module for 2400–2500MHz applications
Key Attributes
- Frequency & Power: 2400-2500MHz 200W
- Gain: 52.7dBm
- Dimensions: 154.5 × 73 × 26.5mm
- Operating Voltage: 28V
- Operating Temperature: -40～+55℃
- Applications: FPV Anti-Drone Module, 80W Anti-Drone Module, DJI Anti-Drone Module
Product Overview
The LDK-TZ-GAN-200 High Power GaN RF Power Amplifier Module utilizes advanced Gallium Nitride (GaN) technology to deliver exceptional RF amplification performance in the 2400-2500MHz frequency range. This compact module provides 200W maximum output power with high efficiency and excellent environmental adaptability.
Key Features
- Durable metal enclosure for high reliability
- Optimized matching networks for minimal signal loss
- RS-485 monitoring interface
- Comprehensive protection: thermal, over-current, and VSWR
- Wide operating temperature range (-40 to +55℃)
Applications
- Industrial RF systems
- Communication equipment testing
- Wireless data transmission systems
- Research and development projects
Technical Specifications
| Parameter | Specification | Unit | Remarks |
|---|---|---|---|
| Model | LDK-TZ-GAN-200 | - | - |
| Frequency Range | 2400-2500 | MHz | With built-in high-efficiency sweeper |
| Working Voltage | 28 | V | - |
| Max Output Power | 52.7 | dBm | ≤13.0A |
| Power Efficiency | 49 | % | Typical |
| Output VSWR | ≤1.50 | - | - |
| Operating Temperature | -40 to +55 | ℃ | - |
| Power Stability | 1.5 | dB | -20℃ to +75℃ |
| Power Supply Requirement | ≥14 | A | For maximum output power |
| Control Interface | 2×4 pin | - | RS-485 communication, PA enable control |
| Protection Features | - | - | Thermal, over-current, VSWR protection |
| RF Output Connector | N-F | - | Female |
| Dimensions | 154.5 × 73 × 26.5 | mm | Excluding connector |
| Mounting Hole Size | 149.5 × 67.7 | mm | M3.0 × 10 |
| Housing Material | Metal | - | High reliability |

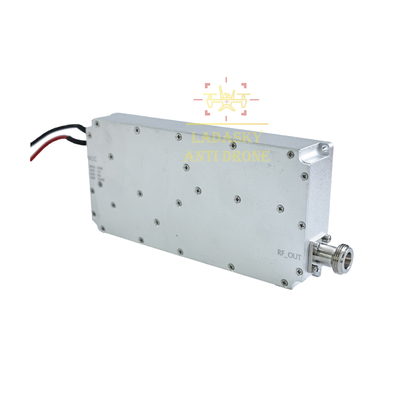

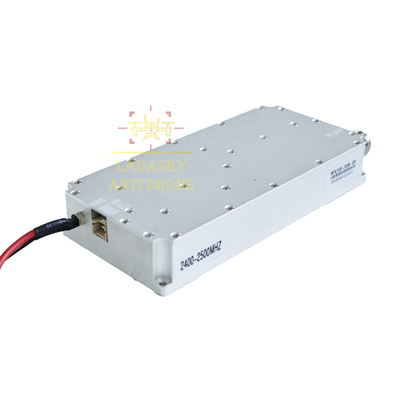

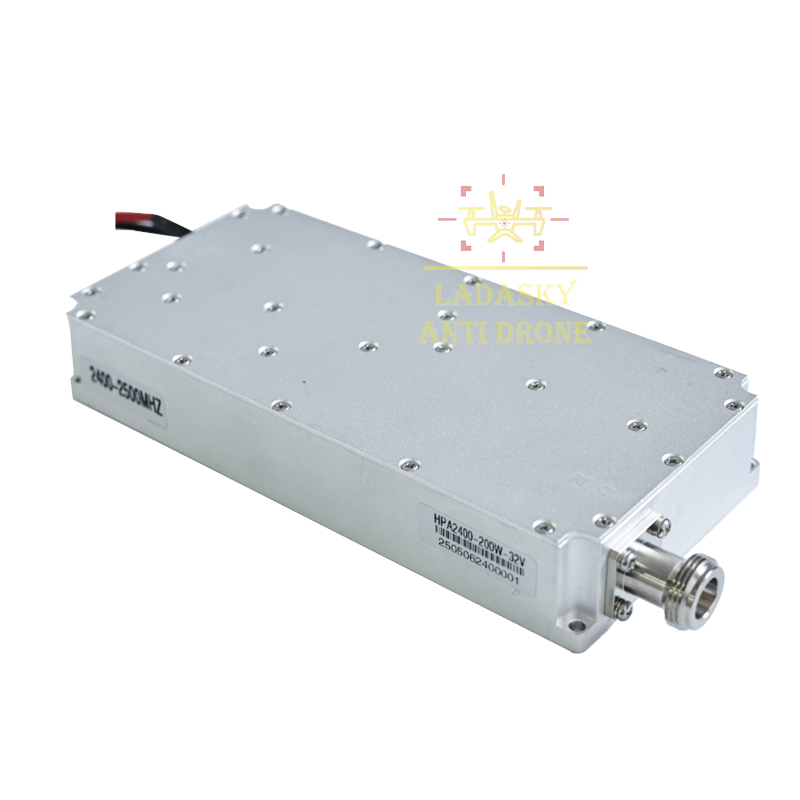

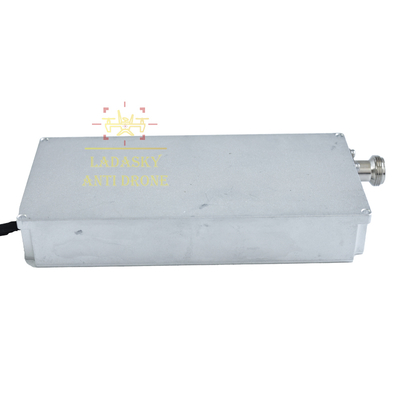

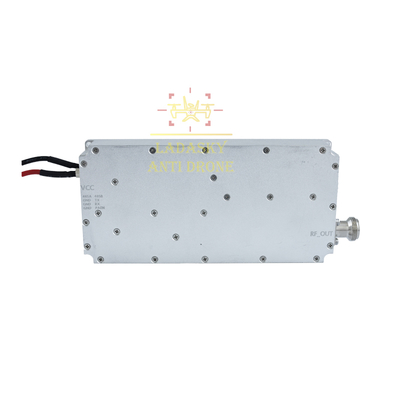

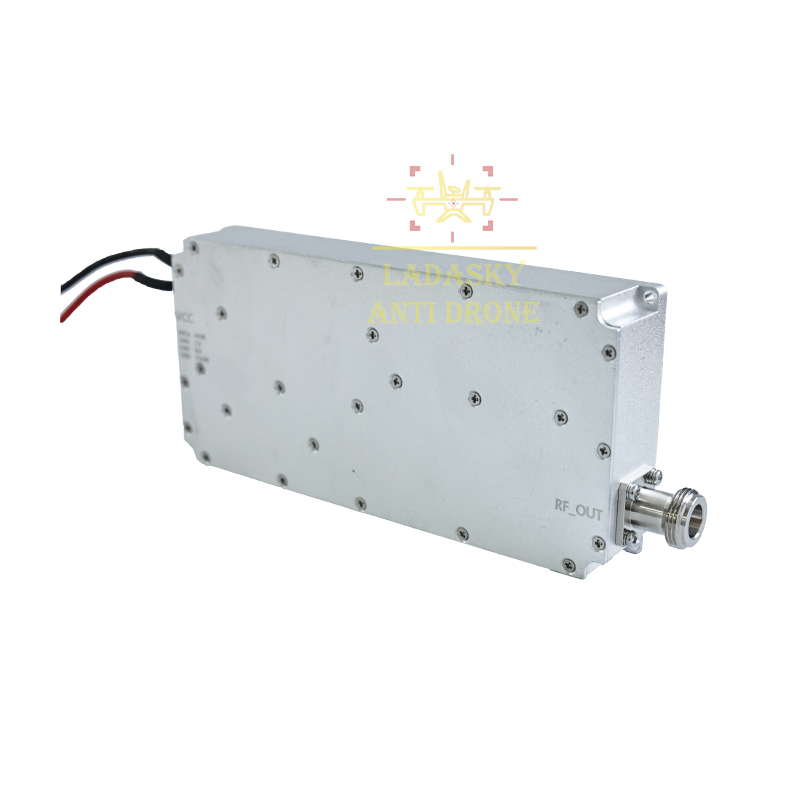

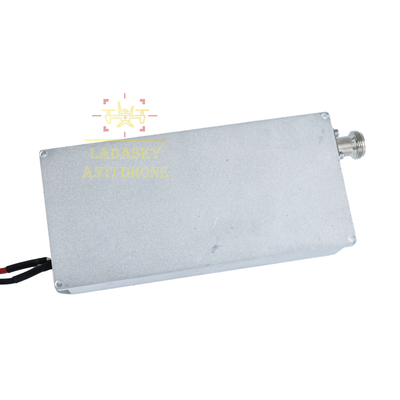

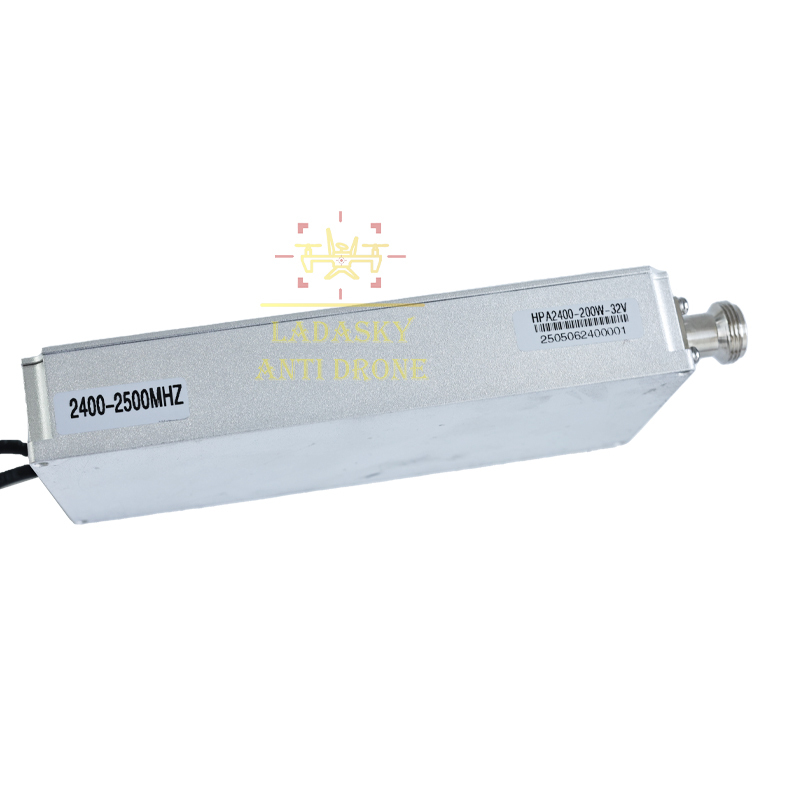

Product Images
Ordering Information
Lead Time
| Quantity (PCS) | <100 | <500 | 500-1000 | >1000 |
|---|---|---|---|---|
| Lead Time (Days) | 3 | 3-5 | 7-12 | To be negotiated |
Customization Options
- Logo: MOQ 1 PC
- Frequency: MOQ 1 PC
- Power: MOQ 1 PC
- Packing: MOQ 1 PC
About Ladasky Technology
Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. We focus on RF sensing, signal analysis, and active interference solutions.
Our product portfolio includes UAV detection modules, RF suppression units, and navigation signal simulation systems. Ladasky is committed to delivering precise, efficient, and intelligent low-altitude protection solutions for government agencies, public security, and critical infrastructure protection.
Packaging & Shipping
- Selling Units: Single item
- Package Size: 20×10×5 cm
- Gross Weight: 0.2kg
- Packaging: Individually packed in protective bags and cartons
Frequently Asked Questions
Why choose Ladasky Technology?
We offer professional expertise, sincere service, prompt responses, and an excellent technical team to ensure a comfortable purchasing experience.
What is the order process?
- Send us your product interest
- We provide detailed specifications and quotations
- Consultation about product details
- Order confirmation with PI and payment link
- Product photos and tracking number provided after packaging
- Feedback welcome after product receipt
How to contact us?
Email: emma@ladaskytech.com
