Handheld Drone Detector
Created with Pixso. 5KM 100-6000MHz Integrated UAV Signal Monitoring and Navigation Simulation Platform
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

5KM 100-6000MHz Integrated UAV Signal Monitoring and Navigation Simulation Platform

Brand Name: LDSK
Model Number: LDk-C06
MOQ: 1
Delivery Time: 7 working days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,Paypal,Alibaba
Detail Information
Product Description
Detail Information
Place of Origin:
GuangDong,China
Frequency Range:
100-6000MHz
Detection Range:
≥5 Km
Battery Life:
≥ 6h
Operating Temperature:
–20°C To +60°C
Protection Rating:
IP66
Packaging Details:
Box
Supply Ability:
5000 each month
Product Description

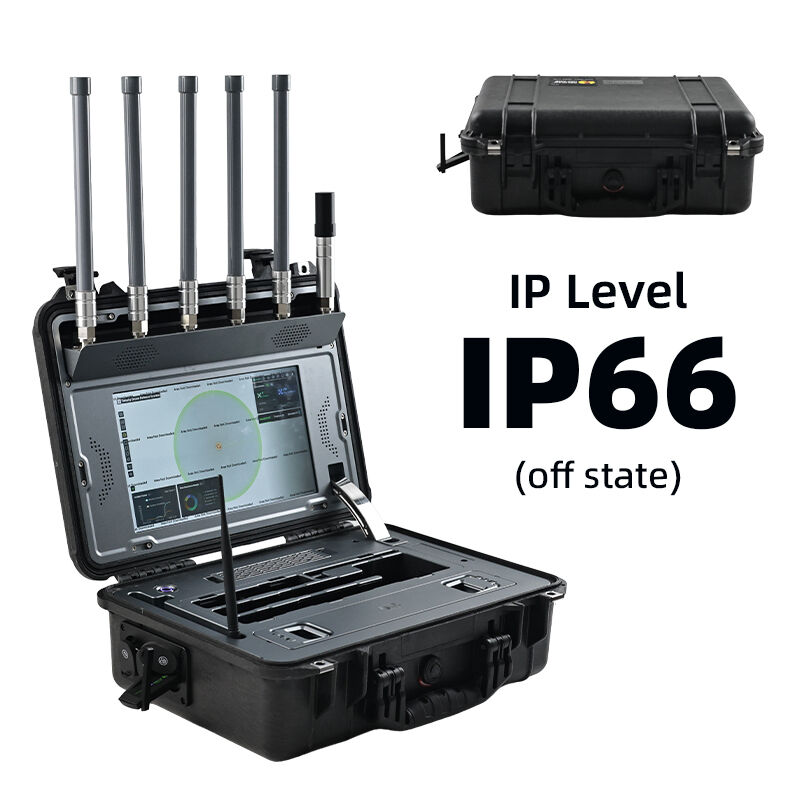

LDK-C06 100-6000MHZ Portable Low-Altitude UAV Signal Monitoring System
All-in-one wideband RF detection and GNSS simulation device for portable airspace awareness.
Product Overview

The LDK-C06 portable UAV monitoring system integrates wideband RF signal detection with navigation signal simulation technology in a single compact platform.

Designed for mobility and rapid deployment, the system enables operators to monitor UAV communication signals across a wide frequency range while providing additional navigation signal simulation capability for controlled operational scenarios.

Its rugged design, integrated touchscreen interface, and detachable battery system make it suitable for outdoor deployment and temporary installations where reliable monitoring is required.

Key Features

Full-Spectrum Monitoring
Wideband signal coverage from 100MHz to 6GHz for comprehensive UAV signal detection.

Portable Integrated Design
All-in-one system with foldable antennas and compact structure.

Multi-Constellation GNSS Simulation
Supports GPS, GLONASS and BeiDou navigation signal simulation.

Advanced UAV Signal Recognition
Identifies signals from multiple UAV brands and transmission protocols.

Rapid Deployment Capability
Quick setup and operation by a single operator.

Durable Field Operation
Industrial-grade enclosure with IP66 protection level when powered off.

Technical Specifications
Item Specification
Detection Frequency Range 100MHz – 6GHz
Maximum Detection Distance Up to 5 km
Navigation Signal Bands GPS L1 / GLONASS L1 / BDS B1
Simulation Coverage Up to 1 km
Dimensions (Folded) 470 × 357 × 176 mm
Dimensions (Deployed) 470 × 472 × 690 mm
Weight ≤14 kg
Battery 28.8V Lithium Battery
External Power AC110-240V
Protection Rating IP66 (power-off state)
Product Images


5KM 100-6000MHz Integrated UAV Signal Monitoring and Navigation Simulation Platform 0

5KM 100-6000MHz Integrated UAV Signal Monitoring and Navigation Simulation Platform 1

5KM 100-6000MHz Integrated UAV Signal Monitoring and Navigation Simulation Platform 2

5KM 100-6000MHz Integrated UAV Signal Monitoring and Navigation Simulation Platform 3

5KM 100-6000MHz Integrated UAV Signal Monitoring and Navigation Simulation Platform 4

5KM 100-6000MHz Integrated UAV Signal Monitoring and Navigation Simulation Platform 5

Usage Scenarios

5KM 100-6000MHz Integrated UAV Signal Monitoring and Navigation Simulation Platform 6



Manufacturer Information

5KM 100-6000MHz Integrated UAV Signal Monitoring and Navigation Simulation Platform 7

5KM 100-6000MHz Integrated UAV Signal Monitoring and Navigation Simulation Platform 8

5KM 100-6000MHz Integrated UAV Signal Monitoring and Navigation Simulation Platform 9

5KM 100-6000MHz Integrated UAV Signal Monitoring and Navigation Simulation Platform 10




FAQ

Q1: What environments is the system suitable for?
The system can be deployed in aviation facilities, industrial areas, critical infrastructure sites, and temporary monitoring locations.

Q2: Does the system require complex installation?
No. The device is designed for rapid deployment and can be operated by a single person.

Q3: What UAV types can be detected?
The system supports detection of commercial drones, Wi-Fi drones, FPV transmission drones, and other UAV communication signals.

Q4: How is the system powered during field operations?
It can operate using the built-in lithium battery or external AC power.

Q5: Can the system be integrated with other monitoring platforms?
Integration options can be customized depending on project requirements.
