LDK-AY-13 Multi-Constellation GNSS Deception Unit Drones Spoofer Using for Airports Ports Government Building Cases

Brand Name:	LDSK
Model Number:	LDSK-AY-13
MOQ:	1
Price:	$23730~25735
Delivery Time:	3-7 workdays
Payment Terms:	D/A,D/P,T/T,Western Union,,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Guangdong, China

Spoofer Range:

Up To 20 Km (customizable)

Power Input:

AC 110–300V

Startup Time:

≤ 60 Seconds

Weight:

330g

Signal Synchronization:

< 180 Seconds

Attenuation Adjustment:

80 DB (1 DB Resolution)

Dimensions:

430 × 370 × 175 Mm (excluding Antenna)

Protection Rating:

IP65

Operating Temperature:

-40°C To +50°C

Packaging Details:

Box

Supply Ability:

5000 pcs per month

Highlight:

multi-constellation GNSS drone spoofer

anti-drone system for airports

GNSS deception unit for government buildings

Product Description

LDK-AY-13 | Programmable GNSS Deception System for Drone Diversion & Controlled Landing

Product Overview

Meet the LDK-AY-13: a sophisticated, software-defined GNSS deception platform engineered to deliver controlled, non-destructive responses to unauthorized drone incursions. By broadcasting simulated satellite signals indistinguishable from real GPS, BeiDou, GLONASS, and Galileo constellations, this system seamlessly assumes control of a target drone's navigation system. Operators can execute a range of defensive actions—from gentle heading guidance and perimeter deterrence to enforced landing protocols—all without physical engagement or collateral risk.

Built for seamless integration into existing security networks, the LDK-AY-13 offers an external command interface for real-time control over signal parameters, trajectory simulation, and deception tactics. Its rugged, IP65-rated housing ensures reliable operation in extreme temperatures, making it the trusted choice for safeguarding refineries, power stations, military bases, and public venues against evolving aerial threats.

Application Scenarios

Oil & gas facilities
Power plants and substations
Government and public security zones
Military bases and sensitive areas
Airports, ports, and industrial parks

Core Advantages

Supports all major global GNSS systems and frequencies
Intelligent navigation manipulation without brute-force interference
Long-distance deception coverage up to 10 km
Fully programmable signal parameters and motion paths
Compatible with external command and direction-finding systems
IP65-rated for harsh outdoor environments
Rapid deployment and system-level integration

Technical Specifications

Category	Specification
System Model	LDK-AY-13
Supported GNSS	GPS • BeiDou (BDS) • GLONASS • Galileo
Operational Range	5 km (5W), 10 km (20W), 20 km (50W) – Customizable
Key Frequency Bands	L1, L2, L5, B1, B2, B3, E1, E5a, E6, etc.
Attenuation Control	0–80 dB, 1 dB Step
Cold Start Time	Under 60 seconds
Signal Acquisition	< 3 minutes
Power Supply	Wide-range AC 110–300V
Physical Dimensions	430 mm × 370 mm × 175 mm (Antenna excluded)
Unit Weight	Less than 20 kg
Operating Conditions	–40°C to +50°C
Storage Tolerance	–40°C to +70°C
Ingress Protection	IP65 (Dust-tight & Water-resistant)

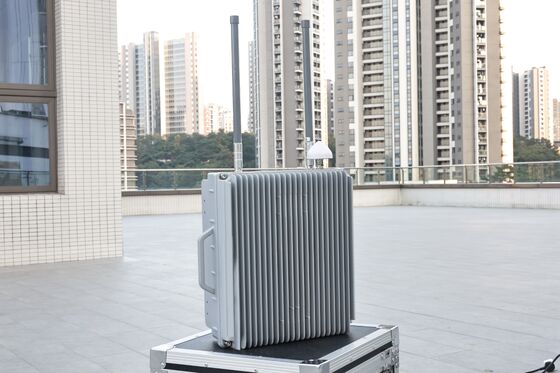

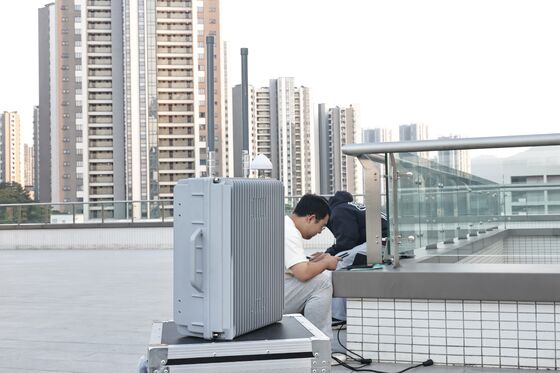

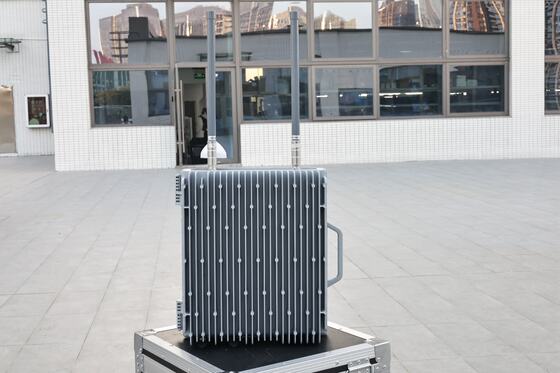

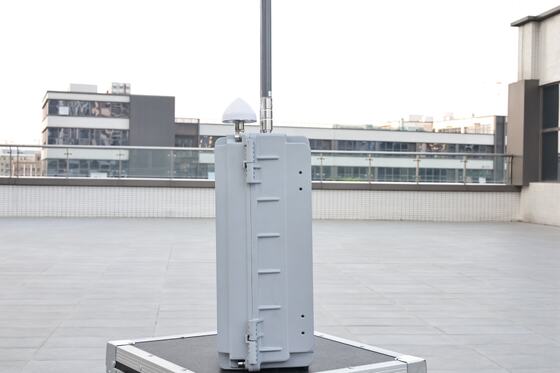

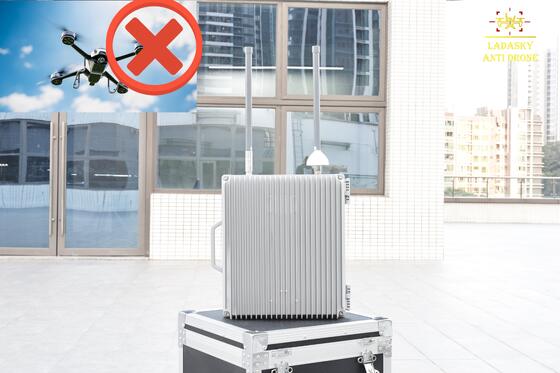

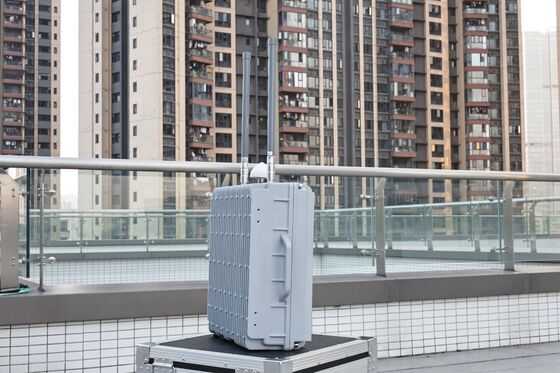

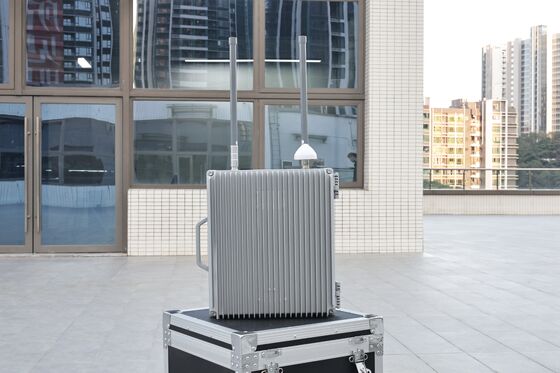

Product Image

LDK-AY-13 Multi-Constellation GNSS Deception Unit Drones Spoofer Using for Airports Ports Government Building Cases 0

LDK-AY-13 Multi-Constellation GNSS Deception Unit Drones Spoofer Using for Airports Ports Government Building Cases 1

LDK-AY-13 Multi-Constellation GNSS Deception Unit Drones Spoofer Using for Airports Ports Government Building Cases 2

LDK-AY-13 Multi-Constellation GNSS Deception Unit Drones Spoofer Using for Airports Ports Government Building Cases 3

LDK-AY-13 Multi-Constellation GNSS Deception Unit Drones Spoofer Using for Airports Ports Government Building Cases 4

LDK-AY-13 Multi-Constellation GNSS Deception Unit Drones Spoofer Using for Airports Ports Government Building Cases 5

LDK-AY-13 Multi-Constellation GNSS Deception Unit Drones Spoofer Using for Airports Ports Government Building Cases 6

LDK-AY-13 Multi-Constellation GNSS Deception Unit Drones Spoofer Using for Airports Ports Government Building Cases 7

Lead Time

Quantity (PCS)	Lead Time (Days)
<100pcs	7
<500pcs	10
500-1000pcs	12
>1000pcs	To be negotiated

Customization Options

Item	MOQ (PCS)
Logo	1
Frequency	1
Power	1
Packing	1

Packaging & Delivery

Selling Units	Single item
Single Package Size	20105 cm
Single Gross Weight	0.2kg
Package Type	Each piece is individually packed into a bag and then packed into a carton

LDK-AY-13 Multi-Constellation GNSS Deception Unit Drones Spoofer Using for Airports Ports Government Building Cases 8

Manufacturer Information

Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. We focus on RF sensing, signal analysis, and active interference solutions. Our product portfolio includes UAV detection modules, RF suppression units, and navigation signal simulation systems.

Ladasky is committed to delivering precise, efficient, and intelligent low-altitude protection solutions. Our systems have been widely applied in government agencies, public security, and critical infrastructure protection. Driven by innovation, we are dedicated to building industry-leading UAV control and management technology platforms.
