Multi-Band GNSS Navigation Deception System (8 / 13 / 22 Bands), 5–20 km Drone Spoofing Range for Border, Prison & Critical Infrastructure Protection

Brand Name:	Ladasky
Model Number:	LDSK-AY06/LDSK-AY13/LDSK-AY22
MOQ:	1
Delivery Time:	5-8day
Payment Terms:	L/C,D/A,T/T,D/P,Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Range:

5km-20km Customizable

Spoofing Methods:

Heading Guidance, Deterrence, Forced Landing, And Rapid Crashing.

Navigation Signals:

GPS, BDS, GLONASS, Galileo, QZSS, And IRNSS（Customizable）

Dimensions:

430*370*175mm (without Antenna)

External Supply Voltage:

AC 110-300V

IP Grade:

IP65

Supply Ability:

5000pcs/month

Highlight:

multi-band GNSS drone spoofing system

drone signal jammer with 5-20km range

GNSS deception system for border protection

Product Description

Factory Direct Counter-UAV GNSS Spoofer

Professional GNSS Spoofing & Navigation Satellite Deception Security Equipment for Anti-Drone Systems

Product Overview

This professional counter-drone equipment is specifically designed for security applications in oil and petrochemical facilities, power plants, public security operations, and military installations. Featuring a compact, lightweight design with reliable performance and user-friendly operation, it enables rapid deployment and integration.

Utilizing advanced navigation satellite signal simulation technology, the system broadcasts simulated satellite signals identical to operational navigation satellites. When drones receive these signals, they use them for positioning, allowing the system to implement multiple deception strategies including heading guidance, deterrence, forced landing, and rapid crash protocols.

Key Features

Supports signal reception and simulated transmission from all four major global navigation satellite systems, plus commonly used frequencies in Japan and India
Performs navigation deception on UAVs relying on satellite navigation, achieving objectives including forced landing, heading guidance, takeoff prohibition, and signal interference
Compatible with external direction finding modules for target azimuth identification and horizontal movement control
Supports external command control for arbitrary navigation signal combination transmission
Configurable position coordinates via external commands or built-in fixed coordinates
Adjustable simulation parameters including signal delay, motion speed, and acceleration
Supports preset trajectories such as linear motion and circular motion
Accepts externally added motion trajectories; calculates and outputs corresponding navigation satellite signals
Operates in both real-time ephemeris mode and permanent ephemeris mode
Provides satellite navigation signal suppression and interference output capabilities
Includes network secondary development control interface for system integration

Technical Specifications

Performance Parameters

Item	Specification
Deception Distance	Customizable according to customer requirements
Supported GNSS Systems	GPS, BDS, GLONASS, Galileo
Receiving Frequencies	BDS-B1, GPS-L1 / L2 / L5, GLONASS-L1, Galileo-E1
Attenuation Adjustment Range	80 dB
Attenuation Resolution	1 dB
Power-on Startup Time	60 s
GNSS Signal Synchronization Time	< 180 s

GNSS Signal Simulation Capability

No.	Satellite System	Frequency Band	Channels
1	BDS	B1I	16
2	GPS	L1 C/A	16
3	GPS	L2	16
4	GPS	L5	16
5	GLONASS	L1	16
6	Galileo	E1	16

Distance vs Output Power Reference

Deception Distance	Output Power
5 km	5 W
10 km	20 W
20 km	50 W

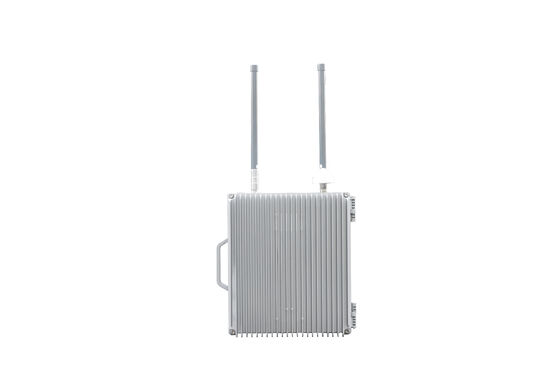

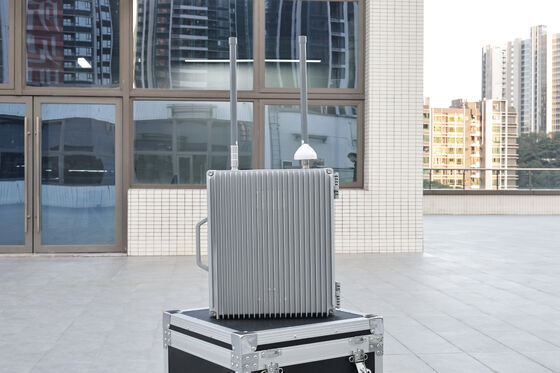

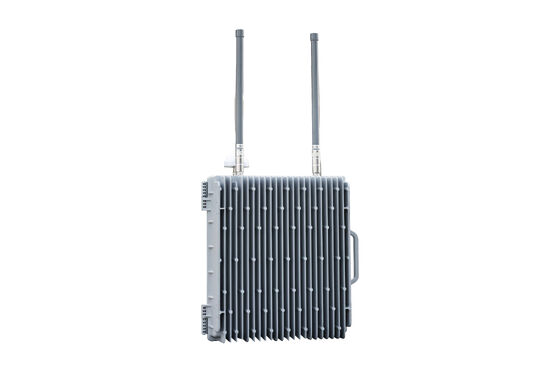

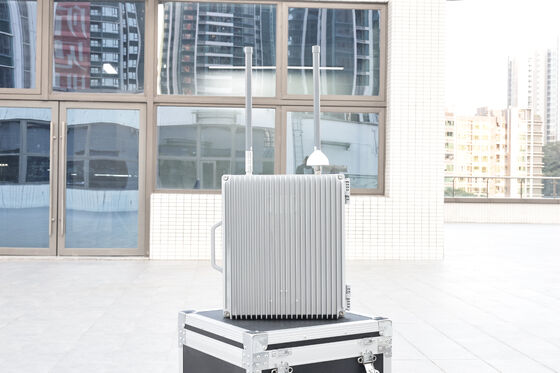

Product Images

Frequently Asked Questions

Are you a factory or trading company?

We are a factory located in Shenzhen City, China. Welcome to visit us.

Why Choose Us?

Excellent Products: Effective, Popular, Affordable
Fast Delivery: Priority Production for Urgent/Bulk Orders
After-Sales Service: Free Replacement for Faulty Products

What can you buy from us?

Jamming/Detection Module
Drone Jammer
Drone Detector
Integrated detection and jamming device

What is the process of placing an order?

Communication -> Payment -> Production -> Shipment

How about the shipping time and shipping method?

Typically 5-10 business days (depending on the product). We support almost any shipping method you require.

How to contact us?

Please leave your email address/WhatsApp number, and we will contact you.

Ordering Process

Send us products you're interested in
We provide detailed information and quotations
Consult with us about any product questions
Confirm order and receive payment information
We send package confirmation and tracking number
Provide feedback after receiving goods
