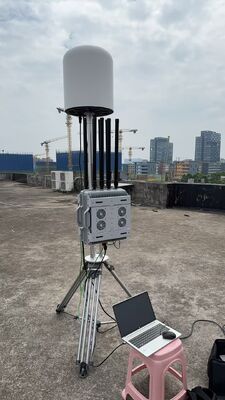

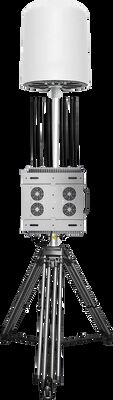

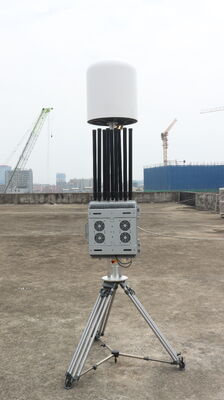

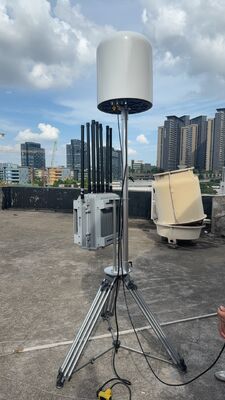

Fixed Drone Detection System with 10km Detection Distance and 360° Drone Intrusion Monitoring Including Black & White List
| Place of Origin | CHINA |
|---|---|
| Brand Name | LDSK |
| Model Number | LDKXM-J |
| Minimum Order Quantity | 1pcs |
| Price | $27143 |
| Delivery Time | 5-8 workdays |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 5000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| All Detection Models | The System Can Identify And Detect Common Brands Of Drones Such As DJI, AUTEL, Dahua, And Haoxiang, As Well As The Vast Majority Of Models On The Market Such As Self-made Traversing Machines And WiFi Machines. | Long Detection Distance | In An Open Environment, Some Models Can Detect Distances Of Over 10km. |
|---|---|---|---|
| Passive Detection | The Device Does Not Emit Any Electromagnetic Signals, Has No Electromagnetic Environmental Pollution, And Is Environmentally Friendly. | Comprehensive Protection | The Equipment Operates Continuously Day And Night Throughout The Day (7 * 24 Hours), 24 Hours A Day (suitable For Complex Electromagnetic Environments And Harsh Weather Environments), And Provides Comprehensive (360° Detection Of Drone Intrusion) Security |
| Fixed Installation | The Equipment Adopts A Fixed Structural Design, Which Can Be Installed And Used Outdoors For A Long Time | ||
| Highlight | 10km Detection Distance Fixed Drone Detection System,360° Drone Intrusion Monitoring Stationary Drone Detection System,Black & White List Drone Intrusion Monitoring System |
||
Product Description
Fixed Drone Detection & Location System with Automatic Jamming
The LDKXM-J is a comprehensive fixed drone detection system designed for continuous airspace surveillance. Through advanced signal analysis and data mining, it accurately monitors critical drone information including S/N code, model, coordinates (longitude, latitude, altitude), speed, home point, flight trajectory, and controller coordinates within its coverage area.
Key Applications
Ideal for low-altitude security in critical environments including government facilities, industrial sites, military compounds, airports, and border control areas.
System Capabilities
- Drone monitoring with comprehensive data collection
- Unique ID identification for drone verification
- UAV positioning with real-time coordinate display
- Pilot positioning with remote control location tracking
- Multi-target trajectory tracking for drone swarms
- Black and White List functionality for cooperative drones
- Intrusion alarm with audible and visual alerts
- Flight trajectory playback for historical analysis
- Detection record preservation with multidimensional data
- Data visualization analysis with charts and heat maps
- Electronic map support (Gaode, Bing, Baidu, Google)
- Multi-unit networking for large area coverage
- Integration with countermeasure and deception devices
- TDOA equipment networking for enhanced positioning
Performance Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Detection & Identification | DJI series, FPVs, Xiaomi, Yuneec, Hubsan, Powervision, Tello | |
| Localizable Models | DJI mavic, air, mini, FPV, avata | |
| Detection Frequency | 100MHz - 6000MHz | |
| Detection Distance | 1-10km | Environment dependent |
| Detection Height | 0-1000m | |
| Simultaneous Targets | ≥5 drones | |
| Trajectory Tracking | ≥5 tracks | |
| Azimuth Error | ≤1.5° (RMS) | |
| Positioning Accuracy | ≤10m | |
| Detection Success Rate | ≥95% | |
| Response Time | ≤5 seconds |
Mechanical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Detector Weight | ≤15kg | Host only |
| Size | H 56mm × Diameter 46mm (±2mm) |
Electrical Characteristics
| Parameter | Specification | Notes |
|---|---|---|
| Power Consumption | ≤100W | |
| External Power Supply | 100-220V AC |
Environmental Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Operating Temperature | -20°C to +65°C | |
| Protection Rating | IP65 |
Drone Jammer Technical Parameters
| Channel | Working Frequency | Output Power |
|---|---|---|
| 5.8G | 5725-5850MHz | 47dBm (50W) |
| 5.2G | 5150-5300MHz | 47dBm (50W) |
| 2.4G | 2400-2500MHz | 50dBm (100W) |
| GPS L1 | 1550-1620MHz | 47dBm (50W) |
| 1.4G | 1420-1530MHz | 47dBm (50W) |
| GPS L2 | 1170-1280MHz | 47dBm (50W) |
| FPV | 840-930MHz | 50dBm (100W) |
| FPV | 700-840MHz | 47dBm (50W) |
| 433MHz | 420-450MHz | 47dBm (50W) |
Total Configuration: 9 bands, 550W output power
Power Consumption: 1200W
Power Supply: AC220V, DC24-28V
Main Unit Weight: 45kg
Size: 513×462×233mm
Antennas: 9 omnidirectional antennas
Jammer Modules: 9
Cooling System: Systematic Smart Cooling
Jamming Technology: Noise-based
Humidity Range: 30%-95%
Operating Temperature: -20°C to +65°C
Jamming Range: 600m - 3km (mobile network dependent)
Power Consumption: 1200W
Power Supply: AC220V, DC24-28V
Main Unit Weight: 45kg
Size: 513×462×233mm
Antennas: 9 omnidirectional antennas
Jammer Modules: 9
Cooling System: Systematic Smart Cooling
Jamming Technology: Noise-based
Humidity Range: 30%-95%
Operating Temperature: -20°C to +65°C
Jamming Range: 600m - 3km (mobile network dependent)
