LLSKF09 Vehicle-mounted FPV UAV Jammer

Brand Name:	LDSK
Model Number:	LDSKC01
MOQ:	1
Price:	$1820
Delivery Time:	7-10 workdays
Payment Terms:	D/A,D/P,T/T,Western Union,,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Detection Frequency Band:

400–550 / 550–700 / 700–840 / 840–1000 / 1000–1300 / 2400–2500 / 5100–5300 / 5700–5900 MHz (support/customized)

Output Power:

400W

Antenna Gain:

3–8 DBi

Antenna Working Angle:

Omnidirectional 360° (vertical); 65° Horizontal

Jamming Distance:

300–2000 M (depends On Environment & Target)

Detectable Drones:

DJI, AUTEL, FIMI, PowerVision, YUNEEC, Etc.

Supply Ability:

5000pcs per month

Highlight:

IP65 Protection Portable Drone Detector

Real-time Tracking UAV Detection System

Portable Design Drone Tracking System

Product Description

LLSKF09 Vehicle-mounted FPV UAV Jammer

Product Description

TTSKF09 is a high-power vehicle-mounted FPV UAV jammer that disables remote-control and video transmission links, forcing unauthorized drones to return or land. Rugged, roof-installable, and built for mobile protection.

Key Features

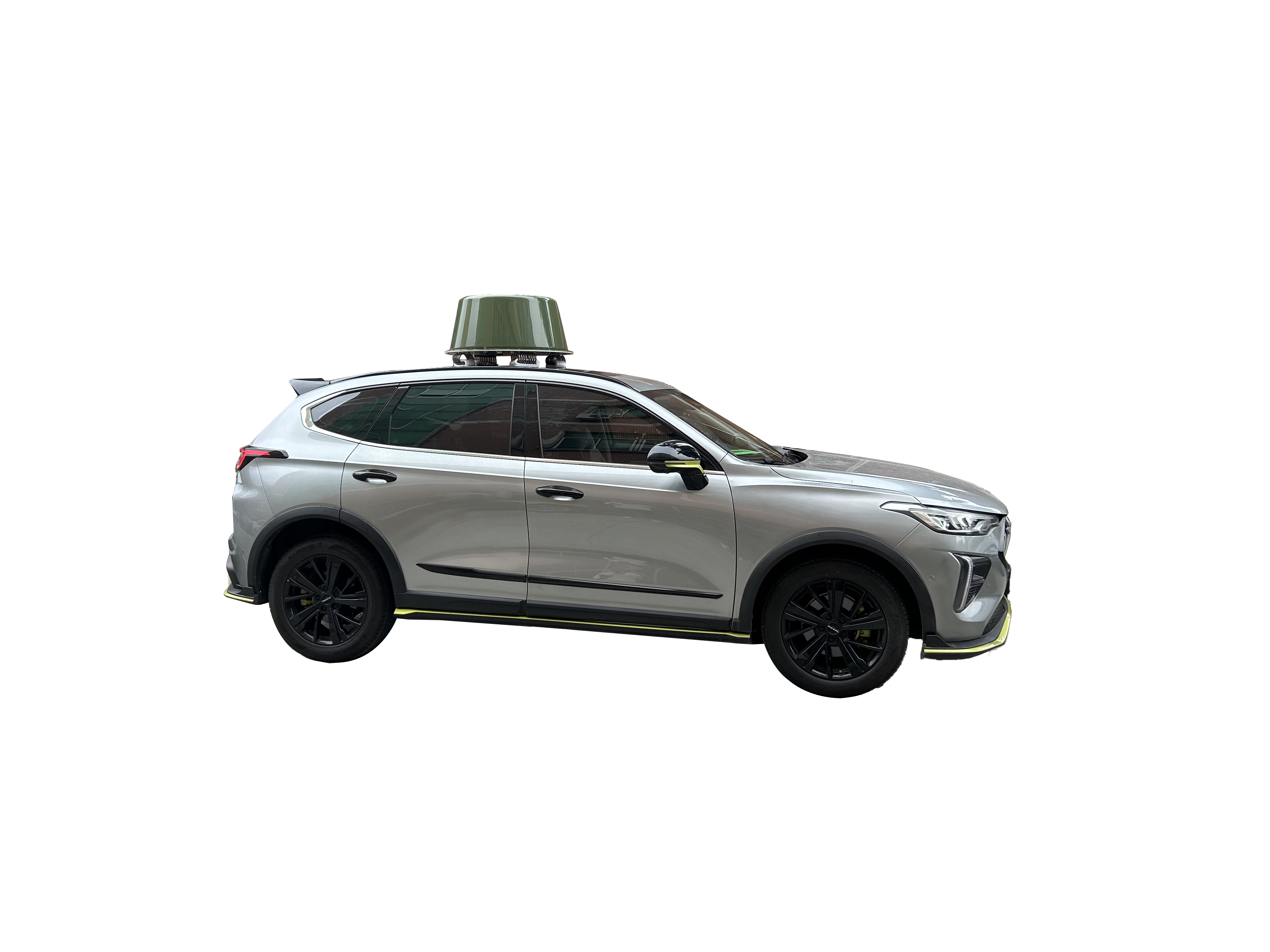

Purpose-built for vehicles — Roof-mount design protects moving cars, trucks, and convoys.
Multi-band coverage — Supports 400–1300 MHz, 2.4 GHz, 5.1–5.9 GHz and common FPV bands.
High total output power — 400W total output for robust jamming performance.
Wide jamming range — 300–2000 m (depends on target RC/FPV power, antenna height and environment).
Flexible power — Works from DC 24–29V with optional 40Ah external battery for off-grid use.
360° protection — Omnidirectional vertical coverage and wide horizontal coverage for continuous defense.
Simple control — Supplied remote control panel for easy operation while on the move.
Rugged and portable — Compact dimensions (Φ60cm × 35cm) and 20 kg curb weight.

Product Specifications

Item	Specification
Model	LLSKF09
Working Frequency	400–550 / 550–700 / 700–840 / 840–1000 / 1000–1300 / 2400–2500 / 5100–5300 / 5700–5900 MHz (support/customized)
Output Power	400 W (total)
Power Consumption	≈ 900 W
Antenna Gain	3–8 dBi
Antenna Working Angle	Omnidirectional 360° (vertical); 65° horizontal
Jamming Distance	300–2000 m (depends on environment & target)
Power Supply	DC 24–29 V (external battery); battery charged by AC 220 V
External Battery (Optional)	40 Ah (approx. 1 hour working time under typical load)
Control Method	Remote control panel
Dimension	Φ60 cm × 35 cm
Weight	20 kg
Operating Temperature	-20 °C to +65 °C

Product Images

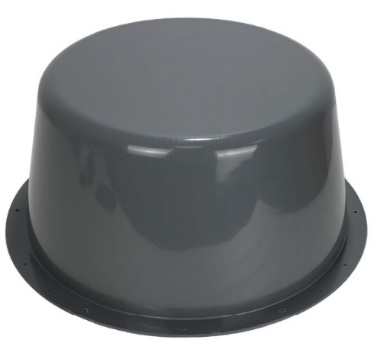

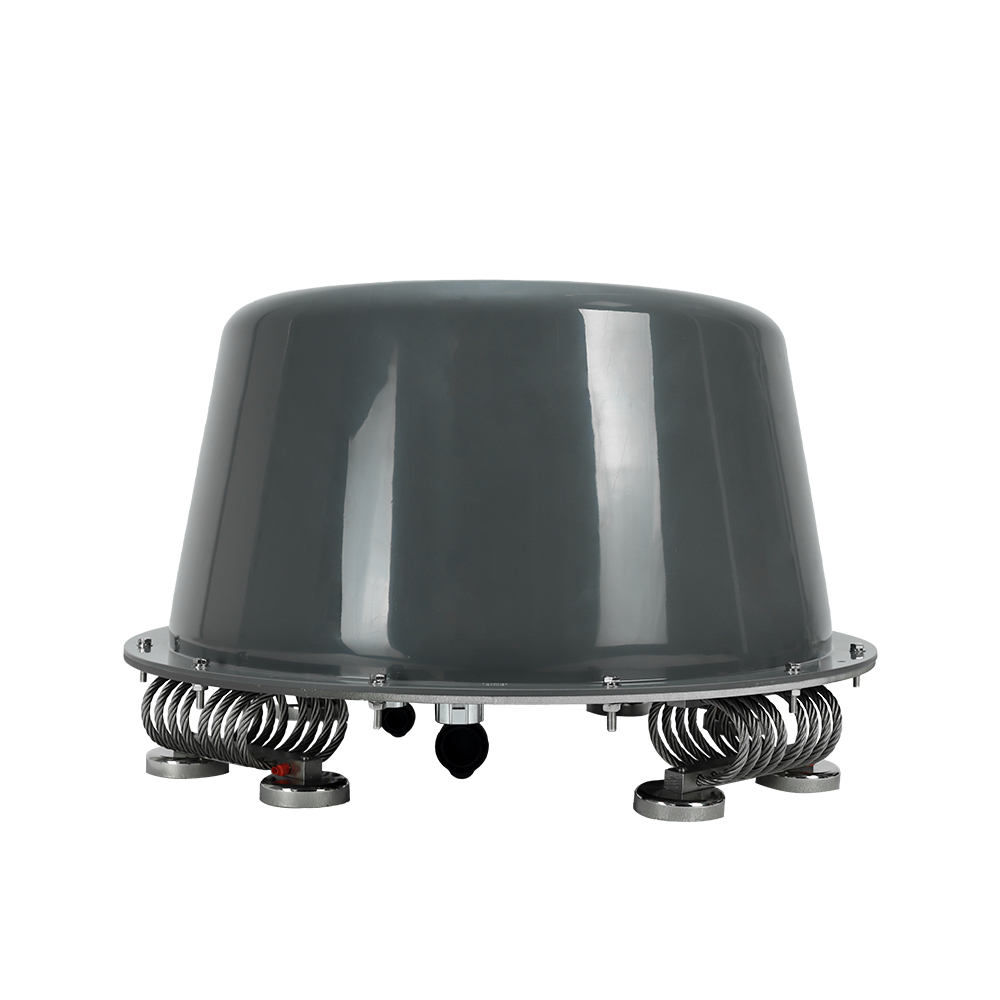

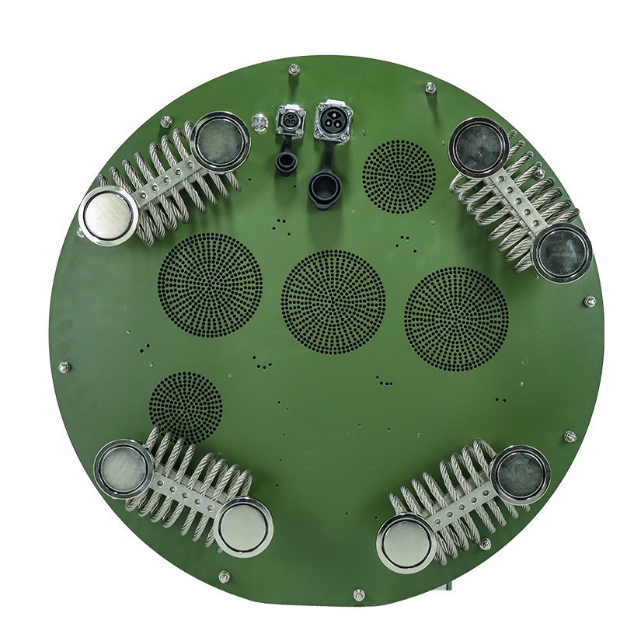

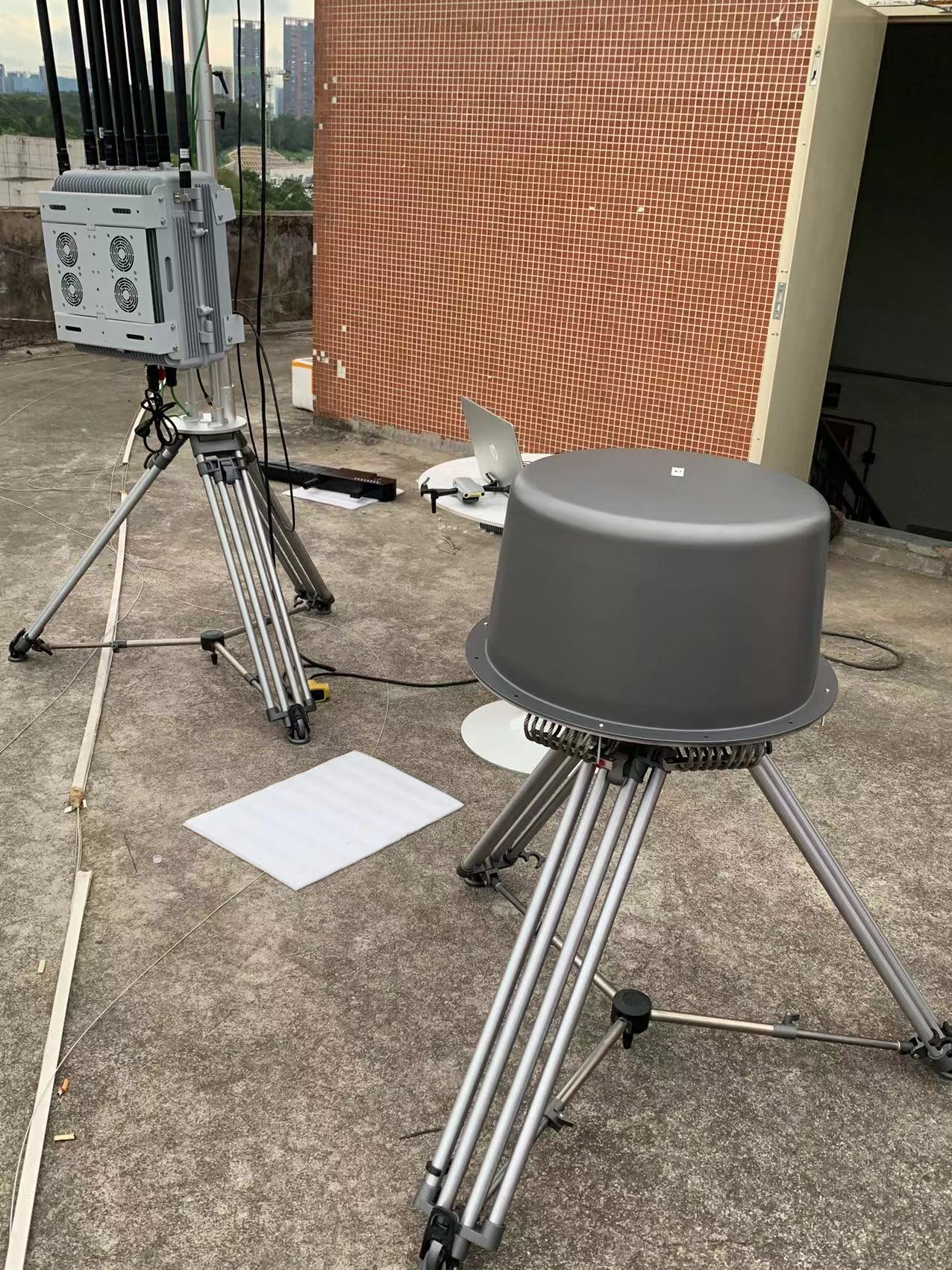

LLSKF09 Vehicle-mounted FPV UAV Jammer 0

LLSKF09 Vehicle-mounted FPV UAV Jammer 1

LLSKF09 Vehicle-mounted FPV UAV Jammer 2
