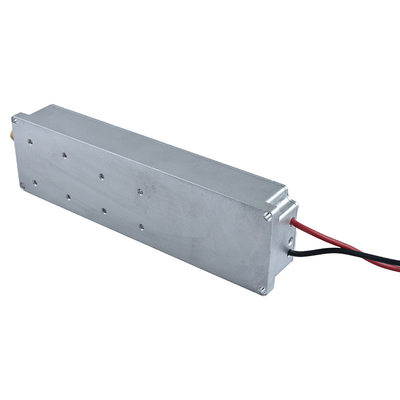

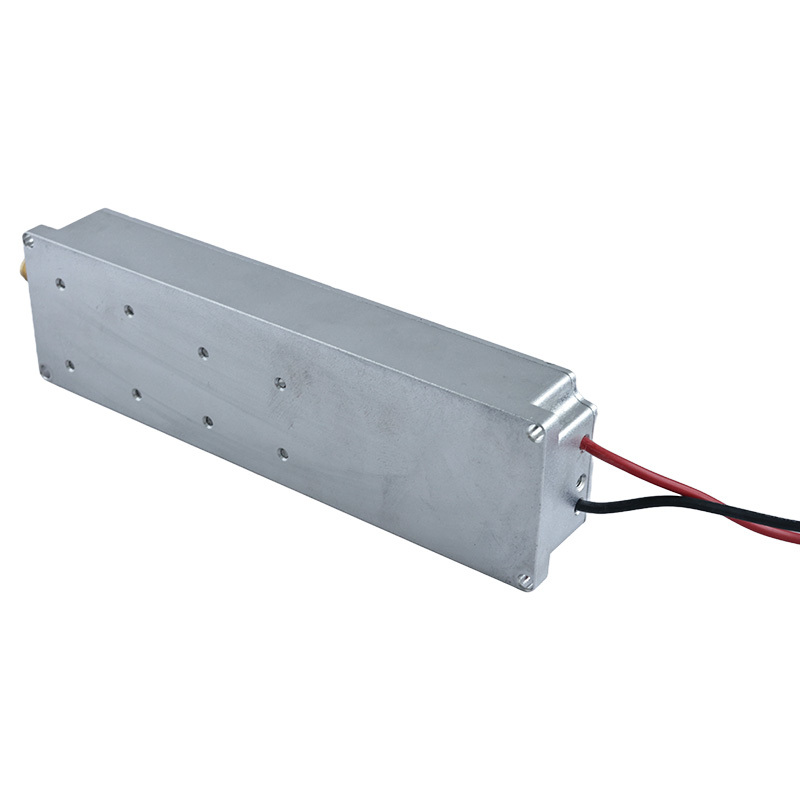

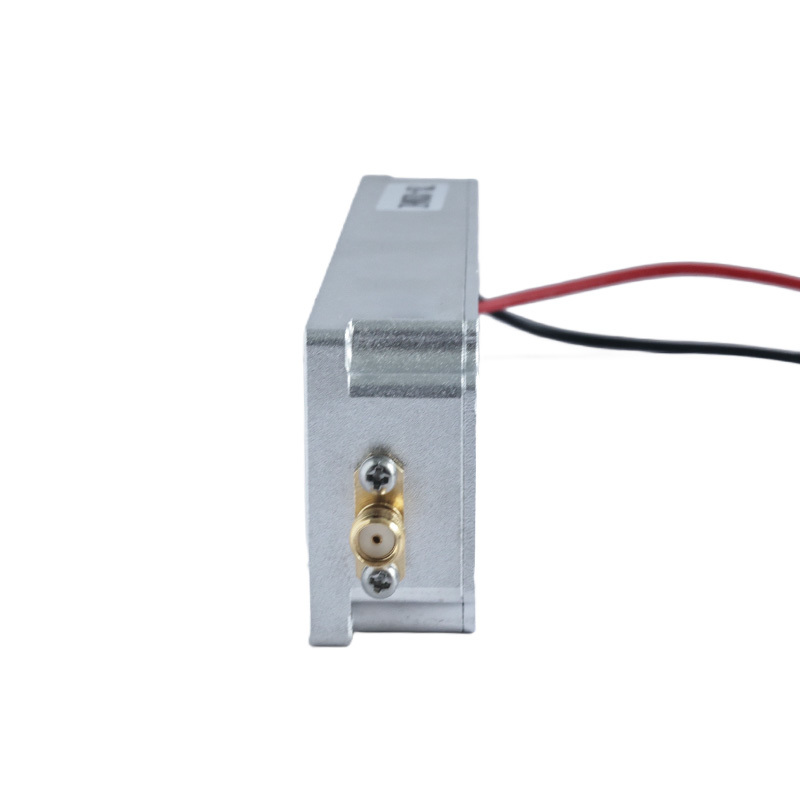

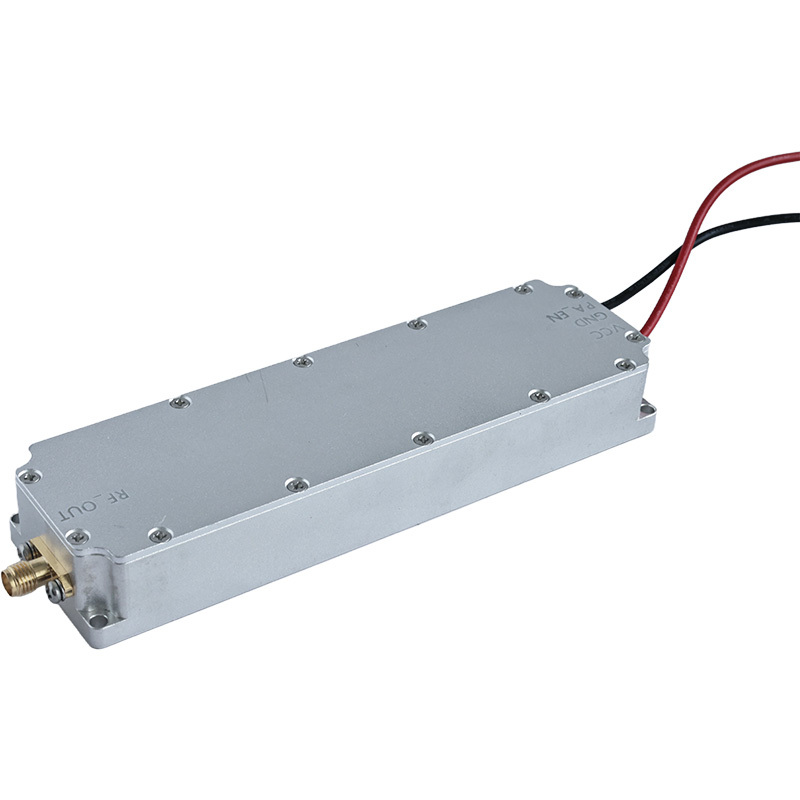

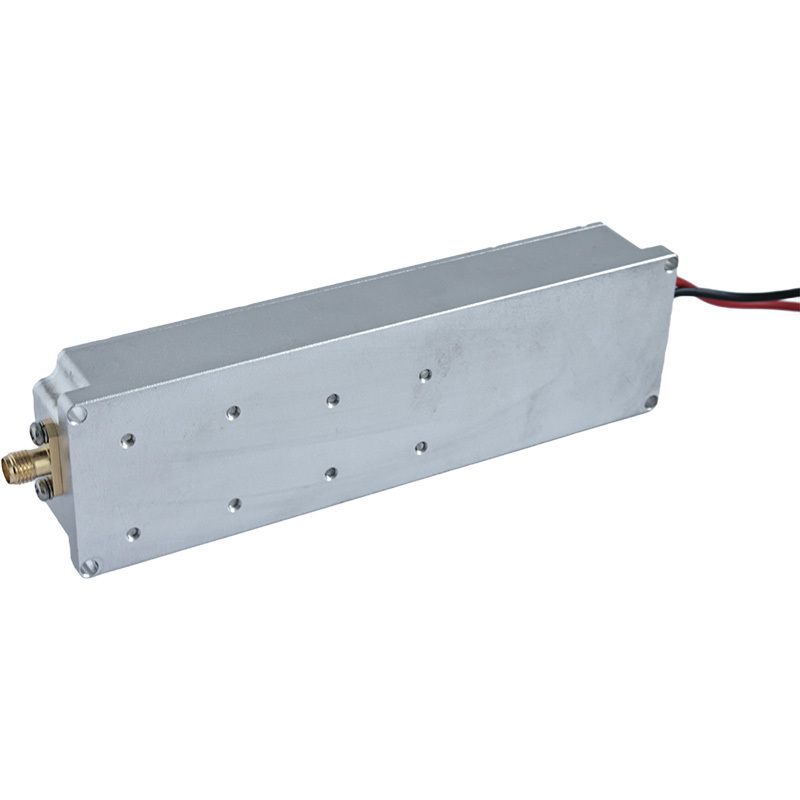

50W GaN Module 750-1050MHz Anti Drone RF Suppressor
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 1 piece |
| Price | $85-$90 |
| Delivery Time | 1-3 workdays |
| Payment Terms | D/A,D/P,T/T,Western Union,MoneyGram， Paypal |
| Supply Ability | 50000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High-Power 50W Output | Efficiently Blocks UAV And FPV Drone Signals In The 750-1050MHz Band. | Wide Frequency Range 750-1050MHz | Covers Multiple Drone Telemetry And Control Channels For Comprehensive Protection. |
|---|---|---|---|
| Precision Signal Suppression | Accurately Jams Drone Signals Without Affecting Nearby Communications. | Compact & Portable | Easy To Integrate Into Mobile, Vehicle-mounted, Or Fixed Anti-drone Setups. |
| Reliable & Durable | Built For Continuous Operation In Harsh Environmental Conditions. | FPV Drone Interference | Blocks FPV Video Transmission, Preventing Unauthorized Drone Surveillance. |
| Versatile Deployment | Supports Both Stationary And Portable Anti-drone Applications. | Plug & Play | Simple Installation And Operation For Rapid Deployment In Critical Areas. |
| Highlight | 50W GaN module RF suppressor,750-1050MHz anti-drone module,GaN module with RF suppression |
||
You can tick the products you need and communicate with us in the message board.
Product Description
--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.
--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.
--This document stipulates the radio frequency and monitoring technical indicators of the 600-700MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
--This document applies to all aspects of product design, verification, production and quality inspection of the 600-700MHz 50W power amplifier module.
Technical Parameters
| Item name | Technical parameters |
|---|---|
| Working frequency | 750-1050MHz |
| Power | 50W |
| Supply Voltage | DC 24-32V |
| Max Output Power | 47 dBm |
| Working Efficiency | ≥60% |
| Passband Riplpe | ≤2dB |
| Weight | 105 g |
| Operating Temperature | -10~+55ºC |
| Power supply requirements | ≥3.7A |
| RF Connector | SMA |
| Weight | 160g |
| Size | 37.3*112*19.5mm (Excluding SMA) |
| Connect line red | DC28-30V |
| Connect line black | GND |
| Connect line white | ENABLE |
Lead time
| Quantity(PCS) | <100pcs | <500 | 500-1000 | >1000 |
|---|---|---|---|---|
| Lead time(Days) | 3 | 3-5 | 7-12 | To be negotiated |
Customization
| Item | Logo | Frequency | Power | Packing |
|---|---|---|---|---|
| MOQ(PCS) | 1 | 1 | 1 | 1 |
Company profile
Shenzhen ladasky technology Co,.LTD, specializing in the field of advanced technology.
Our company is located in the vibrant city of Shenzhen, known as a hub of innovation and technology in China.
Our main products include RF module and anti FPV, which are designed with cutting-edge technology and strict quality control to meet the diverse needs of our customers.
The RF module offers high-performance and stable signal transmission, enabling seamless communication in various applications.
The anti FPV solution provides effective protection against unauthorized interference and ensures the security and privacy of video transmission.
We pride ourselves on our strong R&D team, composed of experts and engineers with rich experience and professional knowledge in the field.
They are constantly exploring and innovating to bring forth new and improved products that stay ahead of the market trends.
Our manufacturing facilities are equipped with state-of-the-art machinery and adhere to international quality standards.
This ensures that every product leaving our factory is of the highest quality and reliability.
Packing and Delivery
| Selling Units: | Single item |
| Single package size: | 20X10X5 cm |
| Single gross weight: | 0.2kg |
| Package Type: | Each piece is individually packed into a bag and then packed into a carton. |
