50W GaN RF Module Anti-Drone Signal Suppressor 720-1020MHz

  • 50W GaN RF Module Anti-Drone Signal Suppressor 720-1020MHz
  • 50W GaN RF Module Anti-Drone Signal Suppressor 720-1020MHz
  • 50W GaN RF Module Anti-Drone Signal Suppressor 720-1020MHz
  • 50W GaN RF Module Anti-Drone Signal Suppressor 720-1020MHz
  • 50W GaN RF Module Anti-Drone Signal Suppressor 720-1020MHz
Place of Origin Guangdong, China
Brand Name LDSK
Minimum Order Quantity 1 piece
Price $85
Delivery Time 1-3 workdays
Payment Terms D/A,D/P,T/T,Western Union,MoneyGram， Paypal
Supply Ability 50000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High-Power RF Output 50W GaN Amplifier Ensures Strong And Reliable Drone Signal Suppression. Frequency Coverage 720–1020MHz For Effective Jamming Of FPV Drones And UAVs.
Compact & Portable Small Form Factor Allows Easy Integration Into Mobile Or Fixed Anti-drone Setups. Precision Control Can Target Specific Frequencies To Neutralize Drones Without Affecting Other Signals.
Versatile Applications Ideal For Perimeter Protection, Law Enforcement, Critical Infrastructure, And Outdoor Events. Durable & Reliable Rugged Design Ensures Stable Performance Under Various Environmental Conditions.
Easy Integration Compatible With Existing Anti-drone Systems And Modules For Scalable Solutions.
Highlight

50W GaN RF anti-drone module

,

720-1020MHz drone signal suppressor

,

GaN RF anti-drone system
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
Product Overview
  • GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.
  • The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.
  • This document stipulates the radio frequency and monitoring technical indicators of the 600-700MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
  • This document applies to all aspects of product design, verification, production and quality inspection of the 600-700MHz 50W power amplifier module.
Technical Parameters
Item name Technical parameters
Working frequency 720-1020MHz
Power 50W
Supply Voltage DC 24-32V
Max Output Power 47 dBm
Working Efficiency ≥60%
Passband Riplpe ≤2dB
Weight 105 g
Operating Temperature -10~+55ºC
Power supply requirements ≥3.7A
RF Connector SMA
Weight 160g
Size 37.3*112*19.5mm (Excluding SMA)
Connect line red DC28-30V
Connect line black GND
Connect line white ENABLE

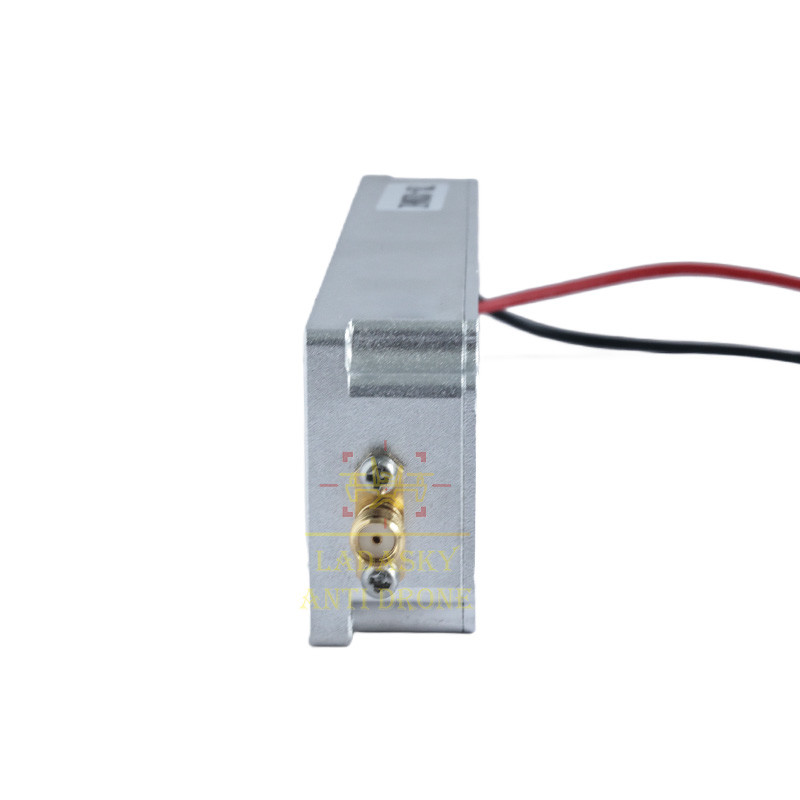

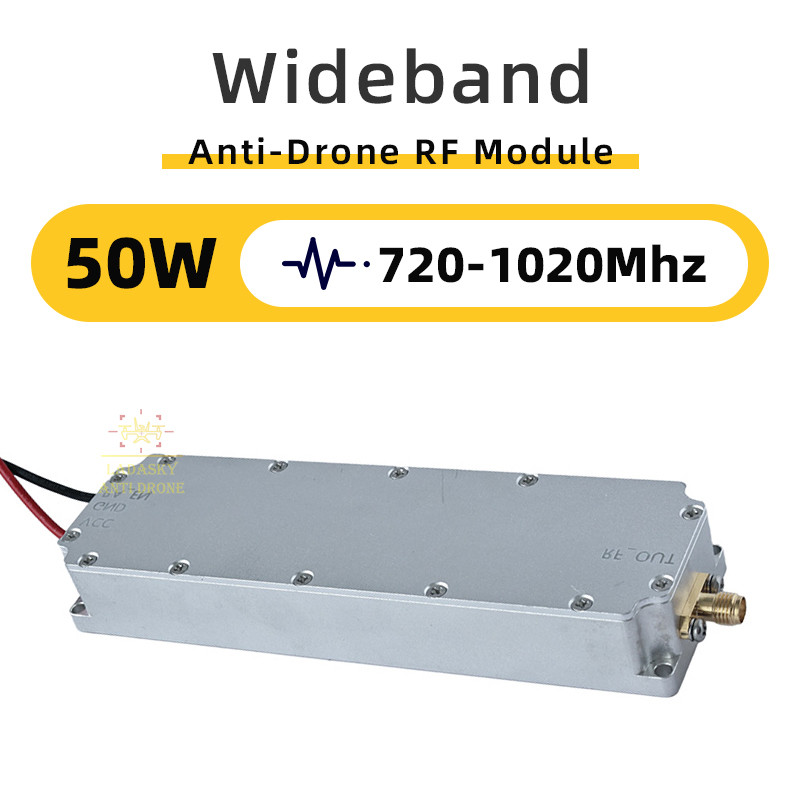

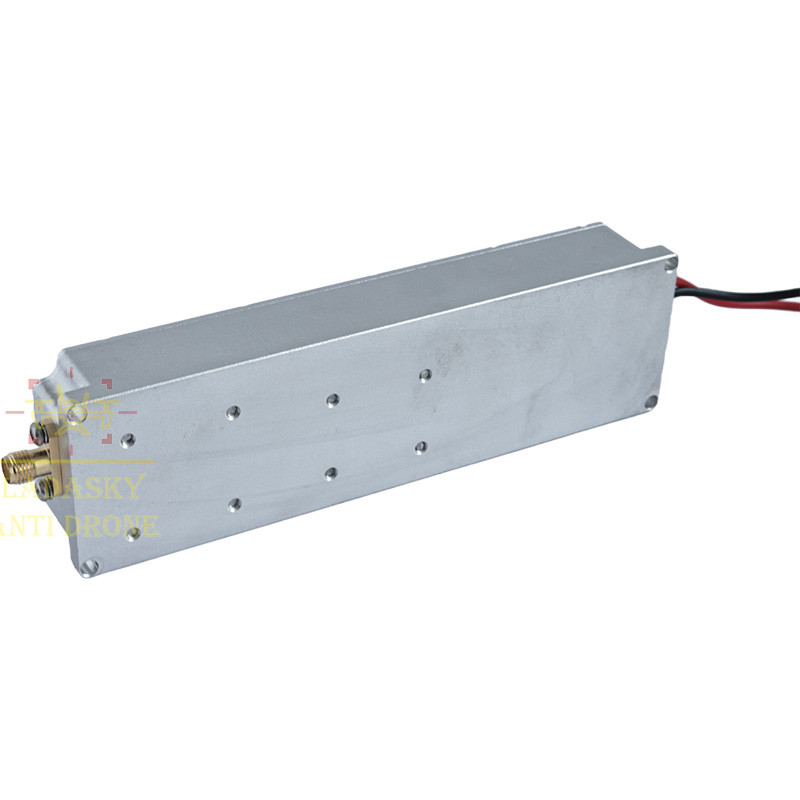

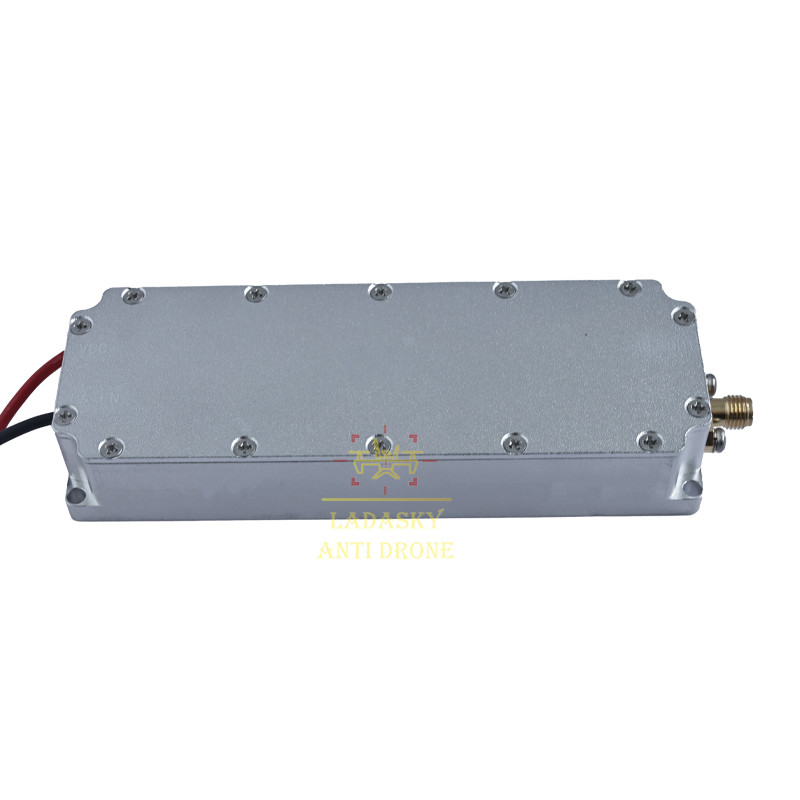

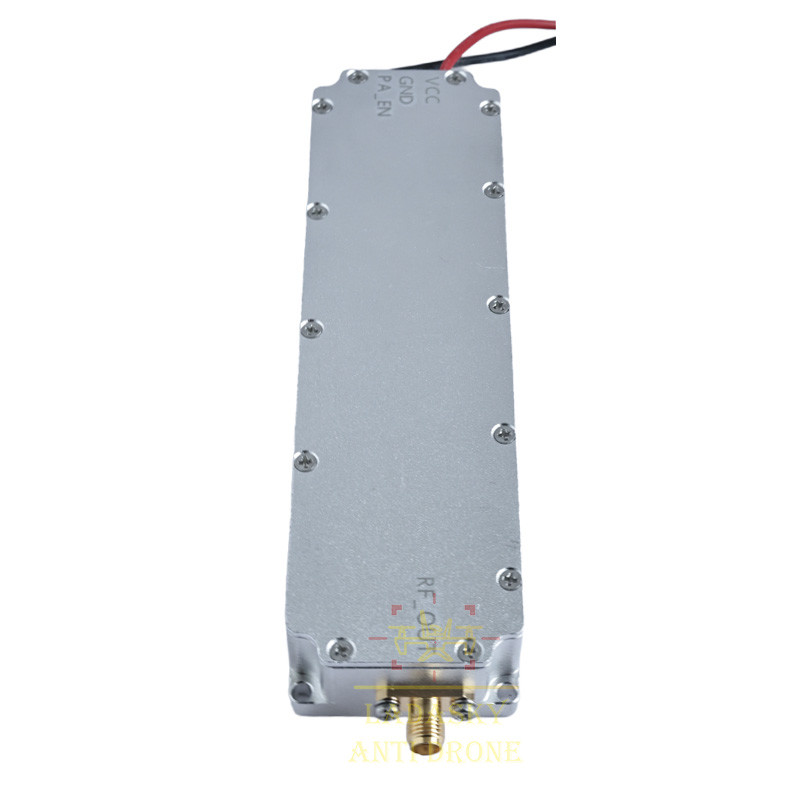

Product Images
50W GaN RF Module Anti-Drone Signal Suppressor 720-1020MHz 0









50W GaN RF Module Anti-Drone Signal Suppressor 720-1020MHz 150W GaN RF Module Anti-Drone Signal Suppressor 720-1020MHz 250W GaN RF Module Anti-Drone Signal Suppressor 720-1020MHz 350W GaN RF Module Anti-Drone Signal Suppressor 720-1020MHz 450W GaN RF Module Anti-Drone Signal Suppressor 720-1020MHz 5Lead time
Quantity(PCS) <100pcs <500 500-1000 >1000
Lead time(Days) 3 3-5 7-12 To be negotiated
Customization
Item Logo Frequency Power Packing
MOQ(PCS) 1 1 1 1
Company profile
50W GaN RF Module Anti-Drone Signal Suppressor 720-1020MHz 6

Shenzhen ladasky technology Co,.LTD, specializing in the field of advanced technology. Our company is located in the vibrant city of Shenzhen, known as a hub of innovation and technology in China.

Our main products include RF module and anti FPV, which are designed with cutting-edge technology and strict quality control to meet the diverse needs of our customers. The RF module offers high-performance and stable signal transmission, enabling seamless communication in various applications. The anti FPV solution provides effective protection against unauthorized interference and ensures the security and privacy of video transmission.

We pride ourselves on our strong R&D team, composed of experts and engineers with rich experience and professional knowledge in the field. They are constantly exploring and innovating to bring forth new and improved products that stay ahead of the market trends.

Our manufacturing facilities are equipped with state-of-the-art machinery and adhere to international quality standards. This ensures that every product leaving our factory is of the highest quality and reliability.

Packing and Delivery
Selling Units: Single item
Single package size: 20X10X5 cm
Single gross weight: 0.2kg
Package Type: Each piece is individually packed into a bag and then packed into a carton.
50W GaN RF Module Anti-Drone Signal Suppressor 720-1020MHz 7
