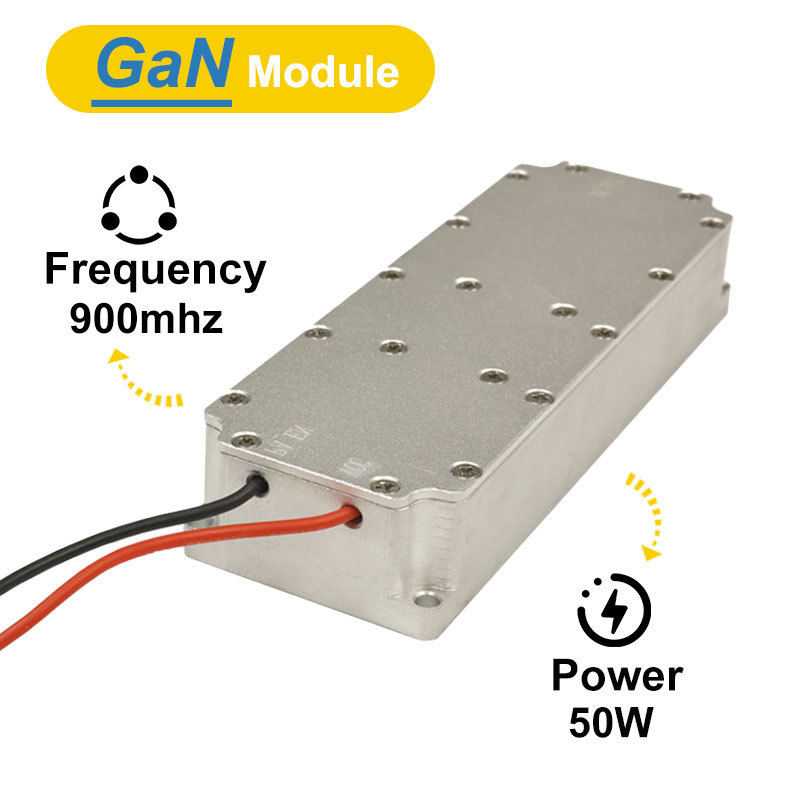

50W Anti Drone GaN Module 900MHz Customizable Frequency
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 1 piece |
| Price | $65-$98 |
| Delivery Time | 1-3 workdays |
| Payment Terms | D/A,D/P,T/T,Western Union,MoneyGram， Paypal |
| Supply Ability | 50000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 900MHz, Fully Customizable For Specific UAV/FPV Threats. | Power Output | 50W GaN Amplifier For Strong, Reliable Signal Suppression. |
|---|---|---|---|
| Compact Design | Small Size, Lightweight, Easy Integration Into Mobile Or Stationary Systems. | Versatile Application | Can Be Used For Security, Surveillance, Border Protection, And Critical Infrastructure. |
| Stable Performance | High Linearity And Low Noise For Continuous Operation In Complex RF Environments. | Easy Integration | Compatible With RF Modules, Jamming Systems, And Multi-frequency Setups. |
| High Efficiency | Optimized GaN Technology Ensures Maximum Output With Minimal Heat Generation. | ||
| Highlight | 50W GaN anti-drone module,900MHz customizable GaN module,high-power anti-drone frequency module |
||
Product Description
High-Power RF Module for Counter-UAV Applications
Key Features: Anti Drone GaN Module 50W, Counter FPV GaN Module, 900MHz Drone Jamming GaN Module
Product Specifications
| Attribute | Value |
|---|---|
| Customization | Support Customization From 10 To 6700MHz, 10-200W |
| Frequency | 900MHz (Customizable) |
| Max Output Power | 50W 47dBi |
| Working Voltage | 24-32V |
| Specification | 37.3×112×19.5mm |
Technical Parameters
| Item | Specification |
|---|---|
| Working Frequency | 900MHz (Support customization from 10 to 6700MHz) |
| Power | 50W (Support customization from 10W to 200W) |
| Supply Voltage | DC 24-32V |
| Max Output Power | 47 dBm |
| Working Efficiency | ≥60% |
| Passband Ripple | ≤2dB |
| Operating Temperature | -10~+55ºC |
| Power Supply Requirements | ≥3.7A |
| RF Connector | SMA |
| Size | 37.3×112×19.5mm (Excluding SMA) |
| Weight | 186g |
Product Features
- GaN technology enables high efficiency and high output power
- Supports wide frequency range customization (10-6700MHz)
- Power output customizable from 10W to 200W
- Robust design for operation in -10 to +55°C environments
- Compact size with SMA RF connector
Lead Time
| Quantity (PCS) | Lead Time (Days) |
|---|---|
| <100pcs | 3 |
| <500pcs | 3-5 |
| 500-1000pcs | 7-12 |
| >1000pcs | To be negotiated |
Customization Options
| Item | MOQ (PCS) |
|---|---|
| Logo | 1 |
| Frequency | 1 |
| Power | 1 |
| Packing | 1 |
Packing Information
| Selling Units | Single item |
|---|---|
| Package Size | 20×10×5 cm |
| Gross Weight | 0.2kg |
| Package Type | Each piece is individually packed into a bag and then packed into a carton |
Frequently Asked Questions
Why Choose Us?
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.
Order Process
- Send products you're interested in
- We provide detailed information and quotations
- Consult any questions about our products
- Confirm order and receive PI/payment link
- Receive package confirmation and tracking number
- Provide feedback after receiving goods
Contact Information
Email: jess@ladaskytech.com
About Ladasky Technology
Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise focusing on core technologies for counter-UAV systems/anti drone systems.
We specialize in RF sensing, signal processing, and active jamming systems.
Our product portfolio covers detection, jamming, and GNSS spoofing modules.
Ladasky is committed to delivering precise, efficient, and intelligent low-altitude defense solutions.
Our systems have been widely deployed in government agencies, law enforcement, and critical infrastructure.
We are driven by innovation and dedicated to building industry-leading counter-drone technology platforms.
