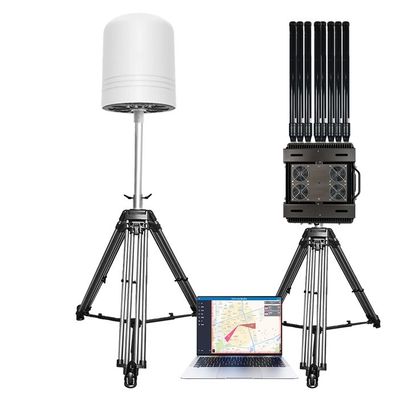

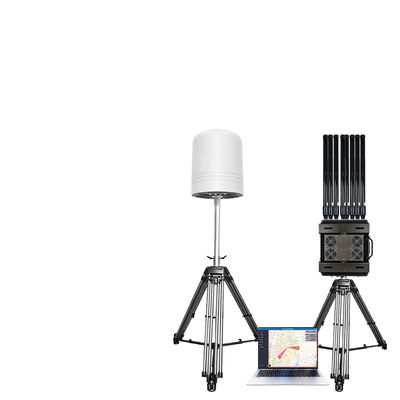

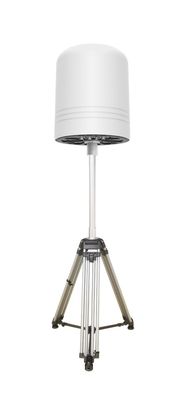

5km 100M-6Ghz Drone Detector 3km Jamming Stationary Integrated Equipment Full Frequency Jammer Detector 2.4G 5.2G 5.8G Anti Drone UAV FPV
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 1 piece |
| Packaging Details | 590mm (L) × 490mm (W) × 270mm (H) 20kg |
| Delivery Time | 5-7workdays |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram， Paypal |
| Supply Ability | 500pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | LDSKX1D | Working Mode | RF Sensing |
|---|---|---|---|
| Detection Frequency Band | 100MHz～6GHz | Detection Mode | 360°Passive Detection |
| Range | 3～10km | Direction Finding Frequency Band | 2GHz～6GHz |
| Drone Module Can Be Located | Multi Station Networkomh Cam Realize TDOA Mukti-model Precise Positioning, Trajectory Tracking And Other Functions. | ||
| Highlight | 5km Drone Detector,3km Jamming Drone Detector,Anti Drone Jammer Detector |
||
Product Description
Please leave your WhatsApp and Email,we will contact you!
The equipment integrates UAV detection, early warning, identification, direction fireding, positioning and other functions.--Drone detection
A single station can simultaneously find directions for multipletargets, two stations can cross-position (roughly),
multi-station networking (≥3) can build ahigh TDOA accurate positioning to achieve precise positioning and trajectory tracking of multiple UAV targets.
The equipment adopts passive spectrum detection technology, which has no environmentalinterference and high concealment.
It can work offline, has integrated industrialdesign, high integration, strong anti-interference ability, suitable for large-scale deploymentin complex urban electromagnetic environments.
Performance parameter
| N.O. | Project | Parameter | Remarks |
| 1 | Detection frequency band | 100MHz～6GHz | |
| 2 | Detection distance | 3～10km | |
| 3 | Number of detection targets | ≥20 sorties | meanwhile |
| 4 | Detection mode | 360°Passive detection | |
| 5 | Direction finding frequency band | 2GHz～6GHz | |
| 6 | Direction finding distance | ≥3km | |
| 7 | Number of direction finding targets | Not less than 3 sorties | meanwhile |
| 8 | Directional accuracy | ～10° | |
| 9 | DF refresh rate | 10-30 times/minute | |
| 10 | positioning accuracy | ≤20m | |
| 11 | Number of positioning trajectories | ≥5 sorties | meanwhile |
| 12 | Scan spectrum range | 100MHz～6GHz | |
| 13 | Drone module can be located | Multi station networkomh cam realize TDOA mukti-model precise positioning, trajectory tracking and other functions. | |
| 14 | Detecting and identifying drone models | Common brands of drones such as DJI, Autel, Fimi, Dahua, and Yuneec, as well as most domestically produced models such as walkthrough and WiFi machines on the market |
Product Technical Speficication
1)Drone positioning:Multiple XlDs network to locate drone.
2)Direction finding: A single station can provide direction find-ing for the target drone, and the electronic
map presents real-time drone azimuth information. It can simultaneously detect at least 3 drones.
3)Spectral scanning: 100MHz~6GHz spectral scanning, supporting display of spectrograms and waterfall plots.
4)Abnormal signal identification: The system can identify abnormal signals based on the spectrum scanning results and display them in the list to assist security personnel in handling abnormal signals.
5)Intrusion alarm: When the device detects a drone intrusion, it will sound or light an alarm.
6)Detection and Jamming linkage: It can link jamming or deception devices to deal with targets.
7)Scale networking: Support grid based deployment of multiple devices to meet large-scale coverage.
8)Trajectory playback: Supports drone flight trajectory playback, assisting security personnel in analyzing historical drone flight data.
9)Detection Record: The detection record list can retain historical detection records, including multi-dimensional information such as drone serial number, model, frequency, etc.
10)Electronic map: Switching electronic maps, including Amap, Baidu, and Google (offline).
11)Standard API interface: The device has an API interface that can upload data to a specified system.
12)Integrated design: The equipment adopts an integrated design, which is easy to install.
13)Black and white list: It can effectively distinguish cooperative and non-cooperative target drones
