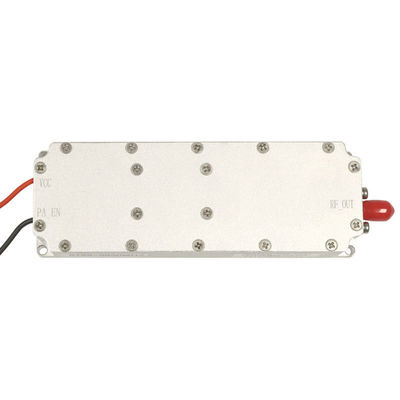

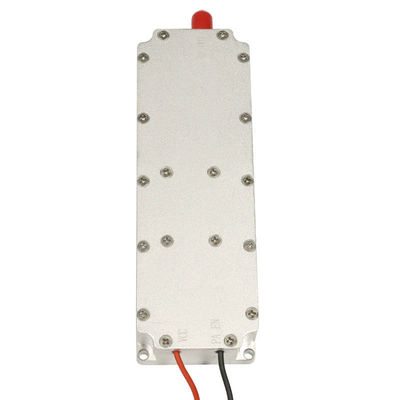

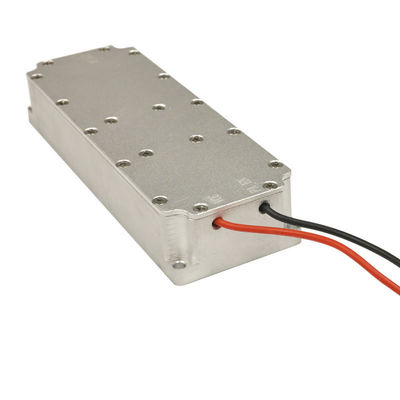

2.4G 50W 2400-2500mhz RF Module PA Module GaN Anti Drone Module Anti FPV module anti drone

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Model NO. | LDSK | Function | Amplifier |
---|---|---|---|
Model | 2400-2500MHz 2.4G 50W Module | Gain | 47dBm |
Size | 37.3*112*19.5mm | Interface | SMA |
Samples | US$ 98/Piece | Customization | Available | Customized Request |
Highlight | 2.4G 50W GaN Module,Autel Fpv Poland GaN Module |
Product Description
Product Parameters
--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.
--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.
--This document stipulates the radio frequency and monitoring technical indicators of the 2400-2500MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
--This document applies to all aspects of product design, verification, production and quality inspection of the 2400-2500MHz 50W power amplifier module/Anti drone module.
Item name | Technical parameters |
Working frequency | 2400-2500MHz (Support customization from 10 to 6700MHZ ) |
Power | 50W (Support customization from 10W to 200MHZ ) |
Supply Voltage | DC 24-32V |
Max Output Power | 47 dBm |
Working Efficiency | ≥60% |
Passband Riplpe | ≤2dB |
Operating Temperature | -10~+55ºC |
Power supply requirements | ≥3.7A |
RF Connector | SMA |
Size | 37.3*112*19.5mm (Excluding SMA) |
Weight | 186g |
Connect line red | DC28-30V |
Connect line black | GND |
Connect line white | ENABLE |
Lead time
Quantity(PCS) | <100pcs | <500 | 500-1000 | >1000 |
Lead time(Days) | 3 | 3-5 | 7-12 | To be negotiated |
Customization
Item | Logo | Frequency | Power | Packing |
MOQ(PCS) | 1 | 1 | 1 | 1 |
