Autel Anti Drone System 100W GaN Module For Mavic 3 Autel Fpv Ua Poland RF Module

Products

Stationary Drone Detection System

Autel Anti Drone System 100W GaN Module For Mavic 3 Autel Fpv Ua Poland RF Module

MOQ:	1 piece
Delivery Period:	1-3 workdays
Payment Method:	D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Capacity:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

LDSK

Model NO.:

LDSK

Frequency:

5150-5350MHz

Power:

100W

Gain:

50dBm

Product Weight:

24-36V

Size:

170*94*26.5mm (Excluding Connectors)

Customization:

Available | Customized Request

Minimum Order Quantity:

1 piece

Delivery Time:

1-3 workdays

Payment Terms:

D/A, D/P, T/T, Western Union, MoneyGram， Paypal

Supply Ability:

5000pcs per month

Highlight:

100w gan module for anti drone

anti drone gan power amplifier module

anti drone system rf module

Product Description

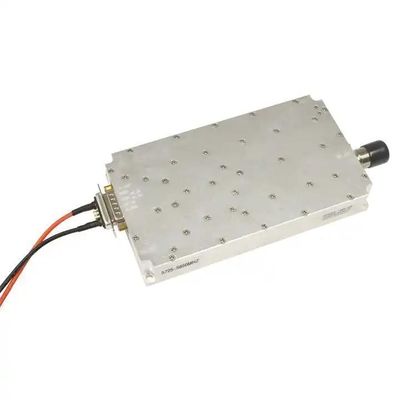

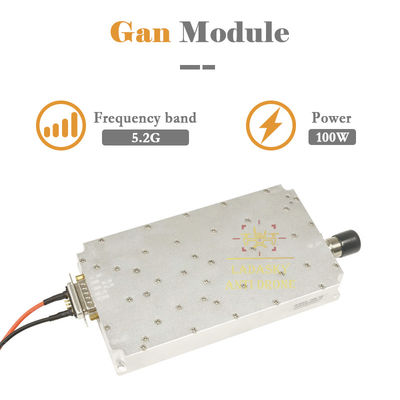

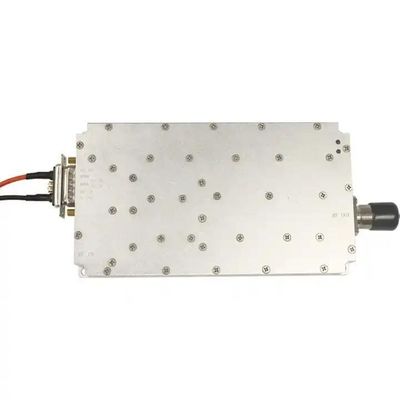

5.2G 5150-5350MHz 100W anti-drone gan module

Power and Frequnecy support Customzation form 90MHZ- 5.8G, 10W,20W,30W, 40W, 50W,100W

--The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the modul

Appearance and installation instructions:
1. Overall dimensions: 170*94*26.5mm

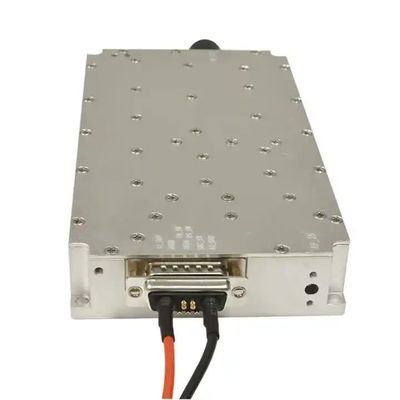

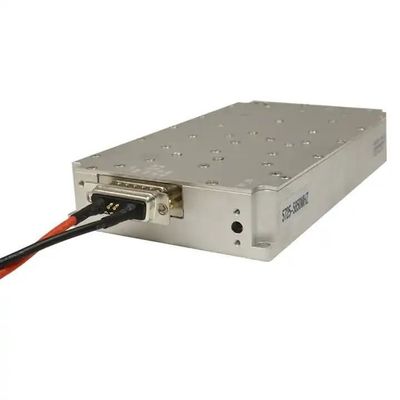

2. Interface form:
Power supply conditions: +30V power supply: 7W2 (male)
RF input interface: SMA-KFD (optional)

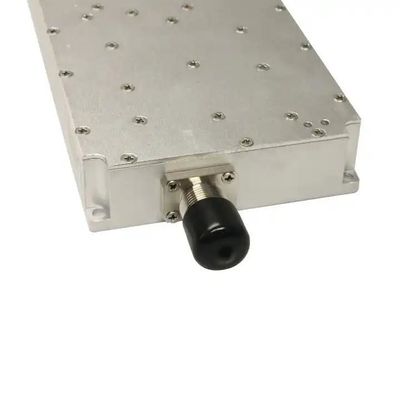

RF output interface: N-KFD
Control interface:
a.7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on, low level or floating, the power amplifier turns off)
b. Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level Level 5V/3.3V switch to external source)
3. Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.

Frequency	5150-5350Mhz
Output Power(dBm)	50dBm
In-band group delay	≤1us
Gain	45±1.0,45±1.0 (external input 9dbm, power amplifier output 50dbm)
In-band fluctuation (dB)	≤2.5 (peak-to-peak value)
Input voltage standing wave ratio	≤1.35
Output voltage standing wave ratio	≤1.3
Supply voltage Typical	+30Vdc Range: 24-36V
Supply current	+30Vdc@100W≤6.5A
Output RF connector	N-50KFD
Size	170×94×26.5mm (excluding connectors)
Input signal source	Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources
1 7W2 male socket 2 Feedthrough capacitors (from top to bottom)	1: A1 is the 30V power input, and A2 is GND; 2: The first pin of 7W2 is the PA_SW power amplifier enable; 3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off; 4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source;

Autel Anti Drone System 100W GaN Module For Mavic 3 Autel Fpv Ua Poland RF Module 0

Autel Anti Drone System 100W GaN Module For Mavic 3 Autel Fpv Ua Poland RF Module 1

Shenzhen ladasky technology Co,.LTD, specializing in the field of advanced technology. Our company is located in the vibrant city of Shenzhen, known as a hub of innovation and technology in China.

Our main products include RF module and anti FPV, which are designed with cutting-edge technology and strict quality control to meet the diverse needs of our customers. The RF module offers high-performance and stable signal transmission, enabling seamless communication in various applications. The anti FPV solution provides effective protection against unauthorized interference and ensures the security and privacy of video transmission.

1.Why Choose us?
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2.What is the process of placing an order?
First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.

3. How to contact us?
E-mail: amber@ladaskytech.com
Phone: +86 13556824863
