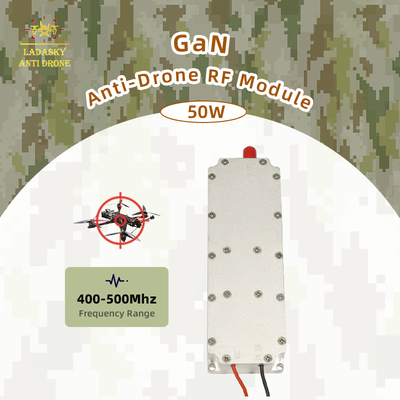

400-500mhz 50W GaN Module for Counter Fpv Anti Drone anti drone system RF module PA module power amplifier anti drone lora module anti fpv
  • name
  • name
  • name
  • name
  • name

400-500mhz 50W GaN Module for Counter Fpv Anti Drone anti drone system RF module PA module power amplifier anti drone lora module anti fpv

MOQ: 1 piece
Price: $65-98
Standard Packaging: 20*10*5cm, 0.5KG
Delivery Period: 1-3 workdays
Payment Method: D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Capacity: 50000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
LDSK
Customization:
Customization From 10 To 6700MHZ，10-200W
Frequency And Power:
400-500MHZ 50W
Gain:
47dBi
Voltage:
24-32V
Working Efficiency:
>60%
Size:
37.3*112*19.5mmmm
Minimum Order Quantity:
1 piece
Price:
$65-98
Packaging Details:
20*10*5cm, 0.5KG
Delivery Time:
1-3 workdays
Payment Terms:
D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability:
50000 pcs per month
Highlight:

Wide Operating Voltage GaN Module

Product Description
Product Parameters
400-500MHz 50W anti drone module for anti drone system

Power and Frequnecy support Customzation form 90MHZ- 6700mhz, 10W,20W,30W, 40W, 50w,100W,150W,200W

--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.

--This document stipulates the radio frequency and monitoring technical indicators of the 400-500MHZ 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

--This document applies to all aspects of product design, verification, production and quality inspection of the 400-500MHz 50W power amplifier module/Anti drone module.

Item name Technical parameters
Working frequency 400-500MHz (Support customization from 10 to 6700MHZ )
Power 50W (Support customization from 10W to 200MHZ )
Supply Voltage DC 24-32V
Max Output Power 47 dBm
Working Efficiency ≥60%
Passband Riplpe ≤2dB
Operating Temperature -10~+55ºC
Power supply requirements ≥3.7A
RF Connector SMA
Size 37.3*112*19.5mm (Excluding SMA)
Weight 186g
Connect line red DC28-30V
Connect line black GND
Connect line white ENABLE
Product Description



400-500mhz 50W GaN Module for Counter Fpv Anti Drone anti drone system RF module PA module power amplifier anti drone lora module anti fpv 0

400-500mhz 50W GaN Module for Counter Fpv Anti Drone anti drone system RF module PA module power amplifier anti drone lora module anti fpv 1

400-500mhz 50W GaN Module for Counter Fpv Anti Drone anti drone system RF module PA module power amplifier anti drone lora module anti fpv 2

400-500mhz 50W GaN Module for Counter Fpv Anti Drone anti drone system RF module PA module power amplifier anti drone lora module anti fpv 3

400-500mhz 50W GaN Module for Counter Fpv Anti Drone anti drone system RF module PA module power amplifier anti drone lora module anti fpv 4

400-500mhz 50W GaN Module for Counter Fpv Anti Drone anti drone system RF module PA module power amplifier anti drone lora module anti fpv 5

Lead time

Quantity(PCS) <100pcs <500 500-1000 >1000
Lead time(Days) 3 3-5 7-12 To be negotiated


Customization

Item Logo Frequency Power Packing
MOQ(PCS) 1 1 1 1




Company profile

400-500mhz 50W GaN Module for Counter Fpv Anti Drone anti drone system RF module PA module power amplifier anti drone lora module anti fpv 6

Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise focusing on core technologies for counter-UAV systems/anti drone systems. We specialize in RF sensing, signal processing, and active jamming systems. Our product portfolio covers detection, jamming, and GNSS spoofing modules.
Ladasky is committed to delivering precise, efficient, and intelligent low-altitude defense solutions. Our systems have been widely deployed in government agencies, law enforcement, and critical infrastructure. We are driven by innovation and dedicated to building industry-leading counter-drone technology platforms.


Packing and Delivery
Selling Units: Single item
Single package size: 20X10X5 cm
Single gross weight: 0.2kg
Package Type: Each piece is individually packed into a bag and then packed into a carton.

400-500mhz 50W GaN Module for Counter Fpv Anti Drone anti drone system RF module PA module power amplifier anti drone lora module anti fpv 7

FAQ

1.Why Choose us?
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2.What is the process of placing an order?
First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.

3. How to contact us?
amber@ladaskytech.com
