80W GaN RF Power Amplifier 400-3000MHz Anti-Drone Module
  • name
  • name
  • name
  • name
  • name
  • name

80W GaN RF Power Amplifier 400-3000MHz Anti-Drone Module

MOQ: 1
Delivery Period: 1-3 workdays
Payment Method: D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Supply Capacity: 50000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
LDSK
Certification
Guangdong, China
Model Number
LDSK-TZ-GAN-9
Customization:
Customization From 10 To 6700MHZ，10-200W
Frequency And Power:
400-3000MHZ 80W
Gain:
49dBm
Dimensions:
133.8*51.3*22.5MM
Operating Voltage:
24-32 V
Operating Ambient Temperature:
-10～+55℃
Highlight:
FPV Anti-Drone Module, 80W Anti-Drone Module, DJI Anti-Drone Module
Minimum Order Quantity:
1
Delivery Time:
1-3 workdays
Payment Terms:
D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Supply Ability:
50000 pcs per month
Highlight:

80W GaN RF power amplifier

,

400-3000MHz anti-drone module

,

GaN module with high power

Product Description
High-Power 80W GaN RF Power Amplifier UAV Wideband Interference Module
Product Specifications
Customization Customization From 10 To 6700MHZ，10-200W
Frequency And Power 400-3000MHZ 80W
Gain 49dBm
Dimensions 133.8*51.3*22.5MM
Operating Voltage 24-32 V
Operating Ambient Temperature -10～+55℃
Highlight FPV Anti-Drone Module, 80W Anti-Drone Module, DJI Anti-Drone Module
Product Description
High Power GaN RF Power Amplifier 80W | 400 -3000MHz Wideband Interference Module | Industrial & Communication Applications

The LDSK-TZ-GAN-9 High Power GaN RF Power Amplifier is designed for professional interference and signal amplification in the 400 -3000MHz frequency range. Built with advanced GaN technology, this amplifier delivers 80W stable output power, ensuring high performance in both narrowband and wideband applications.

Its constant voltage supply, forced cooling capability, and metal module housing make it ideal for continuous operation in demanding environments. With wide temperature adaptability (-10℃ to +55℃), excellent gain stability, and customizable connectors, it meets the needs of industrial, defense, and communication equipment manufacturers.

Applications include:
  • Signal jamming and interference systems
  • Wireless communication testing
  • Industrial RF systems
  • Research and development labs
  • Military and security communication projects
Technical Specifications
Parameter Specification Unit Remarks
Model LDSK-TZ-GAN-9 - -
Frequency Range 400-3000 MHz ≤120 MHz BW (400-1600MHz); ≤200 MHz BW (1600-3000MHz)
Output Power 49 ±0.5 dBm 80W @ ≤5.5A
Operating Voltage 30 V Range: 24-32V
In-band Fluctuation ≤2 dB Peak-to-peak
Gain Stability ±1.5 dB -40℃ to +55℃
Power Stability ±1.5 dB -40℃ to +55℃
Operating Temperature -10 to +55 ℃ Cold start capable
Power Supply Requirement ≥5.5A @ +30Vdc - Continuous 80W output
Power Amplifier Enable High/Low level - White wire control
RF Input Connector SMA - Female, outer threaded
RF Output Connector N - Female, outer threaded
Dimensions 133.8 × 51.3 × 22.5 mm Excluding connector
Mounting Hole 129.1 × 46.1 mm M3.0 × 4
Cooling Requirement Forced air / heat sink - -
Product Images

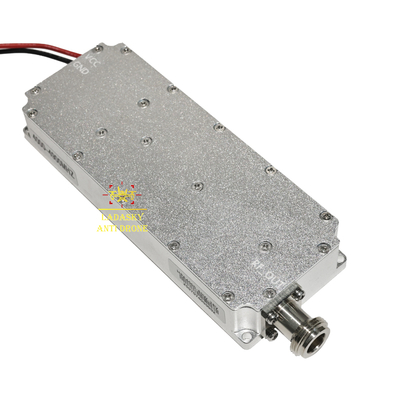

80W GaN RF Power Amplifier 400-3000MHz Anti-Drone Module 0
80W GaN RF Power Amplifier 400-3000MHz Anti-Drone Module 1
80W GaN RF Power Amplifier 400-3000MHz Anti-Drone Module 2
80W GaN RF Power Amplifier 400-3000MHz Anti-Drone Module 3
Lead Time
Quantity (PCS) <100pcs <500 500-1000 >1000
Lead time (Days) 3 3-5 7-12 To be negotiated
Customization Options
Item Logo Frequency Power Packing
MOQ (PCS) 1 1 1 1
Company Profile
80W GaN RF Power Amplifier 400-3000MHz Anti-Drone Module 4

Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. We focus on RF sensing, signal analysis, and active interference solutions. Our product portfolio includes UAV detection modules, RF suppression units, and navigation signal simulation systems.

Ladasky is committed to delivering precise, efficient, and intelligent low-altitude protection solutions. Our systems have been widely applied in government agencies, public security, and critical infrastructure protection. Driven by innovation, we are dedicated to building industry-leading UAV control and management technology platforms.

Packing and Delivery
Selling Units: Single item
Single package size: 20X10X5 cm
Single gross weight: 0.2kg
Package Type: Each piece is individually packed into a bag and then packed into a carton.
80W GaN RF Power Amplifier 400-3000MHz Anti-Drone Module 5
Frequently Asked Questions
1. Why Choose us?

We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2. What is the process of placing an order?

First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.
