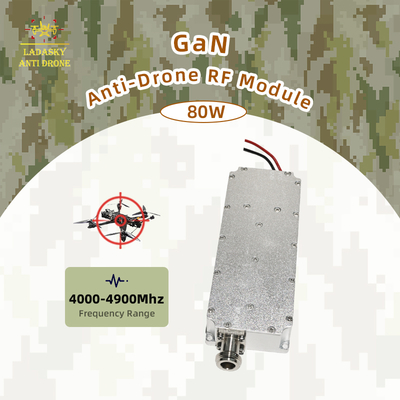

80W GaN Anti-Drone Module for DJI FPV Interference 4000-4900MHz
  • name
  • name
  • name
  • name
  • name
  • name
  • name

80W GaN Anti-Drone Module for DJI FPV Interference 4000-4900MHz

MOQ: 1
Price: $330-$350
Delivery Period: 1-3 workdays
Payment Method: D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Supply Capacity: 50000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
LDSK
Certification
Guangdong, China
Model Number
LDSK-TZ-GAN
Customization:
Customization From 10 To 6700MHZ，10-200W
Frequency And Power:
4000-4900MHZ 80W
Gain:
49dBm
Dimensions:
133.8*51.3*22.5MM
Weight:
330g
Operating Voltage:
24-32 V
Operating Ambient Temperature:
-10～+55℃
Highlight:
FPV Anti-Drone Module, 80W Anti-Drone Module, DJI Anti-Drone Module
Minimum Order Quantity:
1
Price:
$330-$350
Delivery Time:
1-3 workdays
Payment Terms:
D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Supply Ability:
50000 pcs per month
Highlight:

80W GaN anti-drone module

,

DJI FPV interference module

,

4000-4900MHz GaN drone jammer

Product Description
80W High-Power UAV Defense Module for FPV, DJI & Autel RF Interference Suppression
Key Features
  • Frequency Range: 4000-4900MHz (Customizable from 10 to 6700MHz)
  • High Power Output: 80W (Customizable from 10W to 200W)
  • Compact Dimensions: 133.8×51.3×22.5mm
  • Lightweight Design: 330g
  • Wide Operating Temperature: -10℃ to +55℃
  • High Efficiency: ≥45%
  • Versatile Applications: FPV, DJI, and Autel drone interference suppression
Technical Specifications
Parameter Value
Working Frequency 4000-4900MHz (Customizable 10-6700MHz)
Output Power 80W (Customizable 10-200W)
Supply Voltage DC 24-32V
Max Output Power 49 dBm
Working Efficiency ≥45%
Operating Temperature -10℃ to +55℃
RF Connector SMA
Dimensions 133.8×51.3×22.5mm
Weight 330g
Product Description
Our high-power 80W anti-drone module is designed for effective RF interference suppression against FPV, DJI, and Autel drones. The module features GaN technology for high efficiency and output performance, with domestic core components ensuring reliable operation in temperatures ranging from -10℃ to +55℃.
80W GaN Anti-Drone Module for DJI FPV Interference 4000-4900MHz 0 80W GaN Anti-Drone Module for DJI FPV Interference 4000-4900MHz 1 80W GaN Anti-Drone Module for DJI FPV Interference 4000-4900MHz 2
Lead Time
Quantity (PCS) Lead Time (Days)
<100 3
<500 3-5
500-1000 7-12
>1000 To be negotiated
Customization Options
Item MOQ (PCS)
Logo 1
Frequency 1
Power 1
Packing 1
Packing & Delivery
Each unit is individually packed in protective bags and then placed in cartons for shipping.
Package Details Specification
Selling Units Single item
Package Size 20×10×5 cm
Gross Weight 0.2kg
80W GaN Anti-Drone Module for DJI FPV Interference 4000-4900MHz 3
Frequently Asked Questions
1. Why Choose Us?
We offer professional expertise, sincere service, and excellent support to ensure a comfortable buying experience.
2. What is the order process?
- Send us your product selection
- We provide detailed information and quotations
- Discuss any product questions
- Confirm order and payment
- We ship with tracking information
- Provide feedback after receipt
3. How to contact us?
Email: emma@ladaskytech.com
About Ladasky Technology
Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in advanced UAV defense and low-altitude security systems. Our expertise includes RF sensing, signal analysis, and active interference solutions for government agencies, public security, and critical infrastructure protection.
