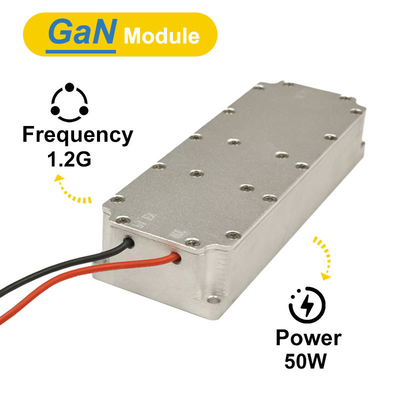

1.2GHz 50W GaN Anti-Drone RF Power Amplifier Module
  • name
  • name
  • name
  • name
  • name

1.2GHz 50W GaN Anti-Drone RF Power Amplifier Module

MOQ: 1 piece
Price: $65-98
Standard Packaging: 29.7*131*15.5mm
Delivery Period: 1-3 workdays
Payment Method: D/A,D/P,T/T,Western Union,MoneyGram， Paypal
Supply Capacity: 50000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
LDSK
Customization:
Support Customization From 10 To 6700MHZ，10-200W
Frequency And Power:
1.2G 50W
Working Voltage:
24-32V
Working Efficiency:
More Than 60%
Highlight:
Counter Fpv GaN Modules, 50Watt Anti Drone PA Module, 1.2G Drone Defense Module
Minimum Order Quantity:
1 piece
Price:
$65-98
Packaging Details:
29.7*131*15.5mm
Delivery Time:
1-3 workdays
Payment Terms:
D/A,D/P,T/T,Western Union,MoneyGram， Paypal
Supply Ability:
50000pcs per month
Highlight:

1.2GHz GaN power amplifier module

,

50W RF power amplifier module

,

anti-drone GaN amplifier module

Product Description
Product Parameters
1.2GHz 50W anti drone module for anti drone system

Power and Frequnecy support Customzation form 90MHZ- 6700mhz, 10W,20W,30W, 40W, 50w,100W,150W,200W

--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.

--This document stipulates the radio frequency and monitoring technical indicators of the 1.2GHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

--This document applies to all aspects of product design, verification, production and quality inspection of the 2400-2500MHz 50W power amplifier module/Anti drone module.

Item name Technical parameters
Working frequency 1.2GHz (Support customization from 10 to 6700MHZ )
Power 50W (Support customization from 10W to 200MHZ )
Supply Voltage DC 24-32V
Max Output Power 47 dBm
Working Efficiency ≥60%
Passband Riplpe ≤2dB
Operating Temperature -10~+55ºC
Power supply requirements ≥3.7A
RF Connector SMA
Size 37.3*112*19.5mm (Excluding SMA)
Weight 186g
Connect line red DC28-30V
Connect line black GND
Connect line white ENABLE
Product Description


1.2GHz 50W GaN Anti-Drone RF Power Amplifier Module 0

1.2GHz 50W GaN Anti-Drone RF Power Amplifier Module 1

1.2GHz 50W GaN Anti-Drone RF Power Amplifier Module 2

1.2GHz 50W GaN Anti-Drone RF Power Amplifier Module 3

1.2GHz 50W GaN Anti-Drone RF Power Amplifier Module 4

1.2GHz 50W GaN Anti-Drone RF Power Amplifier Module 5

Lead Time
Quantity (PCS) Lead Time (Days)
<100 3
<500 3-5
500-1000 7-12
>1000 To be negotiated
Customization Options
Item MOQ (PCS)
Logo 1
Frequency 1
Power 1
Packing 1
Packing & Delivery
Parameter Value
Selling Units Single item
Package Size 20×10×5 cm
Gross Weight 0.2kg
Package Type Individually packed in bag and carton

1.2GHz 50W GaN Anti-Drone RF Power Amplifier Module 6
Frequently Asked Questions
Why Choose Us?

We offer professional expertise, sincere service, prompt responses, and an excellent technical team to ensure a comfortable purchasing experience.

Order Process
  1. Send us products you're interested in
  2. We provide detailed information and quotations
  3. Consult with us about any product questions
  4. Confirm order and receive payment information
  5. We send package confirmation and tracking number
  6. Provide feedback after receiving goods
Contact Information

Email:jess@ladaskytech.com

 Ladasky Technology

Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in counter-UAV systems.

 We focus on RF sensing, signal processing, and active jamming technologies, offering detection, jamming,

and GNSS spoofing modules for government, law enforcement, and critical infrastructure protection.

1.2GHz 50W GaN Anti-Drone RF Power Amplifier Module 71.2GHz 50W GaN Anti-Drone RF Power Amplifier Module 8
