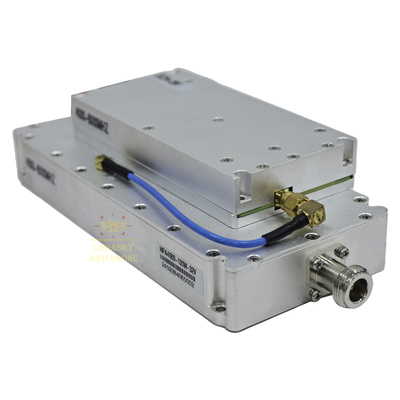

100W GaN RF Amplifier Module 4000-6000MHz for FPV Anti-Drone
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

100W GaN RF Amplifier Module 4000-6000MHz for FPV Anti-Drone

MOQ: 1
Delivery Period: 1-3 workdays
Payment Method: D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Supply Capacity: 50000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
LDSK
Certification
Guangdong, China
Model Number
LDK-TZ-KGN-100W
Frequency And Power:
4000–6000MHz 100W
Operating Voltage:
28-32V
Operating Ambient Temperature:
-10～+55℃
Size:
170 × 77 × 24.5mm
Highlight:
FPV Anti-Drone Module, 100W Anti-Drone Module, DJI Anti-Drone Module
Minimum Order Quantity:
1
Delivery Time:
1-3 workdays
Payment Terms:
D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Supply Ability:
50000 pcs per month
Highlight:

100W GaN RF amplifier module

,

4000-6000MHz FPV amplifier

,

GaN anti-drone amplifier module

Product Description
100W High Frequency GaN RF Amplifier 4000–6000MHz Wideband Power Module for FPV Interference
Frequency And Power 4000–6000MHz 100W
Operating Voltage 28-32V
Operating Ambient Temperature -10～+55℃
Size 170 × 77 × 24.5mm
Highlight FPV Anti-Drone Module, 100W Anti-Drone Module, DJI Anti-Drone Module
High Frequency GaN RF Amplifier 100W | 4000 -6000MHz Wideband Power Module for Industrial Communication

The LDK-TZ-KGN-100W High Power GaN RF Power Amplifier Module is designed using advanced Gallium Nitride (GaN) technology, providing high efficiency, high gain, and wide bandwidth performance across the 4000 -6000MHz frequency range. This compact, durable amplifier is engineered for industrial and communication applications, ensuring 100W continuous output power with outstanding thermal stability and gain flatness.

Its high-reliability metal housing integrates optimized matching networks and efficient thermal management, ensuring consistent operation in demanding environments. The module features over-temperature protection, VSWR protection, and supports RS-485 and TTL communication protocols for real-time monitoring of temperature, current, voltage, and RF output power.

Applications include:
  • Industrial RF transmission systems
  • Wireless communication testing
  • RF research and development projects
  • Data transmission and signal processing systems
Product Specifications
Parameter Specification Unit Remarks
Model LDK-TZ-KGN-100W - -
Frequency Range 4000-6000 MHz -
Working Voltage 32 V Range: 28-32V
Max Output Power 100 W 100W @ 10.2A Typical
Power Amplifier Efficiency 31 % @100W
Maximum Gain 45 dB -
Gain Flatness ≤5 dB -
Standard Input Power 5 dBm -
Max Non-Damaged Power ≤10 dBm -
Output Port VSWR ≤2 - No power, network score test
Operating Temperature -10 to +55 ℃ -
Power Stability ±1.0 dB -40℃ to +55℃
Power Supply Requirement ≥13.5A @ +32Vdc - 100W CW output
Control Interface RS-485 / TTL - 2.54mm 2×4 pin
Monitoring Functions Temp, current, voltage, RF output power - -
RF Connectors Input: SMA, Output: N-F - -
Dimensions 170 × 77 × 24.5 mm -
Weight 750 g -
Mounting Hole Size 152.3 × 71.5 mm M3.0 × 4
Housing Material Metal - High reliability
100W GaN RF Amplifier Module 4000-6000MHz for FPV Anti-Drone 0
Lead Time
Quantity (PCS) <100pcs <500 500-1000 >1000
Lead time (Days) 3 3-5 7-12 To be negotiated
Customization
Item Logo Frequency Power Packing
MOQ (PCS) 1 1 1 1
100W GaN RF Amplifier Module 4000-6000MHz for FPV Anti-Drone 1
Shenzhen Ladasky Technology Co., Ltd.

Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. We focus on RF sensing, signal analysis, and active interference solutions. Our product portfolio includes UAV detection modules, RF suppression units, and navigation signal simulation systems.

Ladasky is committed to delivering precise, efficient, and intelligent low-altitude protection solutions. Our systems have been widely applied in government agencies, public security, and critical infrastructure protection. Driven by innovation, we are dedicated to building industry-leading UAV control and management technology platforms.

Packing and Delivery
Selling Units: Single item
Single package size: 20X10X5 cm
Single gross weight: 0.2kg
Package Type: Each piece is individually packed into a bag and then packed into a carton.
100W GaN RF Amplifier Module 4000-6000MHz for FPV Anti-Drone 2
