LDK-TZ-KPG-KGAN 100W GaN RF Amplifier Module 300-1500、1500-2500、2500-4000、4000-6000MHz With Signal Source

Brand Name: LDSK
Model Number: LDK-TZ-KPG-KGAN 100W
MOQ: 1
Delivery Time: 10-15 workdays
Payment Terms: D/A,D/P,T/T,Western Union,Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Guangdong, China
Detecting Frequency:
300-1500、1500-2500、2500-4000、4000-6000MHz 100W
RF Connectors:
SMA-F Input, N-F Output (customizable)
Packaging Details:
Box
Supply Ability:
50000 pcs per month
Product Description

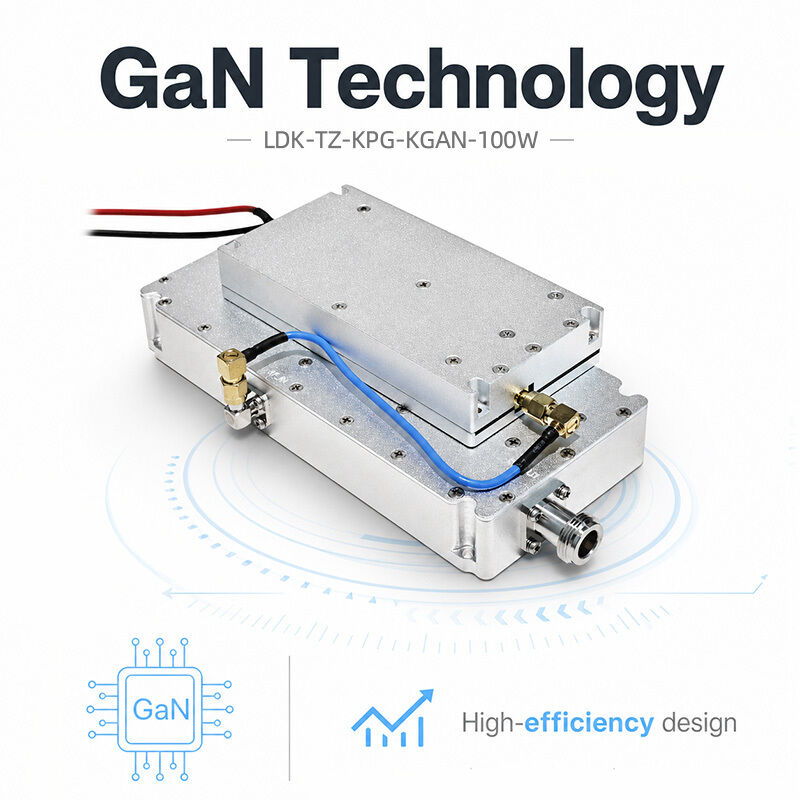

LDK-TZ-KPG 100W GaN Wideband RF Power Amplifier Module (300-1500,1500-2500,2500-4000,4000-6000MHz)
Product Specifications
TTSK-TZ-KPG-KGAN-100W is GaN RF power amplifier module manufactured by LADASKY TECH, delivering 100W continuous wave output with up to 43% high power efficiency.

Designed without built-in signal source, it matches external signal generators perfectly. Integrated SWR mismatch & temperature protection circuits avoid burnout. Dual RS485+TTL communication ports support real-time monitoring of voltage, current, temperature and RF output power, suitable for lab RF testing and narrowband wireless signal transmission.

Key Features

  • Optimized frequency band: 300–1500MHz high efficiency design
  • GaN chip technology: high temp resistance, high voltage endurance
  • Max 100W CW output power, 43% PA efficiency at full load
  • Built-in SWR protection + over-temperature dual safety circuit
  • High linearity & low signal distortion for stable RF amplification
  • Dual communication: RS485 status monitoring + TTL digital source linkage
  • All-metal shield housing, bottom heat sink cooling design
  • Standard SMA input + N female RF output, customizable connectors
  • Compact size, M3 screw mounting for easy integration

Technical Specifications

Item Spec Unit
Frequency Range 300–1500 MHz
Rated Working Voltage 32 (28–32) V DC
Max CW Output Power 100 W
Typical Operating Current 7.2 A
PA Efficiency @100W 43 %
Maximum Gain 45 dB
Gain Flatness ≤5 dB
Standard Input Power 5 dBm
Max Safe Input Power ≤10 dBm
Max Tolerable Output VSWR ≤2 -
Operating Temp Range -10 ~ +55 ℃
Required Supply Current ≥9 A@32V DC

LDK-TZ-KPG-KGAN 100W GaN RF Amplifier Module 300-1500、1500-2500、2500-4000、4000-6000MHz With Signal Source

LDK-TZ-KPG-KGAN 100W GaN RF Amplifier Module 300-1500、1500-2500、2500-4000、4000-6000MHz With Signal Source

LDK-TZ-KPG-KGAN 100W GaN RF Amplifier Module 300-1500、1500-2500、2500-4000、4000-6000MHz With Signal Source

LDK-TZ-KPG-KGAN 100W GaN RF Amplifier Module 300-1500、1500-2500、2500-4000、4000-6000MHz With Signal Source

LDK-TZ-KPG-KGAN 100W GaN RF Amplifier Module 300-1500、1500-2500、2500-4000、4000-6000MHz With Signal Source

LDK-TZ-KPG-KGAN 100W GaN RF Amplifier Module 300-1500、1500-2500、2500-4000、4000-6000MHz With Signal Source

LDK-TZ-KPG-KGAN 100W GaN RF Amplifier Module 300-1500、1500-2500、2500-4000、4000-6000MHz With Signal Source

LDK-TZ-KPG-KGAN 100W GaN RF Amplifier Module 300-1500、1500-2500、2500-4000、4000-6000MHz With Signal Source

LDK-TZ-KPG-KGAN 100W GaN RF Amplifier Module 300-1500、1500-2500、2500-4000、4000-6000MHz With Signal Source

LDK-TZ-KPG-KGAN 100W GaN RF Amplifier Module 300-1500、1500-2500、2500-4000、4000-6000MHz With Signal Source















Lead Time
Quantity (PCS) Lead Time (Days)
<100pcs 7
<500pcs 10
500-1000pcs 12
>1000pcs To be negotiated
Packing & Delivery

LDK-TZ-KPG-KGAN 100W GaN RF Amplifier Module 300-1500、1500-2500、2500-4000、4000-6000MHz With Signal Source


About Manufacturer
Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. We focus on RF sensing, signal analysis, and active interference solutions. Our product portfolio includes UAV detection modules, RF suppression units, and navigation signal simulation systems.
Ladasky is committed to delivering precise, efficient, and intelligent low-altitude protection solutions. Our systems have been widely applied in government agencies, public security, and critical infrastructure protection. Driven by innovation, we are dedicated to building industry-leading UAV control and management technology platforms.
Frequently Asked Questions
Why Choose Us?
We have professional knowledge, sincere service, patient reply, and excellent team that provides a comfortable buying experience.
Order Process
  1. Send products you're interested in
  2. We provide detailed information and quotations
  3. Consult any questions about our products
  4. Confirm order and receive payment information
  5. Receive product confirmation photos and tracking number
  6. Provide feedback after receiving goods
