RF Power Amplifier Module 300-2500MHz 100W High Power Amplifier 32V DC Supply for Lab RF Testing, Custom RF Connectors Supported
RF Power Amplifier Module 300-2500MHz 100W High Power Amplifier 32V DC Supply for Lab RF Testing, Custom RF Connectors Supported
Basic Properties
Country Of Origin
China
Brand Name
LDSK
Certificate
Guangdong, China
PRODUCT MODEL
LDK-LTJ01
Trading Properties
MOQ
1
Payment Method
D/A,D/P,T/T,Western Union,Paypal
Supply Capacity
50000 pcs per month
Product Summary
LDK-TZ-KPG 100W GaN Wideband RF Power Amplifier Module (300–2500MHz) Product Specifications This 100W GaN RF power amplifier module covers 300MHz to 2500MHz full frequency band, designed without built-in signal source to match external signal generators. Adopting gallium nitride chips, it delivers ...
Product Details
Highlight:
100W RF power amplifier module
,300-2500MHz high power amplifier
,32V DC GaN amplifier module
Detecting Frequency:
300-2500MHz 100W
Operating Ambient Temperature:
-10℃ ~ 55℃
Adjustable Power Range:
90–150W
Standard Input Power:
3dBm
Net Weight:
630g
Product Description

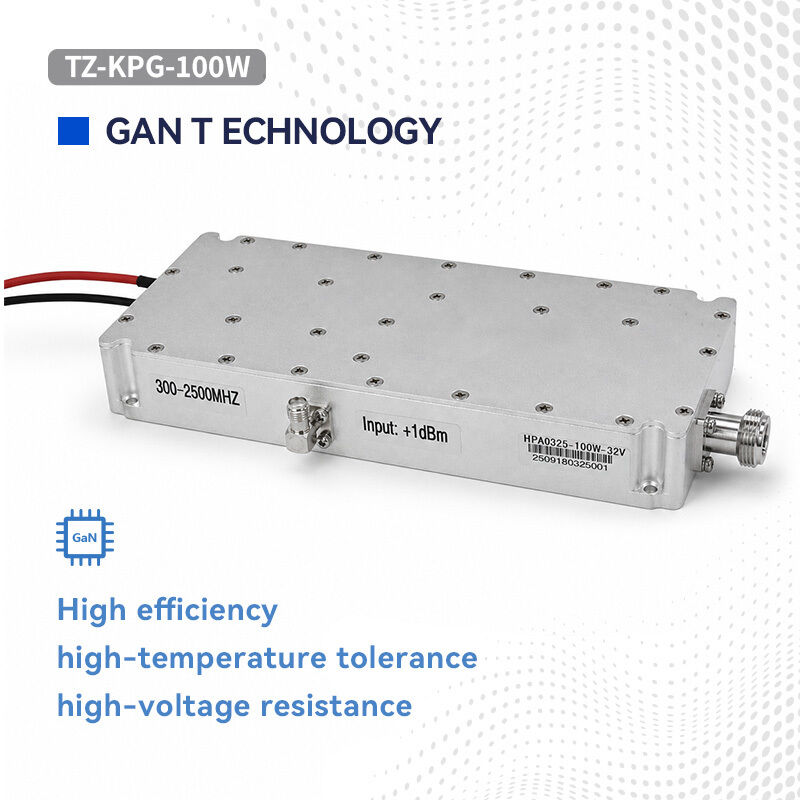

LDK-TZ-KPG 100W GaN Wideband RF Power Amplifier Module (300–2500MHz)
Product Specifications
This 100W GaN RF power amplifier module covers 300MHz to 2500MHz full frequency band, designed without built-in signal source to match external signal generators.
Adopting gallium nitride chips, it delivers high efficiency and stable linear output. Equipped with dual communication ports, users can monitor voltage, current, temperature and RF output power in real time, ideal for RF lab testing and wireless signal transmission systems.
Key Features
- Broadband coverage: 300–2500MHz continuous frequency band
- GaN chip core: high efficiency, heat & high voltage resistant
- 90–150W adjustable CW output power, typical 100W
- Built-in over-temperature & VSWR mismatch protection
- Dual communication: RS485 monitoring + TTL digital source linkage
- Compact metal housing, easy bottom heat sink installation
- Standard SMA input / N output RF port, customizable connectors
- Low distortion & high linearity RF signal output
Technical Specifications
| Parameter | Spec | Unit |
|---|---|---|
| Frequency Band | 300–2500 | MHz |
| Rated Working Voltage | 32 (28–32) | V DC |
| Typical Output Power | 100 | W |
| Adjustable Power Range | 90–150 | W |
| Max Gain | 48 | dB |
| Gain Flatness | ≤5 | dB |
| Standard Input Power | 3 | dBm |
| Max Safe Input Power | ≤10 | dBm |
| Operating Temp | -10 ~ +55 | ℃ |
| Required Supply Current | ≥12 | A@32V |
Lead Time
| Quantity (PCS) | Lead Time (Days) |
|---|---|
| <100pcs | 7 |
| <500pcs | 10 |
| 500-1000pcs | 12 |
| >1000pcs | To be negotiated |
