All-Scenario Drone Detection and Positioning Device
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Model Number | LDSKL02P |
| Minimum Order Quantity | 1 |
| Price | $4000 |
| Packaging Details | Carton |
| Delivery Time | 7 workdays |
| Payment Terms | D/A,D/P,T/T,Western Union,,Paypal |
| Supply Ability | 5000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Frequency Band | 100MHz～6GHz | Detection Radius | 1.5~2km (urban Environment) |
|---|---|---|---|
| Response Time | 3~ 5s | Time Of Endurance | 3~ 4h |
| Highlight | 6000MHz Anti Drone Detection Device, Wearable Anti Drone Detection Device | ||
| Highlight | handheld drone detector device,all-scenario drone positioning tool,portable drone detection equipment |
||
Product Description

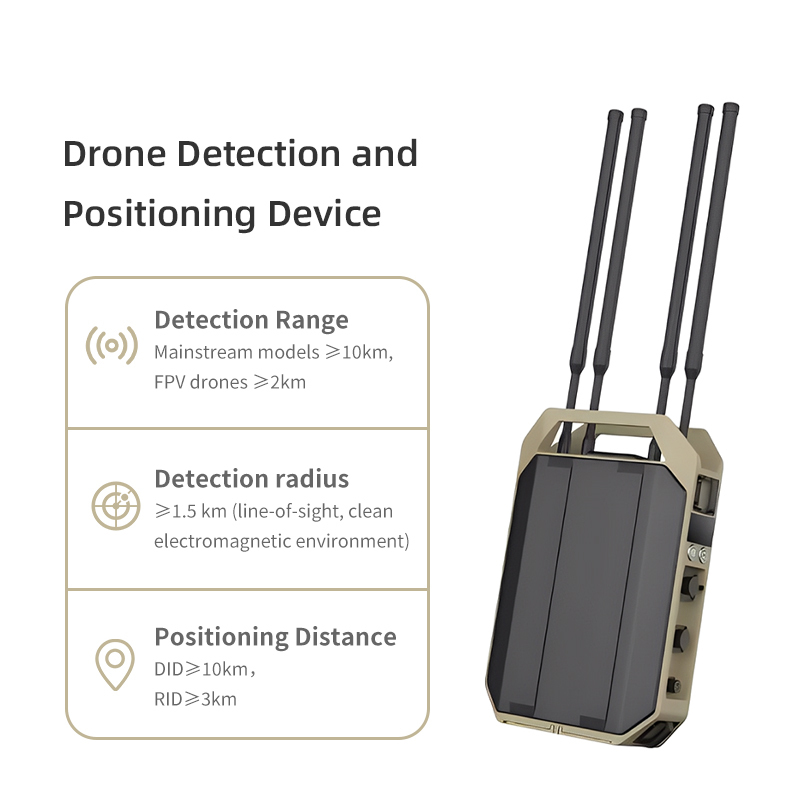

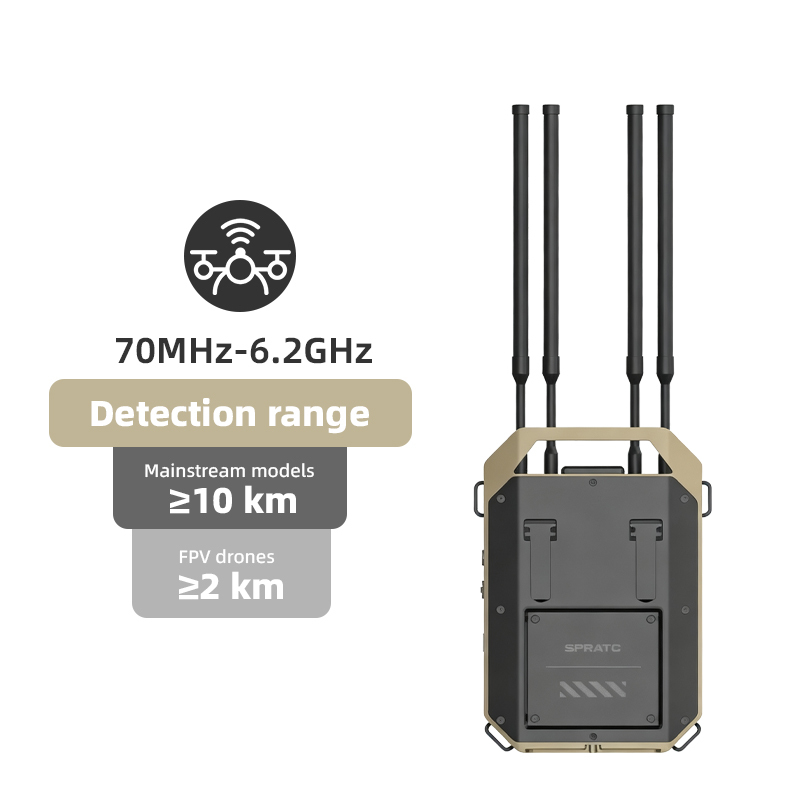

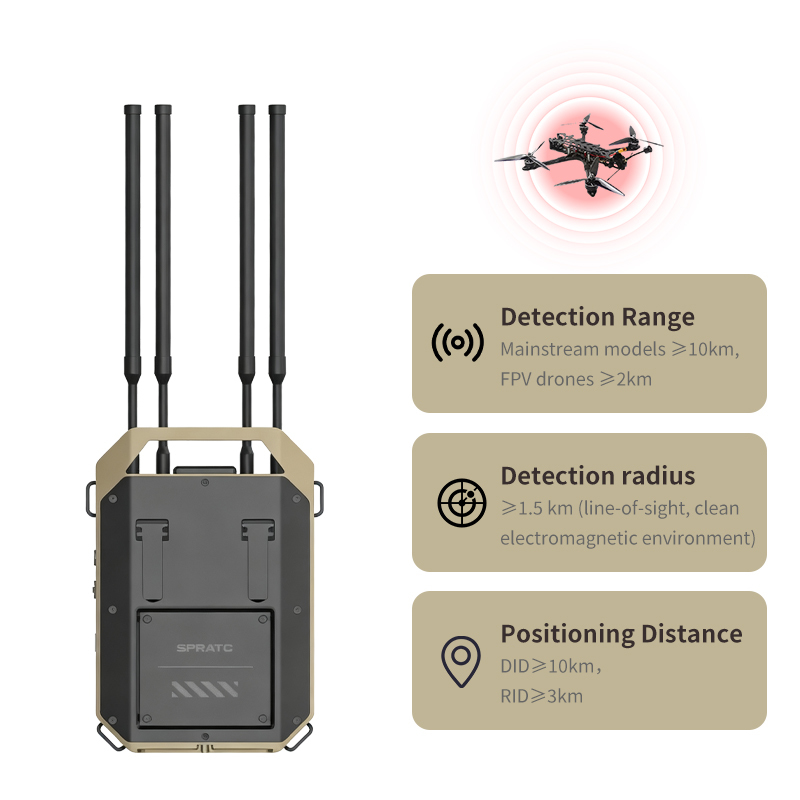

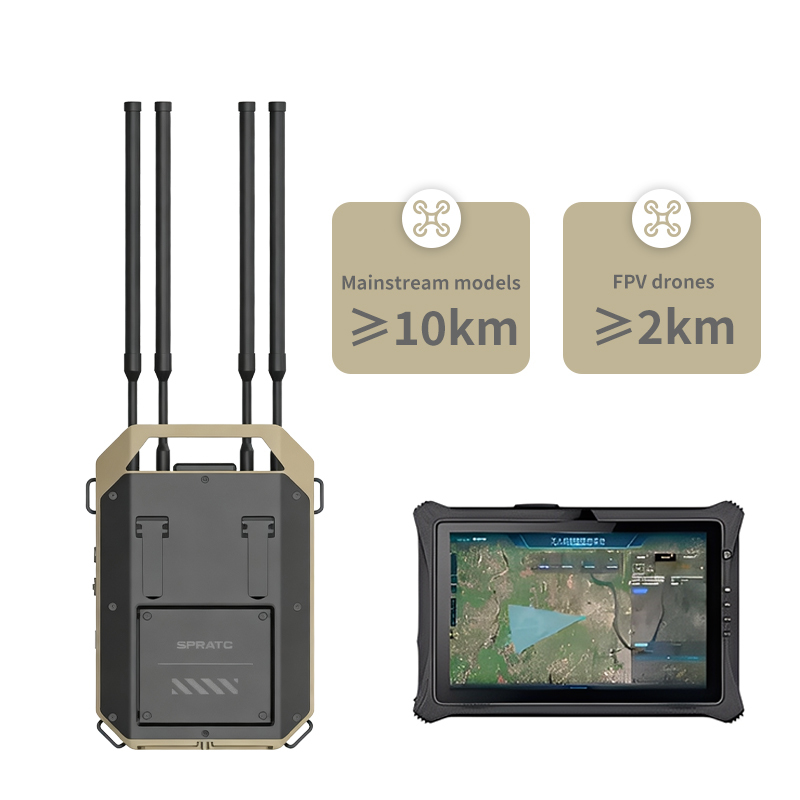

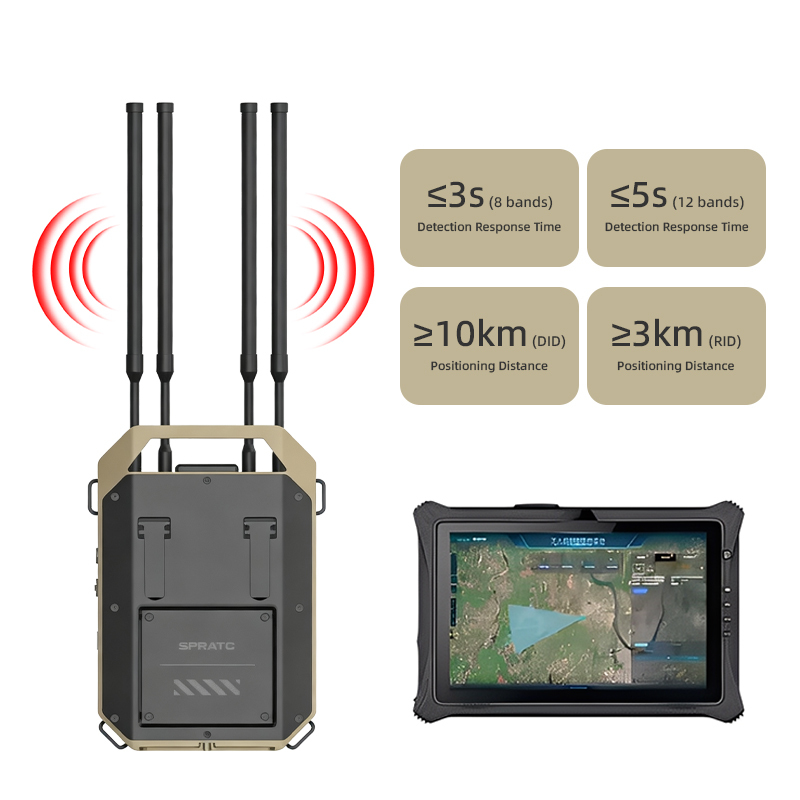

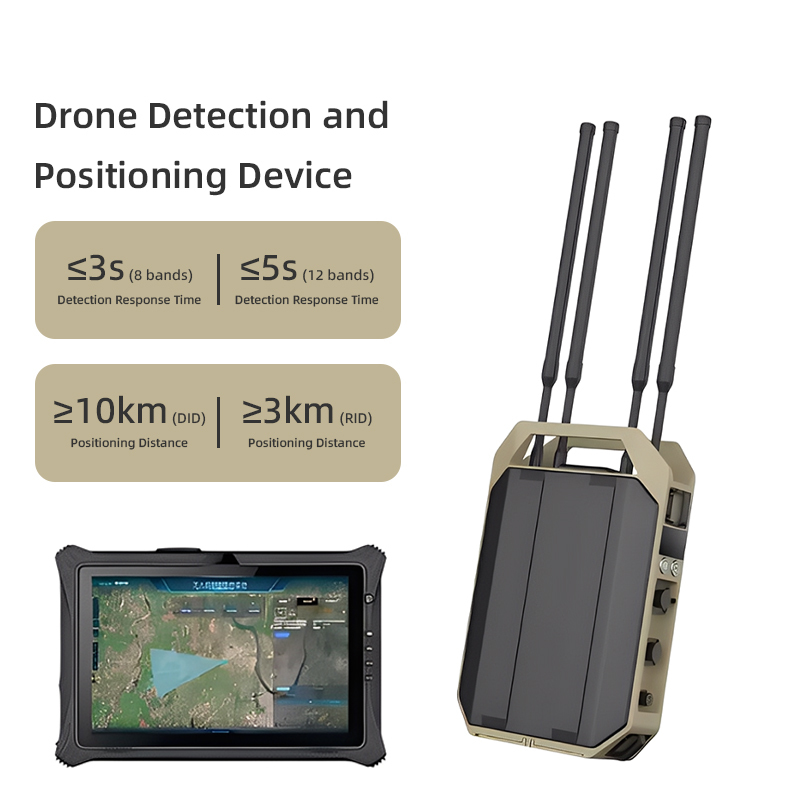

TTSK-TZ-600A All-Scenario Drone Detection & Positioning System | 12km Range | Real-Time FPV Video Capture
Key Specifications
Detection Frequency Band : 70 MHz – 6.2 GHz (Customizable Scan)
Max Detection Range : ≥10 km (Mainstream Drones) / ≥2 km (FPV Drones)
Positioning Range : DID: ≥10 km / RID: ≥3 km
Positioning Accuracy : ≤10 m
Simultaneous Detection Capacity : ≥10 UAVs
Battery Life (Main Unit) : ≥6 Hours
System Weight : ≤8 kg
Max Detection Range : ≥10 km (Mainstream Drones) / ≥2 km (FPV Drones)
Positioning Range : DID: ≥10 km / RID: ≥3 km
Positioning Accuracy : ≤10 m
Simultaneous Detection Capacity : ≥10 UAVs
Battery Life (Main Unit) : ≥6 Hours
System Weight : ≤8 kg
Product Overview
The LDK-TZ-600A All-Scenario Drone Detection & Positioning System is an integrated, multi-functional defense solution designed for critical airspace security. It seamlessly combines wide-spectrum signal detection, high-precision drone and pilot localization, and real-time FPV video interception into a single deployable system. Engineered for maximum operational flexibility, it supports backpack-mounted, vehicle-installed, and fixed-site deployments, making it the ideal choice for dynamic security teams and high-value asset protectio
Performance Specifications
| Item | Performance Index | Parameters |
|---|---|---|
| 1 | Detection Frequency Range | 70 MHz – 6.2 GHz (Full-band customizable scanning) |
| 2 | Detection Range (Mainstream UAV) | ≥ 10 km (Line-of-sight) |
| 3 | Detection Range (FPV UAV) | ≥ 2 km |
| 4 | Positioning Capability | Real-time positioning of drone & pilot (remote controller) |
| 5 | Positioning Accuracy | ≤ 10 m |
| 6 | Video Capture Distance | ≥ 1.5 km (Analog FPV transmission) |
| 7 | Response Time | ≤ 3 s (8 bands) / ≤ 5 s (12 bands) |
| 8 | Simultaneous Targets | ≥ 10 UAVs |
| 9 | Alarm Modes | Sound / Vibration / Light |
| 10 | Operational Deployment | Backpack / Fixed-site / Vehicle-mounted |
Key Features
- Full-Spectrum Detection: Covers 70 MHz to 6.2 GHz for comprehensive signal scanning.
- Precise Drone & Pilot Tracking: Real-time location mapping with ≤10m accuracy.
- FPV Video Interception: Captures and stores analog video feeds for evidence and analysis.
- Multi-Terminal Collaboration: Alarm and detection data pushed to networked devices for team coordination.
- Long-Range Performance: Detect mainstream drones up to 10km, with enhanced DID/RID positioning.
- Flexible Deployment: Ready for man-portable, mobile, or stationary operation.
- Intelligent Analysis: Visual data interface, track playback, and detection logging.
- RID/DID Compliance: Supports remote identification protocols for regulated airspace.
Application Scenarios
Critical Infrastructure Protection (power plants, refineries, communication hubs)
Government & Military Facility Security
Large Public Event & VIP Protection
Border and Coastal Surveillance Operations
Airport and Helipad Perimeter Security
Law Enforcement & Emergency Response
Private Estate and Corporate Campus Defense
Picture image
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory located in Dongguan City, China.
Q: What shipping methods are available?
A: We support all major shipping methods including DHL, UPS, TNT, FedEx, and sea shipment.
Q: What is the typical delivery time?
A: Normal orders ship within 5-7 working days. Bulk orders may require additional time.
Q: Can I customize labels and logos?
A: Yes, we support custom labeling and branding.
Q: What is your minimum order quantity?
A: MOQ ranges from 1 to 20 sets depending on your requirements.
Q: What if I receive a defective product?
A: We maintain strict quality control but will address any issues promptly with replacements or compensation.
