Portable Drone Detector with 12km Detection Range 100MHz-6.2GHz Wideband Detection and 24 Hours Continuous Operation

Brand Name:	LDSK
MOQ:	1 piece
Price:	$16800
Delivery Time:	1-3 workdays
Payment Terms:	D/A,D/P,T/T,Western Union,， Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Model NO.:

LDK-TZ-600A

Waterproof&Dust Proof:

IP65

Chanels:

70-6.2Ghz Full Band Detection

Detection Range:

1~12km (Varies Due To Environment And Drone Model)

Image Capture Range:

1~5KM (Varies Due To Environment And Drone Model)

Packaging Details:

80*80*60CM 40KG

Supply Ability:

5000pcs per month

Highlight:

12km Detection Range Portable Drone Detector

100MHz-6.2GHz Wideband Detection Anti-Drone System

24 Hours Continuous Operation UAV Detection System

Product Description

Why Choose Our Anti-Drone System?

Professional expertise in counter-drone technology
Sincere customer service and support
Prompt responses to all inquiries
Excellent technical team for continuous support
Comfortable purchasing experience

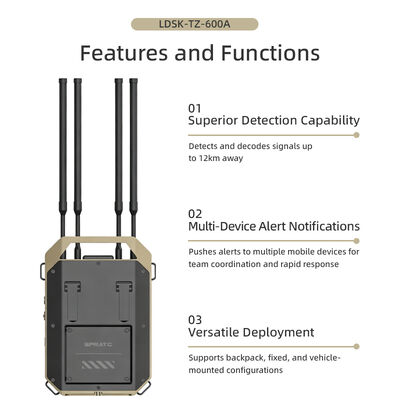

Product Overview

Professional 12KM Counter-UAV System | 100MHz–6.2GHz Wideband Detection & Real-Time Target Positioning with Capture Image Transmission vedio

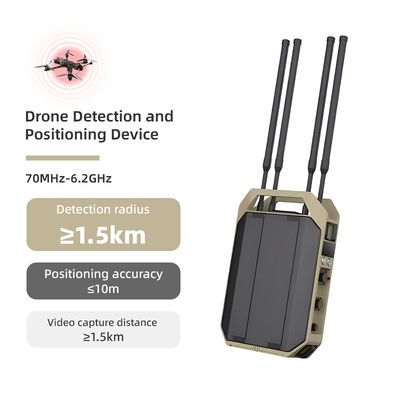

LDK-TZ600A --portable drone detector ,which is a backpack style drone detection device for drone monitoring.

It is used for monitoring drone information such as SN code, model, location (longitude/latitude, azimuth, distance), speed, height, altitude, home spot,controller location(longitude/latitude, azimuth, distance) etc.

It works offline or online (optional). It is easy to carry, deploy, and use via touch screen,works against DJI Mavic, Air, Mini, FPV, Avata series,also Autel,parrot drones,etc.

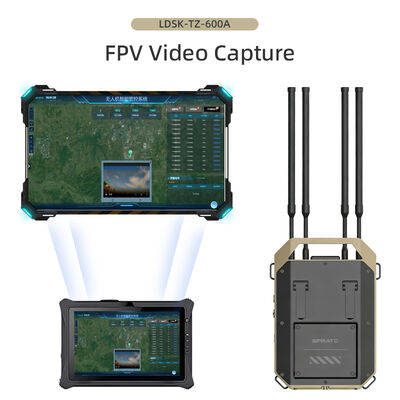

This product can capture analog images.

Parameters

Number	Name	Specifications
1	Identification types	Supports mainstream drones such as DJI, Autel, Hubsan, as well as FPV racing drones and DIY drones
2	Frequency range	Supports customizable scanning from 70 MHz to 6.2 GHz. Default detection bands: 400 MHz, 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz (other bands can be customized)
3	Positioning models	Full range of DJI drones, selected models from Autel
4	Detection range	≥10 km for mainstream drones, ≥2 km for FPV drones
5	DID/RID positioning range	DID≥10km,RID≥3km
6	Positioning accuracy	≤10 m
7	FPV video signal detection	Supports analog video transmission detection within the 500 MHz – 6 GHz band (customizable)
8	Detection radius	≥1.5 km (line-of-sight, clean electromagnetic environment)
9	Video capture distance	≥1.5 km (line-of-sight, clean electromagnetic environment)
10	Detection response time	≤3 s (8 frequency bands); ≤5 s (12 frequency bands)
11	Power supply	Lithium battery powered
12	Battery life	≥6 hours (main unit)
13	Device weight	≤8 kg
14	Device dimensions	343 mm × 230 mm × 86 mm (L × W × H)
