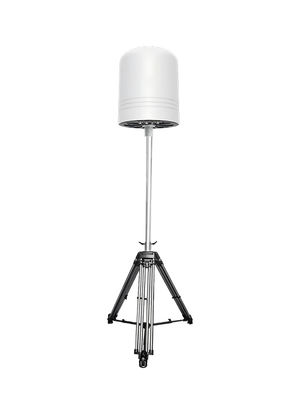

Fixed Drone Detector with 360° Passive Detection 24/7 Operation and Multi Station Networking for UAV Spectrum Monitoring

Fixed Drone Detector with 360° Passive Detection 24/7 Operation and Multi Station Networking for UAV Spectrum Monitoring

Brand Name:	LDSK
MOQ:	1 piece
Price:	$23500-$27000
Delivery Time:	5-7workdays
Payment Terms:	D/A,D/P,T/T,Western Union,， Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Model NO.:

LDSKXM

Working Mode:

RF Sensing

Detection Frequency Band:

100MHz～6GHz

Detection Mode:

360°Passive Detection

Range:

1～10km

Drone Module Can Be Located:

Multi Station Networkomh Cam Realize TDOA Mukti-model Precise Positioning, Trajectory Tracking And Other Functions.

Packaging Details:

590mm (L) × 490mm (W) × 270mm (H) 20kg

Supply Ability:

500pcs per month

Highlight:

360° Passive Detection Drone Detector

24/7 Operation UAV Spectrum Detector

Multi Station Networking Fixed Drone Detector

Product Description

Product overview

Drone detection--LDSKXM

The UAV Detector is a portable UAV monitoring equipment in the form of a suitcase, interfrating software and hardware. Throgh in-depth analysis and data mining of UAV signals, this equipment can realize detection range, serial number, model, position,speed, height,altitude, take-off point,return point, and track of the drone within the range and real-time detection of mulyi-dimensional information such ad the polit’s position. It can be used as a stand-alone machine or connected to the Internert, can can be deployed in the seconds.

Performance parameter

N.O.	Project	Parameter	Remarks
1	Detection frequency band	100MHz～6GHz
2	Detection distance	1～10km
3	Number of detection targets	≥5 sorties	meanwhile
4	Detection mode	360°Passive detection
8	Positioning accuracy	≤10m
11	Number of positioning trajectories	≥5 sorties	meanwhile
13	Drone module can be located	Multi station networkomh cam realize TDOA mukti-model precise positioning, trajectory tracking and other functions.
14	Detecting and identifying drone models	Common brands of drones such as DJI, Autel, Fimi, Dahua, and Yuneec, as well as most domestically produced models such as walkthrough and WiFi machines on the market

Product Technical Speficication

Drone monitoring: Capable of obtaining information such as serial number, model, position (longitude, latitude, azimuth), speed, altitude, takeoff point, return point, trajectory, remote control position (longitude, latitude, azimuth), etc. of unmanned aerial vehicles within the monitoring range.
Unique ID identification: Identify the unique serial number of the drone and confirm its unique identity information.
UAV positioning: Positionable drone position information, real-time display of drone position (longitude and latitude), azimuth information, and distance information (the distance of the drone relative to the location of the device).
Flying hand positioning: Positionable pilot position information, real-time display of pilot (remote control) position (longitude and latitude), azimuth information, distance information (the distance of the pilot relative to the position of the device).
Multi target trajectory tracking: Capable of locating and tracking drone swarms, while displaying multiple drone flight trajectories.
Black and White List: Distinguishable between cooperative and noncooperative drones, with no alarm provided by the device when detecting cooperative drones, and trust labeling for cooperative drones.
Intrusion alarm: When the device detects a drone intrusion, it will issue an audible or visual alarm.
Track playback: Support drone flight trajectory playback and assist security personnel in analyzing historical drone flight data.
Detection record: The detection record list can preserve historical detection records, including multidimensional information such as drone serial number, model, frequency, etc.
Data and information visualization analysis: Support UAV detection and flight data statistical analysis, which can be presented through thermal diagram, Line chart and other visual icons.
Electronic map: Electronic map switching, including Gaode, Bing, Baidu, Google, etc.
Multiunit network: The devices can be connected to the backend control platform through networking, and the multi unit network can meet the needs of large area coverage;
Inspection and strike linkage: Capable of collaborating with countermeasures or deception devices to strike drones;
Multiple device networking: The equipment can be networked with TDOA equipment to detect and locate drones, improving positioning accuracy and breadth.

Product Features

All detection models: The system can identify and detect common brands of drones such as DJI, AUTEL, Dahua, and Haoxiang, as well as the vast majority of models on the market such as self-made traversing machines and WiFi machines.
Long detection distance: In an open environment, some models can detect distances of over 10km.
Passive detection: The device does not emit any electromagnetic signals, has no electromagnetic environmental pollution, and is environmentally friendly.
Comprehensive protection: The equipment operates continuously day and night throughout the day (7 * 24 hours), 24 hours a day (suitable for complex electromagnetic environments and harsh weather environments), and provides comprehensive (360° detection of drone intrusion) security in the core area.
Fixed installation: The equipment adopts a fixed structural design, which can be installed and used outdoors for a long time.

Customization

Item	Logo	Frequency	Power	Packing
MOQ(PCS)	1	1	1	1

Product Technical Speficication

Quantity(PCS)	<10pcs	<50	50-100	>1000
Lead time(Days)	7	15	15-20	To be negotiated

Company profile

Packing and Delivery

FAQ

1.Why Choose us?

We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2.What is the process of placing an order?

First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.
