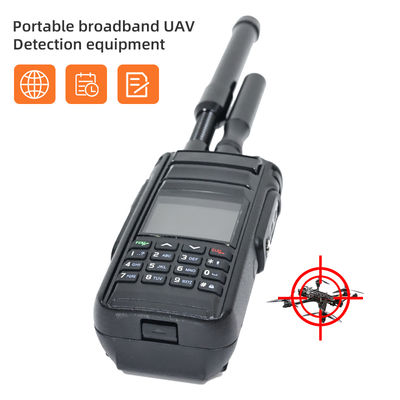

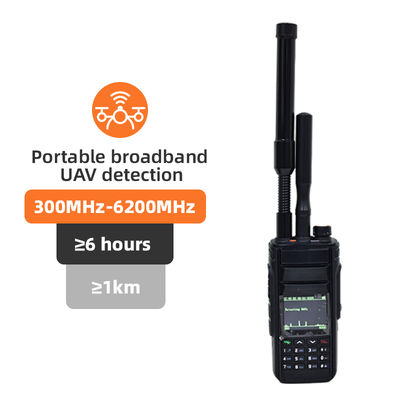

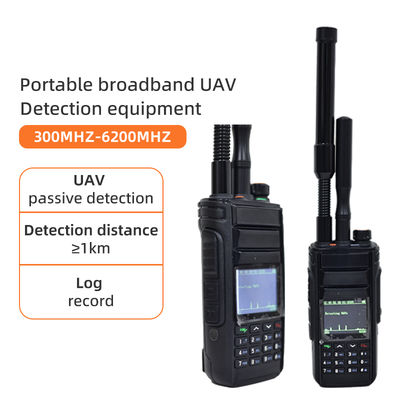

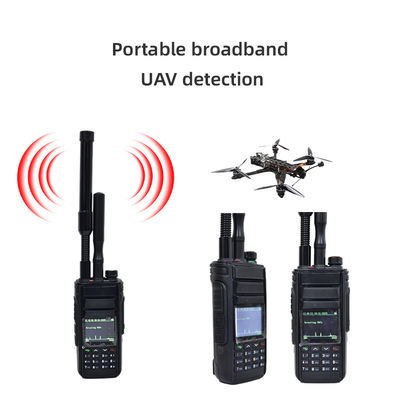

LDKW07 Lightweight Portable Drone Detector with High Sensitivity and Long Battery Life for UAV Detection

Product Overview

The LDKW07 Portable Broadband UAV Detection Equipment is a lightweight, highly integrated drone detector built for rapid, reliable detection of mainstream rotary-wing drones (DJI, Docom) and DIY FPV drones. It passively scans a very wide frequency range (300 MHz–6200 MHz), supports multi-channel simultaneous scanning with dual antennas, and delivers fast detection, high sensitivity, long range, and a low false-alarm rate — all in a compact, easy-to-use package.

Key Benefits (Why choose LDKW07)

• Wideband coverage: detects both OFDM HD image transmission and FM analog FPV transmissions across 300–6200 MHz.

• Long detection distance: reliably detects drones at ≥1 km under typical conditions.

• High sensitivity: detection sensitivity better than -96 dBm for weak signals.

• Portable and durable: light (≈500 g) with removable lithium battery and type-C charging — 6+ hours runtime per battery.

• Fast, flexible scanning: default scanning, key frequency band scanning, and user-defined feature library.

• Low false alarms: multi-channel scanning + dual antenna design reduces false positives.

• Easy records & export: alarm log (≥500 records) and firmware/feature updates via MicroUSB.

• Multi-language UI: English, Chinese, Russian.

Main Functions & Features

• Passive UAV detection: Identifies OFDM HD image transmission used by mainstream consumer drones and FM analog image transmission used by many FPV systems.

• Multi-mode scanning: Default mode, key band scan, and custom feature-library scanning (user can modify/add via USB).

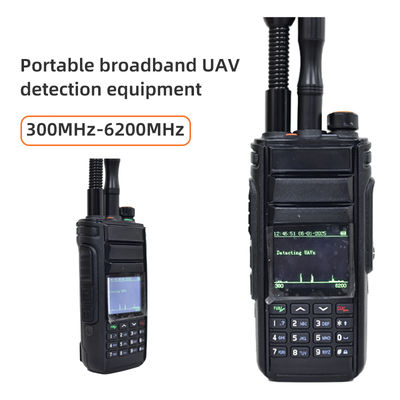

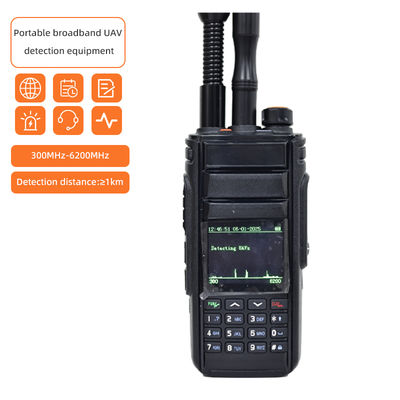

• Real-time spectrum display: Visualize signal strength across 300–6200 MHz.

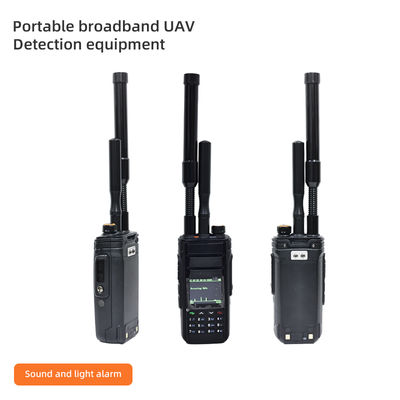

• Alarm methods: Headphone alarm, external sound & light alarm; headphone audio output supported.

• Data & upgrade: Alarm log export and firmware upgrade via MicroUSB.

• Field usability: Low power consumption design, compact dimensions, and easy operation for security teams or mobile patrols.

Technical Specifications
